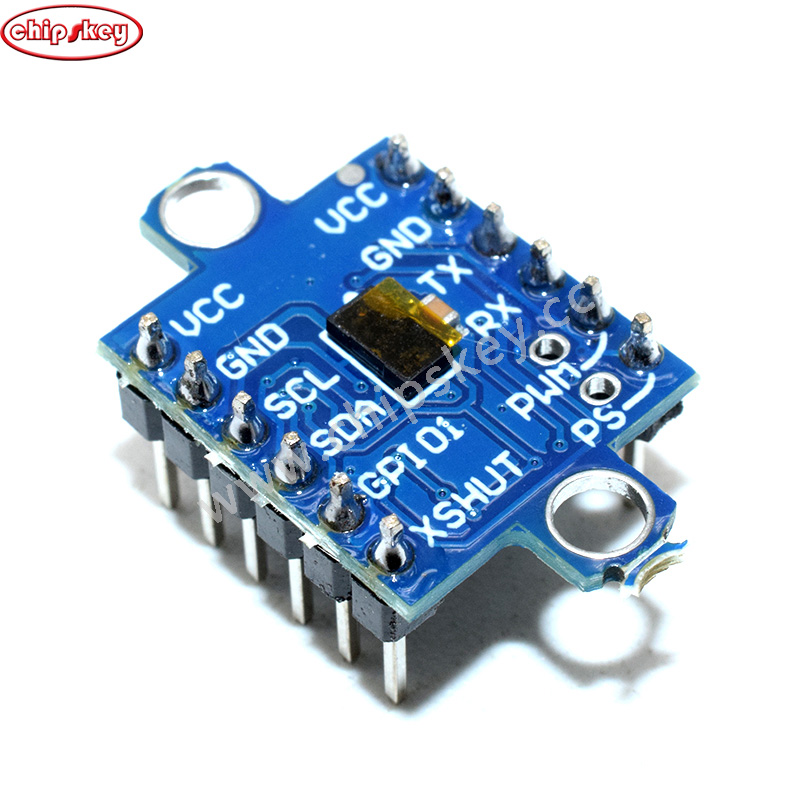

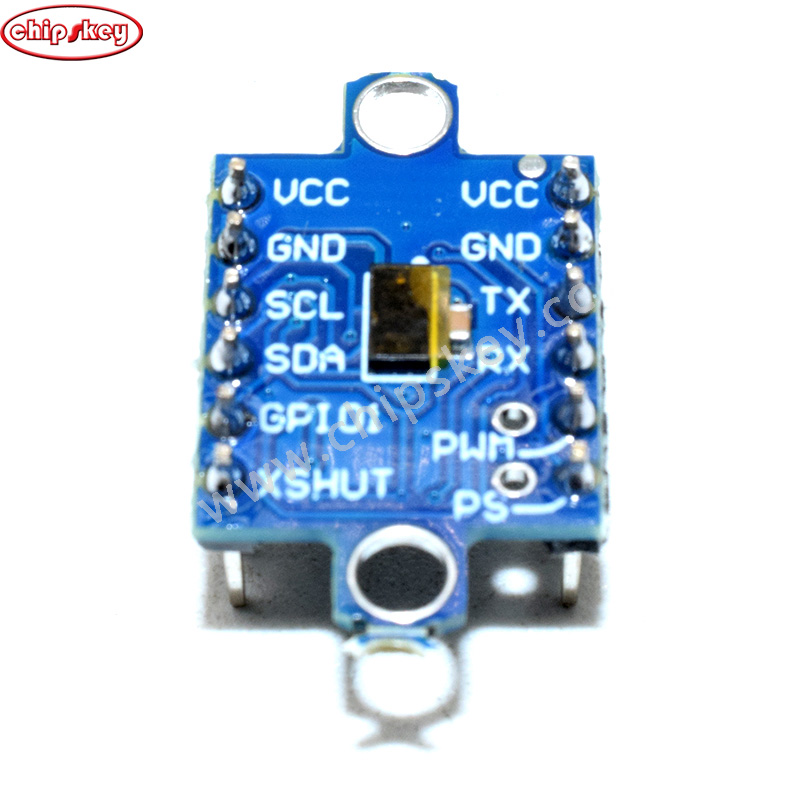

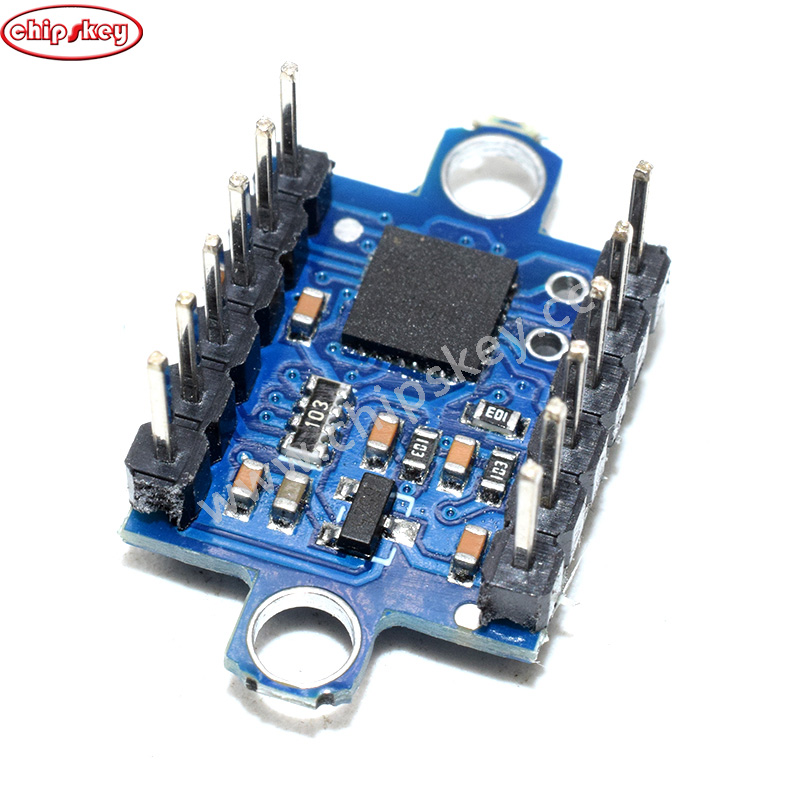

World smallest Time-o f-Flight (ToF) laser ranging sensor GY-530 VL53L0X

The worlds smallest flight time (ToF) laser range finder GY-530 VL53L0X Use chip: VL53L0X + STM32 Power: 3-5v (internal low-voltage regulator) Range: 2 meters (dark, long distance mode) Size: 25mm * 15.6mm (including mounting holes) Communication: Serial output, PWM output, IIC output of the chip itself. Use pwm to provide serial read data code: stm32, arduinos, 51 microcontroller. Provide PC display distance software, direct connection with the usb switch ttl module, view the data with the computer. The default is not to solder the pin Please note that because the infrared light is affected by external light, the light will affect the maximum range of the measurement without affecting the measurement accuracy. Default configuration: serial port baud rate 9600, automatic output, high-precision mode.
