WIFI232 Eval Kit WIFI232 WIFI To UART Module WIFI232-B Convertor Module Development Board Evaluation Kit

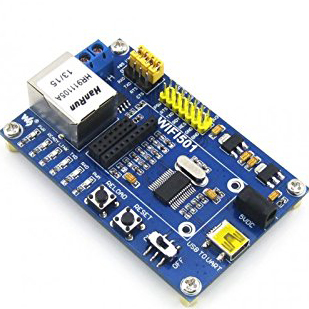

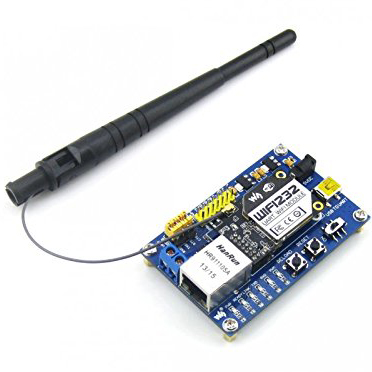

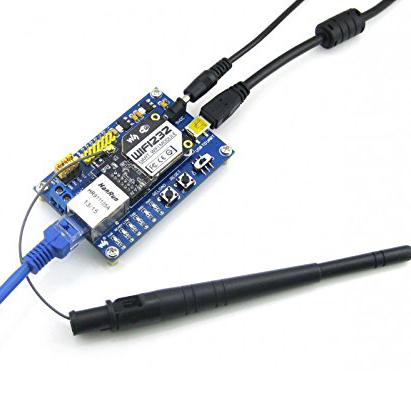

product description Overview The WIFI232 Evaluation Kit is a WiFi evaluation kit that includes a converter module WIFI232-B and a motherboard WIFI501 for testing / evaluation. feature Onboard: USB to UART interface, overloaded button, LED indicator, reset button, RJ45 Ethernet interface, RS485 interface Indicators: Power, Ready, Link, RXD, TXD, PWM Powered by DC 5V Provide TCP / IP host example Delphi / Borland C + +) how to use Reload button: Power on, hold down (> = 3s) and release to reset the module to factory settings Ready light: Lights when the WiFi module is successfully started up Link indicator: can be used with WIFI232 series modules, the indicator lights when the network connection is detected PWM LED: When used with the WIFI-LPT100 module, the LED brightness will change and the PWM output will be enabled Release list: 1 * WIFI232-B 1 * WIFI501 1 * External antenna 1 * USB Type A plug to mini-B plug cord 1 * 5V power adapter
