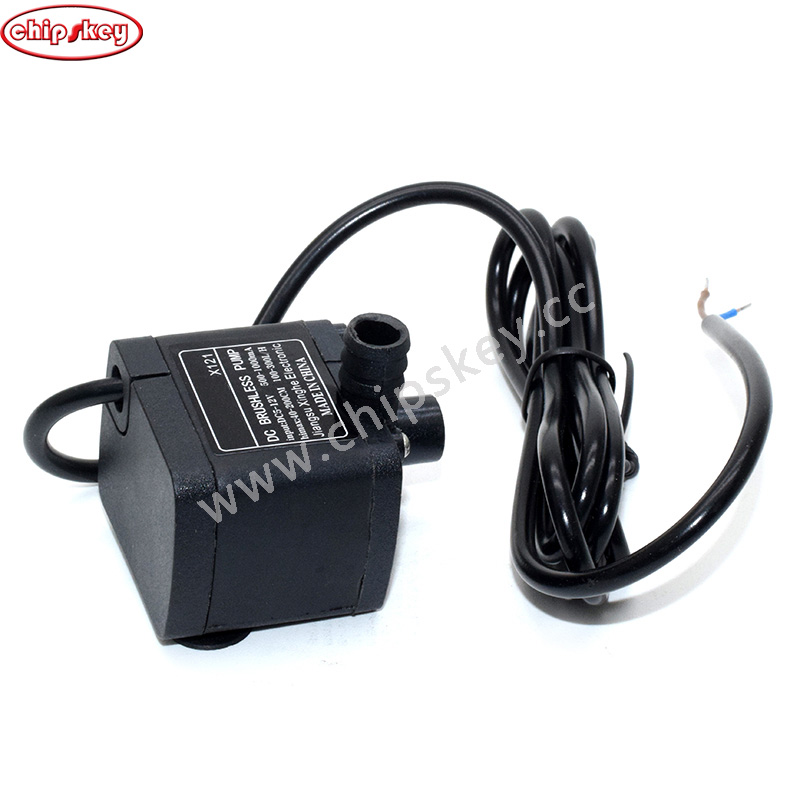

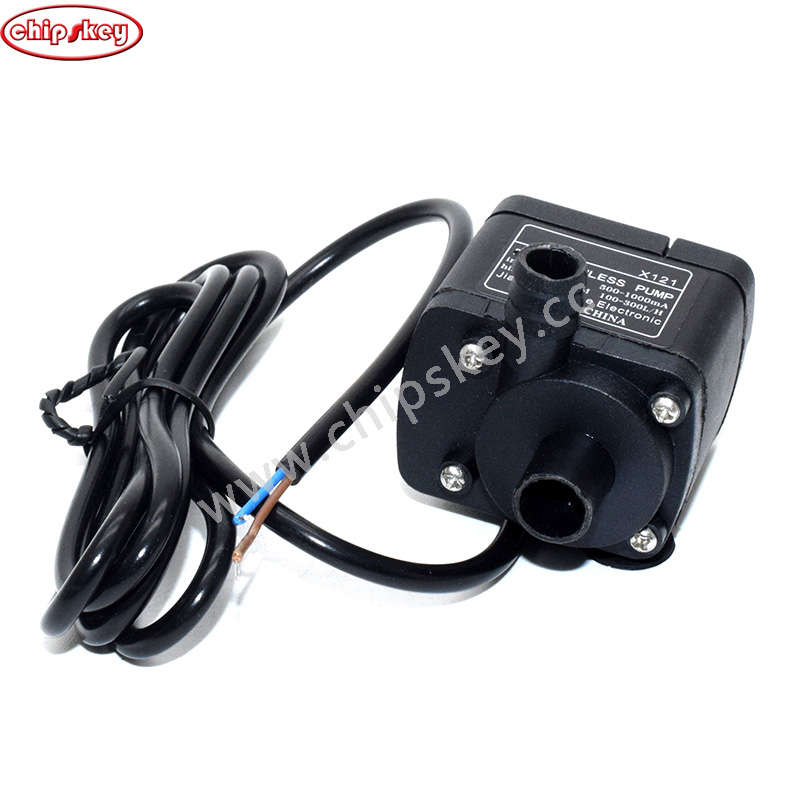

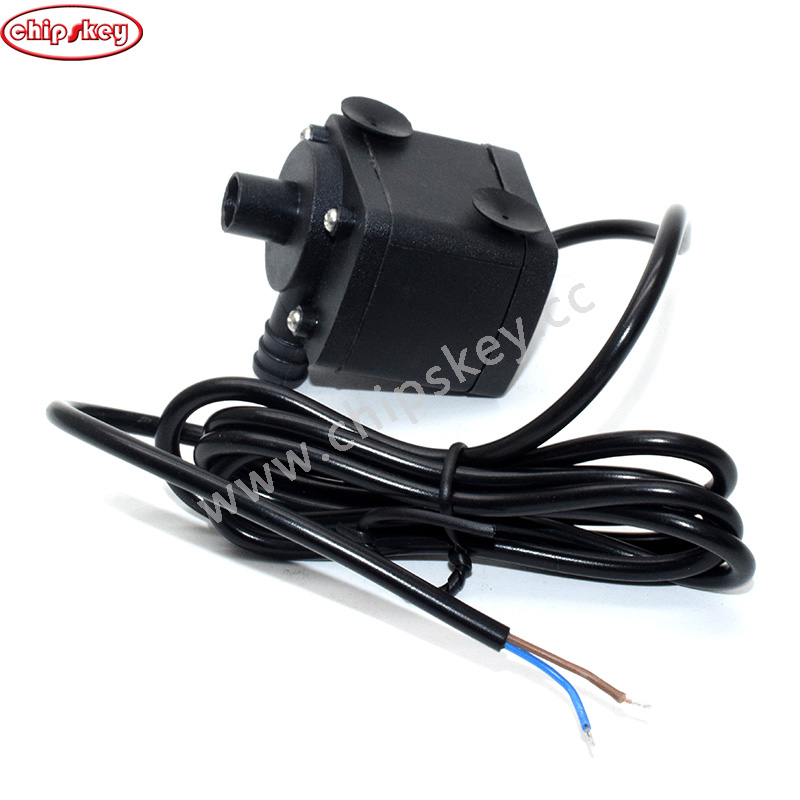

Product Name: DC Brushless Water Pump
Power supply voltage: DC5V~12V
Working current: 500~1000mA
Water spray head: 40-200CM
Water flow rate: 100-300 liters/hour
Power cord length: about 0.9 meters
Shock absorbing foot pads: 2 pieces

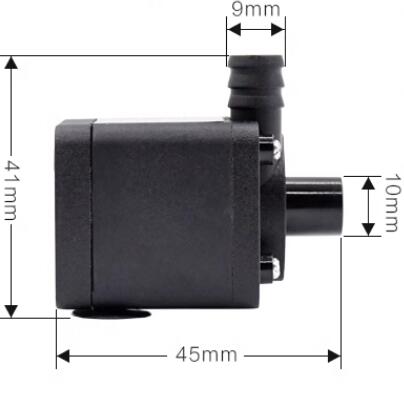

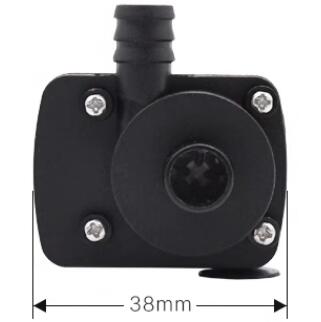

Appearance size: 45 * 41 * 38mm
Net weight of product: 80g
Before use: This water pump is strictly prohibited from operating at an overpressure (12V). Before use, please make sure to confirm whether your power supply is suitable.
1. AC power supply: Routers, broadband cat power supplies, and many similar devices are AC output and cannot be used
Ripple problem (where problems are prone to occur): Many DC transformers use half wave rectification, resulting in direct current
There are many communication components mixed in, and the water pump is easy to break! Brushless water pumps must be full wave rectified!
A 12V battery with a capacity of 2.5AH or above will have a voltage exceeding 15V when fully charged, which can easily cause the water pump to burn out
Pressure limiting measures must be loaded!
Head issue: A head of 2 meters does not mean that it can spray 2 meters high when connected to the power supply, but rather indicates that the water outlet is connected to water
The vertical height of the water column in the water pipe after the pipe. The injection height is much lower than the lift!
