WEMOS Mega +WiFi R3 ATmega2560+ESP8266 (32Mb memory), USB-TTL CH340G. Compatible for Arduino Mega, NodeMCU, WeMos ESP8266
  • WEMOS Mega +WiFi R3 ATmega2560+ESP8266 (32Mb memory), USB-TTL CH340G. Compatible for Arduino Mega, NodeMCU, WeMos ESP8266
  • WEMOS Mega +WiFi R3 ATmega2560+ESP8266 (32Mb memory), USB-TTL CH340G. Compatible for Arduino Mega, NodeMCU, WeMos ESP8266
  • WEMOS Mega +WiFi R3 ATmega2560+ESP8266 (32Mb memory), USB-TTL CH340G. Compatible for Arduino Mega, NodeMCU, WeMos ESP8266

WEMOS Mega +WiFi R3 ATmega2560+ESP8266 (32Mb memory), USB-TTL CH340G. Compatible for Arduino Mega, NodeMCU, WeMos ESP8266

  • SKU: 33004
  • Shipping Weight: 70g
750:viewed
US$10.45
  (9950 Pieces available)
  • Description
  • Customer Reviews
  • Payment & Shipping

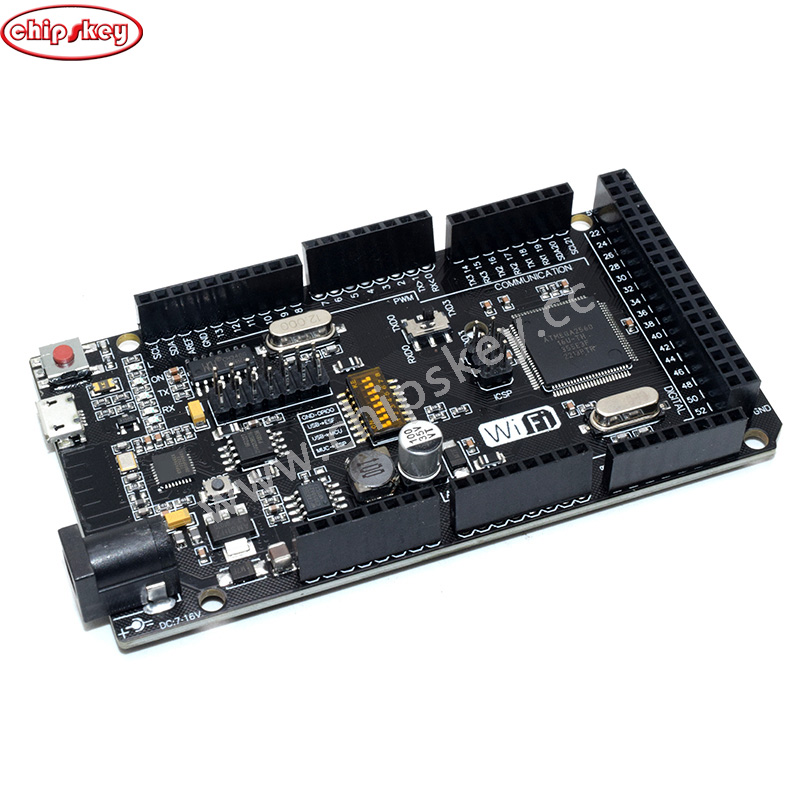

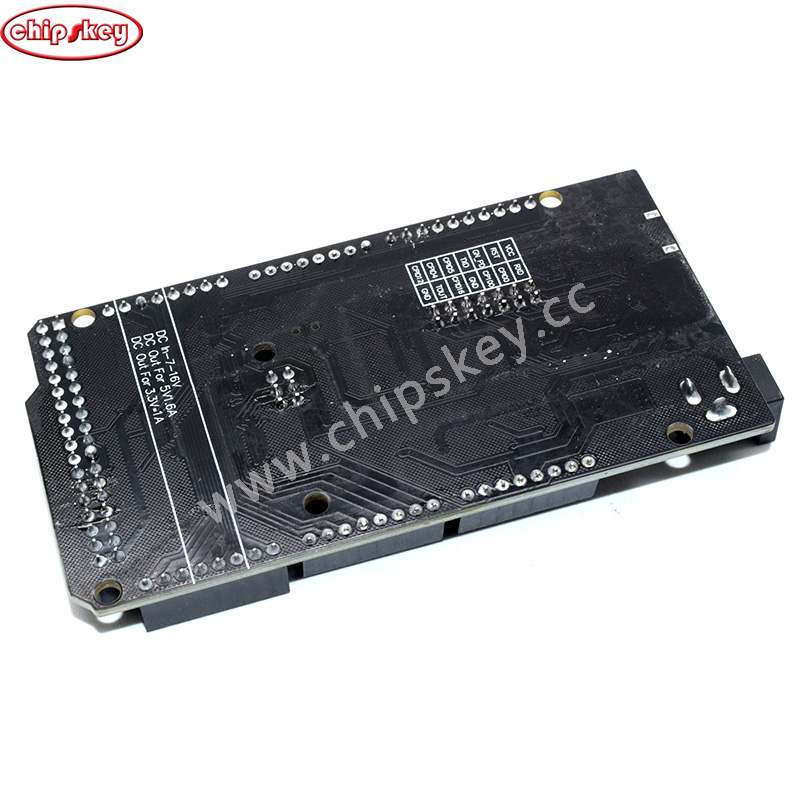

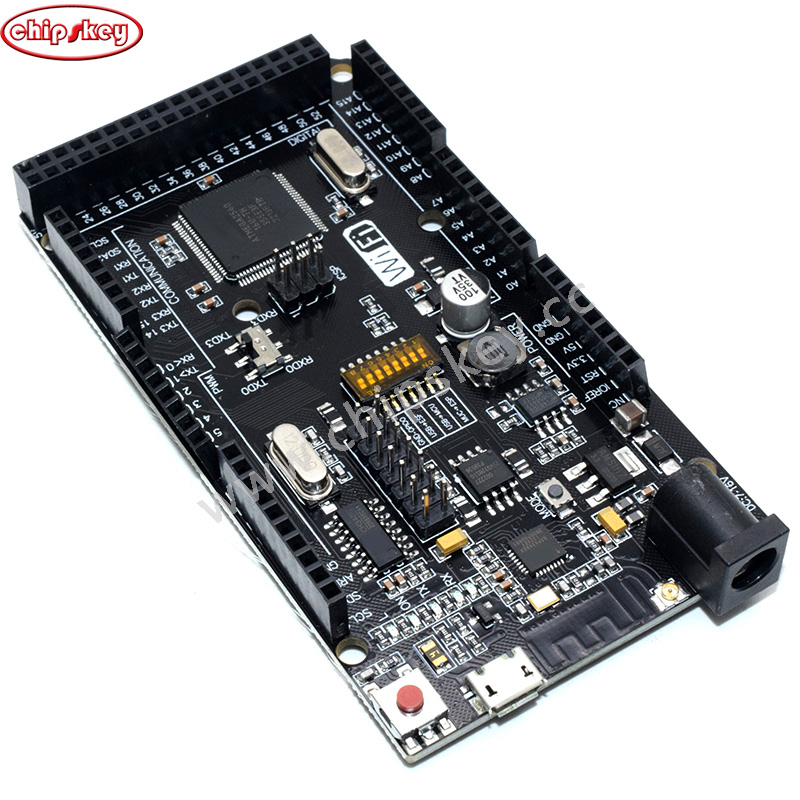

Product description WEMOS Mega +WiFi R3 ATmega2560+ESP8266 (32Mb memory), USB-TTL CH340G. Compatible for Arduino Mega, NodeMCU, WeMos ESP8266




Connection

DIP



1

2

3

4

5

6

7

ATmega2560<->ESP8266

ON

ON

OFF

OFF

OFF

OFF

OFF

USB <->ATmega2560

OFF

OFF

ON

ON

OFF

OFF

OFF

USB<->ESP8266 (Update firmware or sketch)

OFF

OFF

OFF

OFF

ON

ON

ON

USB<->ESP8266 (communication)

OFF

OFF

OFF

OFF

ON

ON

OFF

All independent

OFF

OFF

OFF

OFF

OFF

OFF

OFF



Special solution:

USB <->ATmega328<-> ESP8266



DIP

SWITH 2

Connection

1

2

3

4

5

6

7



USB <-> ATmega2560<-> ESP8266

ON

ON

ON

ON

OFF

OFF

OFF

To RXD3/TXD3

  • ·         USB converter CH340G connect to RX0/TX0 of ATmega2560

  • ·         ESP8266 connect to RX3/TX3 of ATmega2560






Choose a ranking for this item. 1 star is the worst and 5 stars is the best.

*

NOTE: HTML tags are not allowed.
NOTE: Reviews require prior approval before they will be displayed
