Voltage: 3.3V / 5V; Current: <20mA; Output voltage: 0~2.3V (2.3V voltage value is completely soaked in water), 5V power supply, the greater the humidity, the greater the output voltage; Sensor types: analog output. Packing: electrostatic bag. Sealing interface definition: 1 foot signal, 2 feet, the power is 3 feet. Service life: about 1 year(surface plating processing, strengthened the electrical conductivity and corrosion resistance). Dimensions & Weight Dimensions 6.6 cm x 2 cm x 0.7 cm Weight 5 g

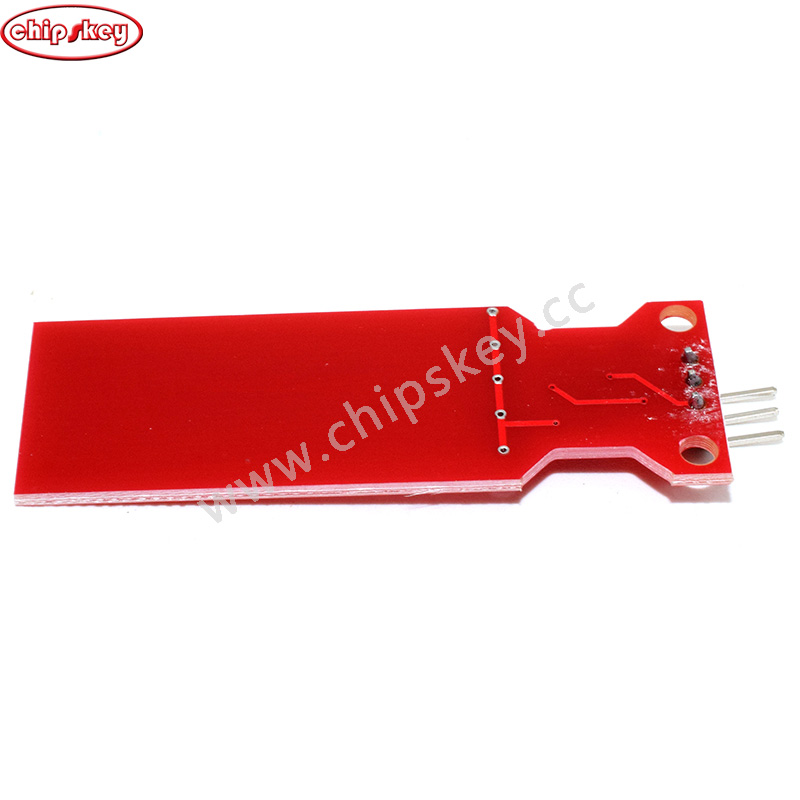

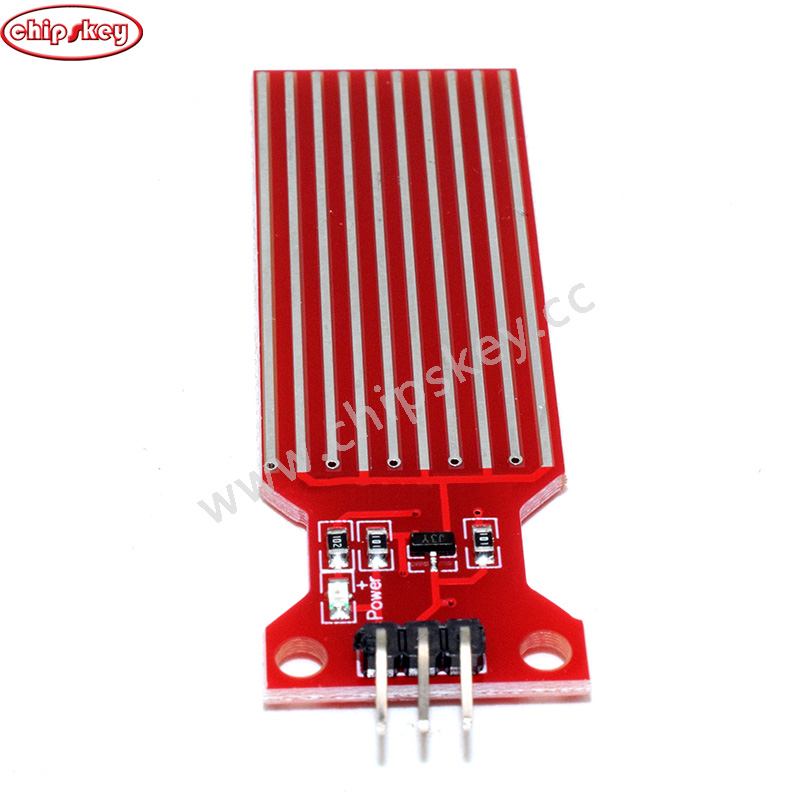

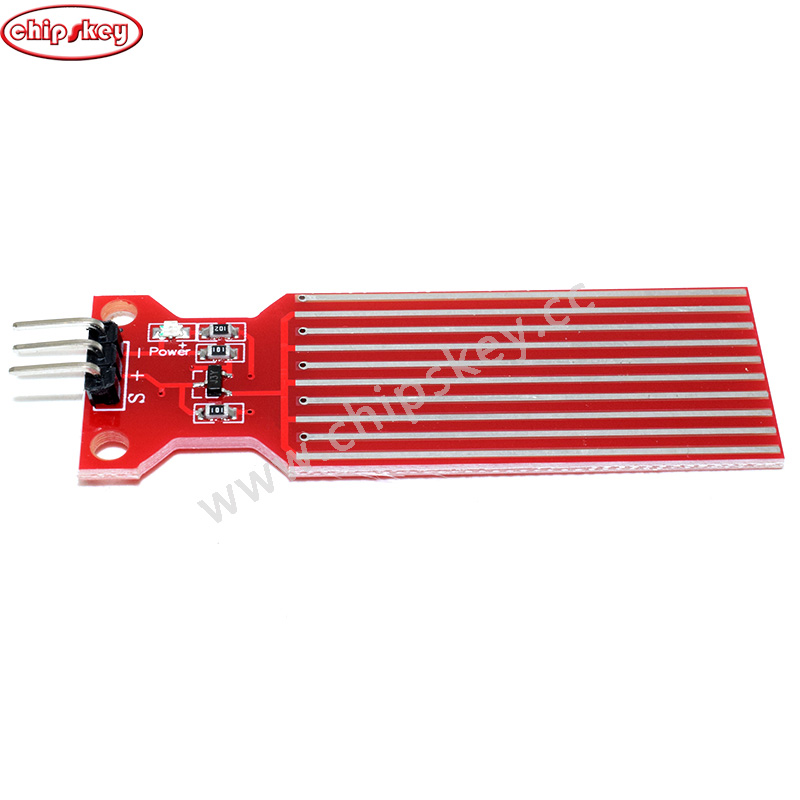

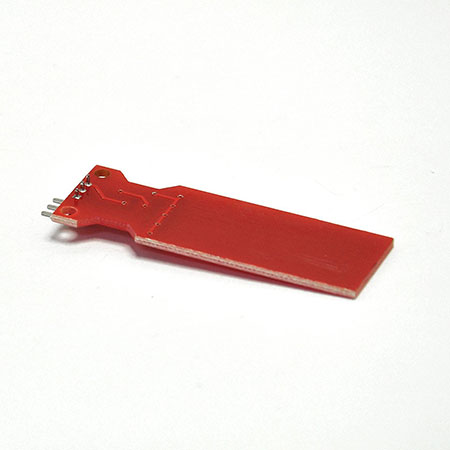

The Water Sensor water level sensor is a simple, easy-to-use, cost-effective water level/droplet identification and detection sensor. It uses a series of exposed parallel wire traces to measure the size of the water drop/water volume to determine the water level. Easily complete the conversion of water volume to analog signal to achieve the effect of water level alarm. Specifications: Product name: water level sensor Working voltage: DC3-5V Working current: less than 20mA Sensor type: analog Detection area: 40mm x 16mm Production process: FR4 double-sided spray tin Working temperature: 10℃-30℃ Working humidity: 10%-90% non-condensing Product weight: 3.5g Product size: 62mm x 20mm x 8mm Packing method: electrostatic bag sealed
