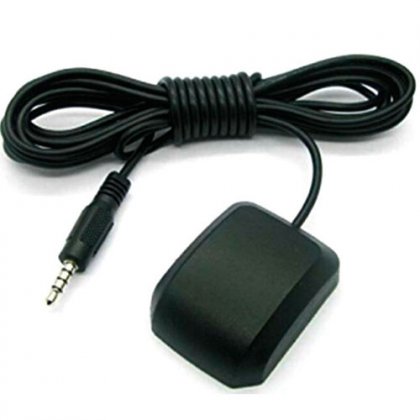

Vk-163 G-mouse Headphone Wire Interface GPS Receiver GPS Module Tachograph

VK-163 G-MOUSE Gmouse headset line interface GPS receiver GPS MODULE driving recorder ? ? description: ? 3.5MM headphone cable G-MOUSE satellite receiver, is a complete GPS receiver. Built-in satellite receiving antenna, and the most advanced satellite receiver core, with a full range of functions. ? application: ? Car navigation, car alarm, bus station, car DVR, car video surveillance, car DVD navigation, DVR, car audio, car displays, car terminal, tracking, security systems, personal positioning, measurement, agriculture, etc. ? parameter: ? The main chip: C / A code, 1.023MHz stream ??Reception frequency: L1 [1575.42MHz] ??Tracking Channel: 50 ??Support DGPS [WAAS, EGNOS and MSAS] ? ??Positioning performance ??2D plane: 5 meters [average] ??2D plane: 3.5 m [average], DGPS aided. ??Drift: <0.02m / s ??Timing accuracy: 1us ??Reference coordinate system: WGS-84 ??The maximum elevation: 18000 meters ??Maximum speed: 500m / s ??Acceleration: <4g ? ??Electrical properties: ??Tracking sensitivity: -160dBm ??Acquisition sensitivity: -146dBm ??Cold start time: 32s [average] ??Hot start: 32s [average] ??Hot start time: 1s [average] ??Capture time: 0.1s [average] ? ??Operating temperature: ??-30 degrees to +80 degrees ? ??Package Size: ??49 * 38 * 16mm; ??Cable length 2m Baud rate: 9600bps data
