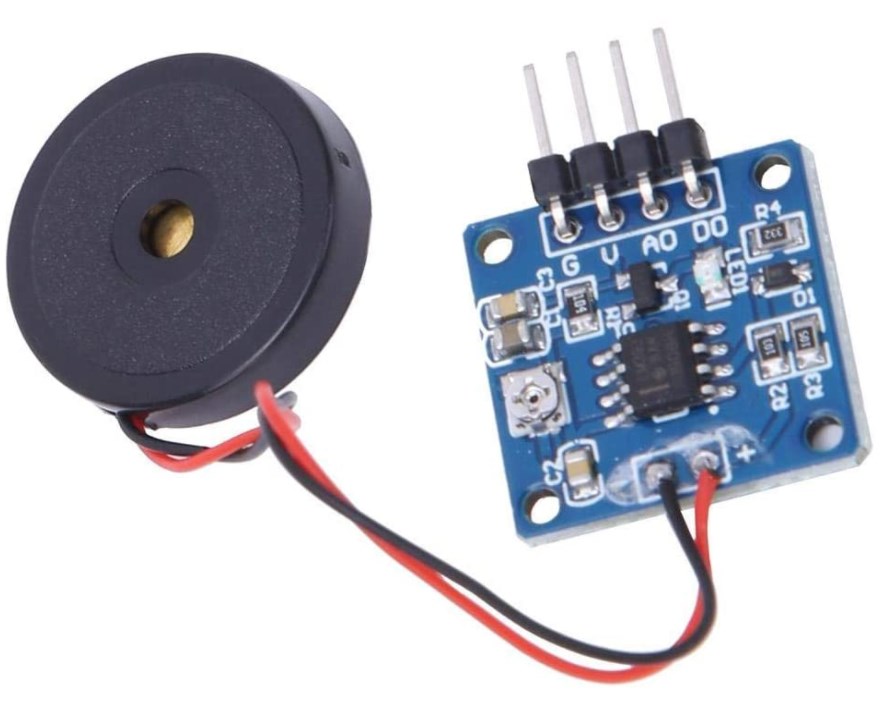

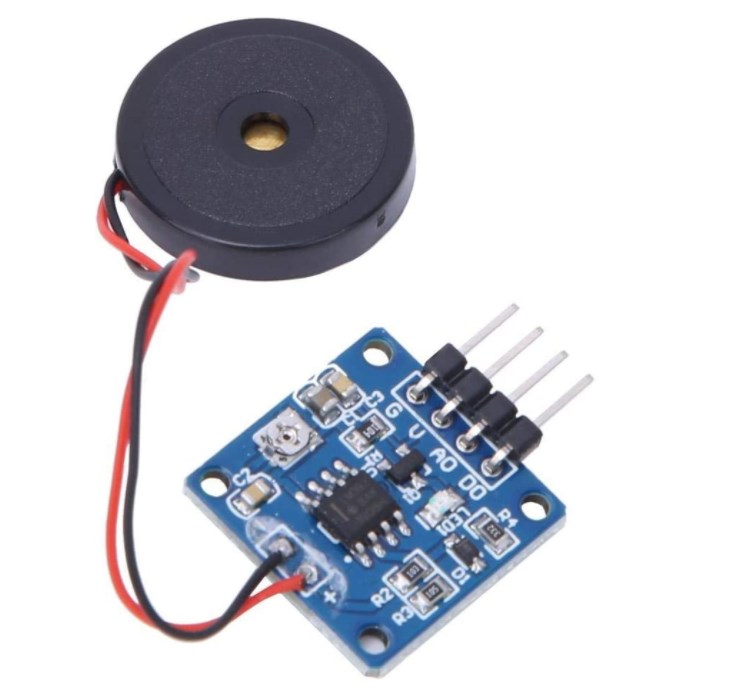

Vibration Switch Module 5.0V DC AD/DO 0.8 x 0.8in Piezoelectric Vibration Tapping Sensor Module



  • An analog vibration sensor based on a piezoelectric ceramic sheet is an inverse transformation process that uses piezoelectric ceramics to generate vibration. When the piezoelectric ceramic piece vibrates, an electrical signal is generated.
  • Special sensor expansion boards are used in combination, and analog ports can be weakly perceived. Vibrating electrical signals enable interactive work related to vibration, such as electronic drum interactions.

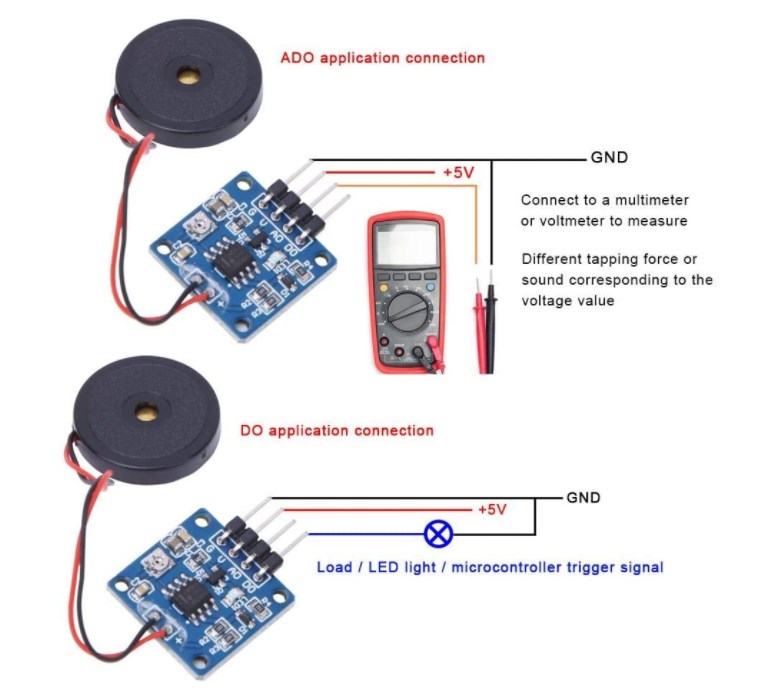

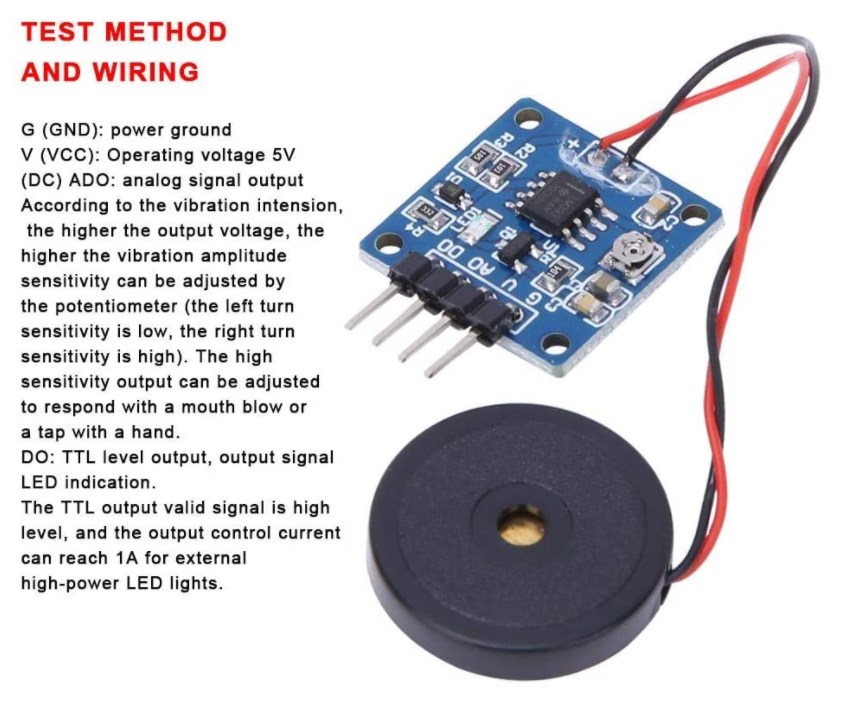

  • ADO output: The analog voltage ceramic vibration sensor is connected to the controller analog terminal A0 according to the program. When the vibration degree is different, observing the output value of the serial port can realize the vibration-related in
  • According to the greater the vibration intension, the higher the output voltage, the sensitivity of the vibration amplitude can be adjusted by the potentiometer.
  • This product has high sensitivity and can be adjusted to respond with a mouth blow or an output with a hand tap (Low turn sensitivity is low, right turn sensitivity is high).
