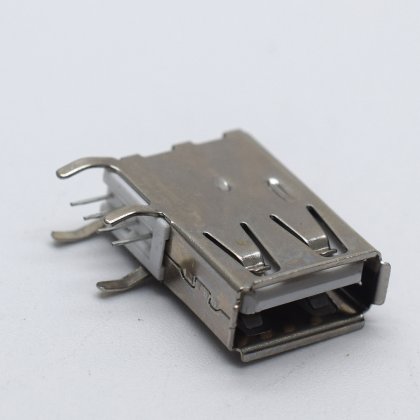

USB A female side plug long body type A 90 degree USB side plug
Specifications:
Color:White
Rated Current:1.5A
Rated Voltage:30V
Insertion Force:35N Max
Durability:3000 Cycles Min
Rubber Core:PBT / Icp Ul94V-0
Resistance To Voltage:500V Ac Min.
Insulation Resistance:1000MΩ Min
Pull-Out Force:10N Min.Initial 8-20N After
Working Temperature:-20 Degrees To 60 Degrees
Contact Impedance:30MΩ Max.Initial.40MΩ Max
Terminals:Brass C2680,Nickel Base,Gold-Plated 1 u,
