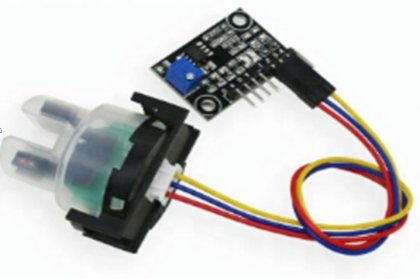

Turbidity detection sensor kit liquid suspended particle sewage turbidity water quality monitoring module
Description:
working voltage: DC5V
working current: 30mA (MAX)
Detection range: 0%~3.5% (0-4550NTU)
response time: <500ms
insulation resistance: 100MΩ [Min];
output mode 1: analog output 0-4.5V
output mode 2: high / low level signal
High level: 5V
Low level: 0V
operating temperature: -30 ° C -80 ° C;
storage temperature: -10-80 ° C.
weight: 55g
size: 30mm * 20mm * 12mm
