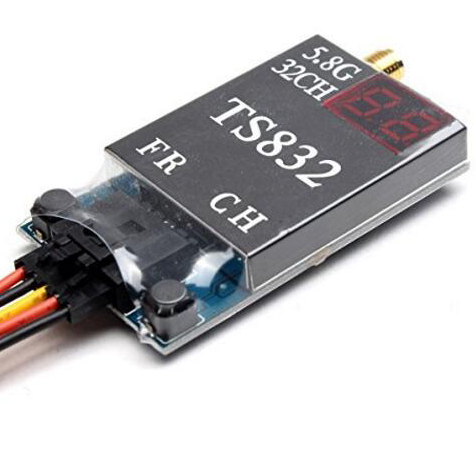

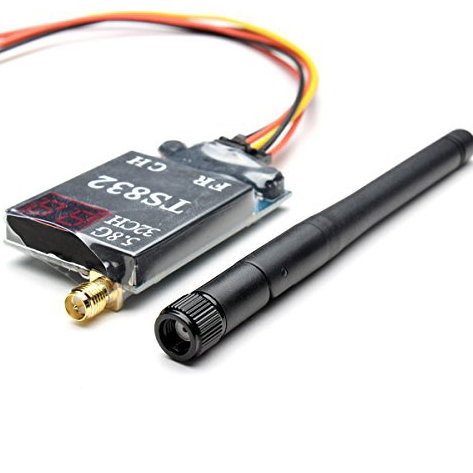

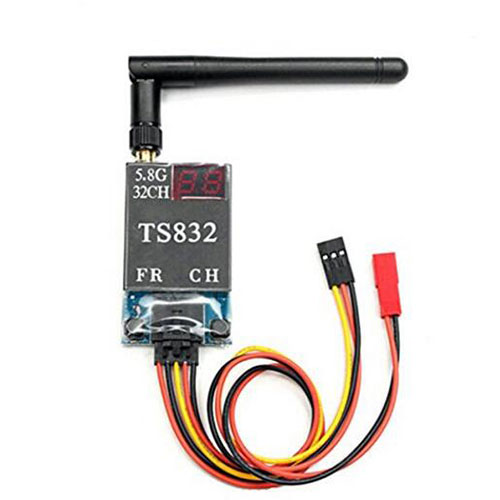

TS832 12V 32ch 5.8ghz 600mw 5km Wireless Av Tx FPV Transmitter

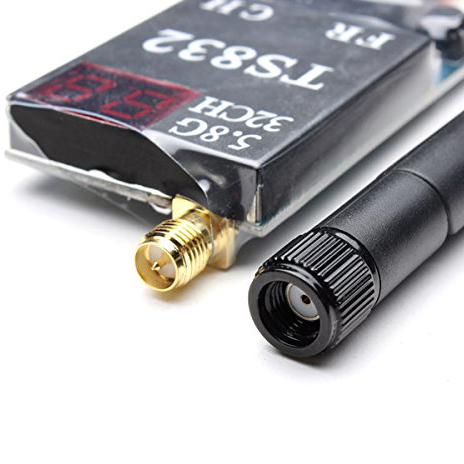

TS832 12V 32ch 5.8ghz 600mw 5km Wireless Av Tx FPV Transmitter Transmitter Receiver Interface: SMA External Lo Pin. CH button for channel switching, FR button for band switching. Antenna Interface Requirements: SMA female screw hole The original antenna without blocking distance 1-2km, the transmitter mushroom antenna, the receiver can be achieved by using 14DB 5.8G 5-6KM distance: Launch frequency: 5.8G Transmit power: 600MW hair RF point: 32 points Input voltage: 7-16V Antenna Connector: Jack RP-SMA Antenna Plus RP-SMA Antenna gain: 2dB Working current: / 12V 220mA Operating temperature: -10-85 Video format: NTSC / PAL automatically Video bandwidth: 8M Audio bandwidth: 6.5M
