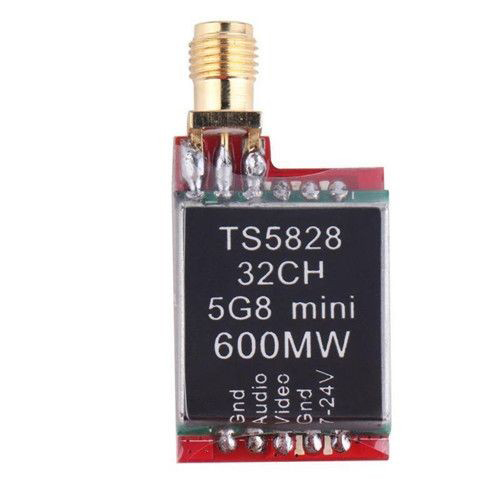

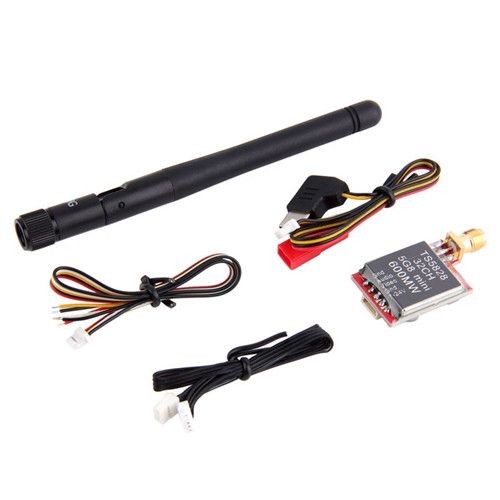

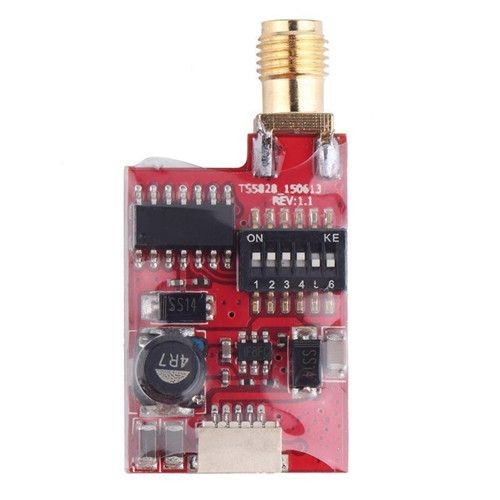

TS5828 5.8GHz 600mW 32CH FPV Wireless Audio Video AV Transmitter 1.5km Range

The transmitter packages ultra-clean 600-mW 5.8-GHz power into a miniature video / audio transmitter! This is necessary for those who want to maintain their size and weight while still achieving good performance. Transmitter is transmitting a full range of 32 channels, weighs only 7.3 grams. It is suitable for a wide range of aircraft, especially small and multi-rotor models 250-350! Technical Parameters Transmission frequency 5.6-5.9GHz Input voltage 7-24V transmission power 600mw Working currency 190mA / 12V Operating temperature -10 degrees Celsius -85 degrees Celsius Video bandwidth 8M Audio encoder 6.5M Net weight 7.3g Product Size: 30 × 20 × 8mm (not including the antenna base) Antenna mode: Transmitter: RP-SMA jack; Antenna terminal: RP-SMA plug The image transmitter supports 4 bands and 32 channels and is compatible with all current transmitters. The details are as follows: Group A (CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8): 5865MHz 5845MHz 5825MHz 5805MHz 5785MHz 5765MHz 5745MHz 5725MHz Group B (CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8) 5733MHz 5752MHz 5771MHz 5790MHz 5809MHz 5828MHz 5847MHz 5866MHz Group E (CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8) 5705 MHz 5685 MHz 5665 MHz 5645 MHz 5885 MHz 5905 MHz 5925 MHz 5945 MHz Group F (CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8): 5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 5880MHz Note: The antenna must be plugged in to prevent the transmitter from burning out before turning on the power. Package includes: 1 × YKS 5.8G 32CH 600mw transmitter 1 × antenna 1 × cable
