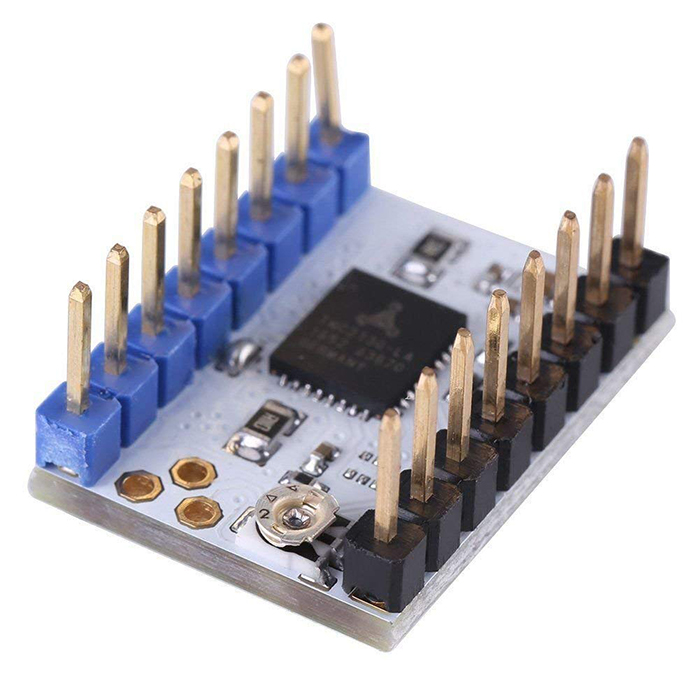

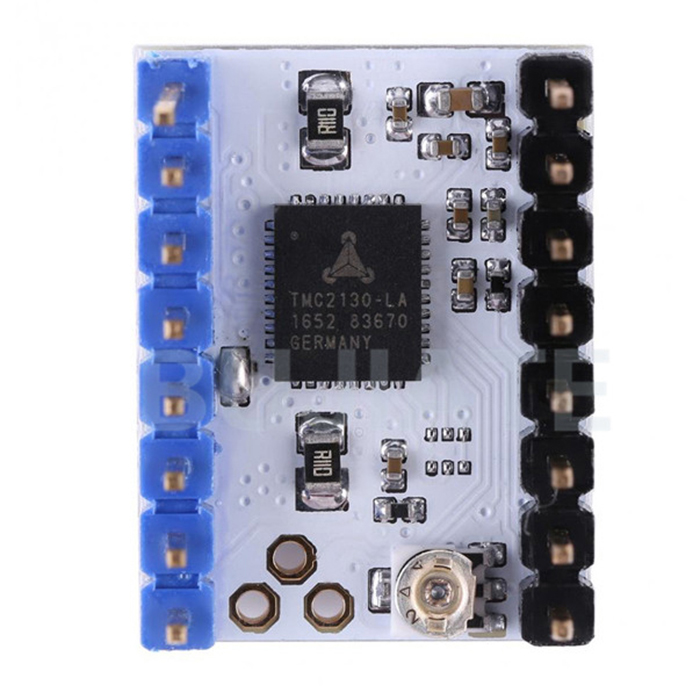

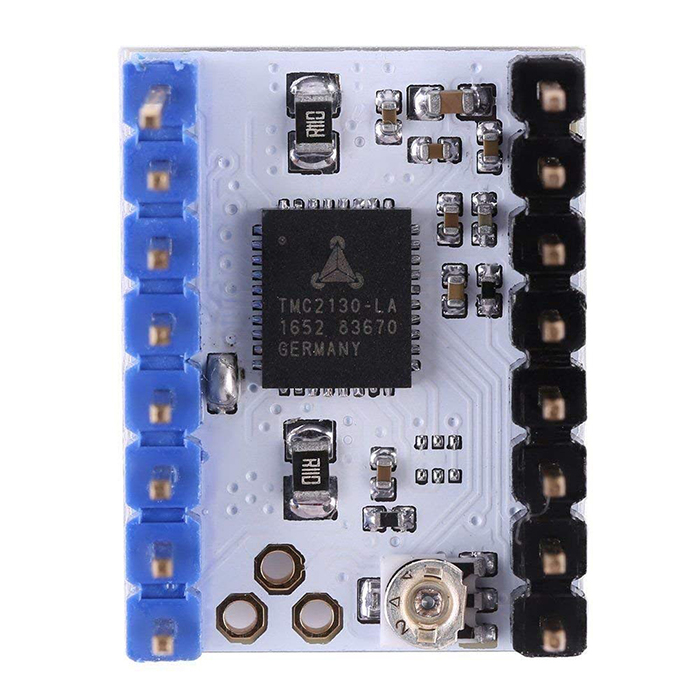

TMC2130

Product Description:

Motor input voltage range: 4.75 ~ 46V
Logical interface input voltage: 3 ~ 5V
Model: TMC2130

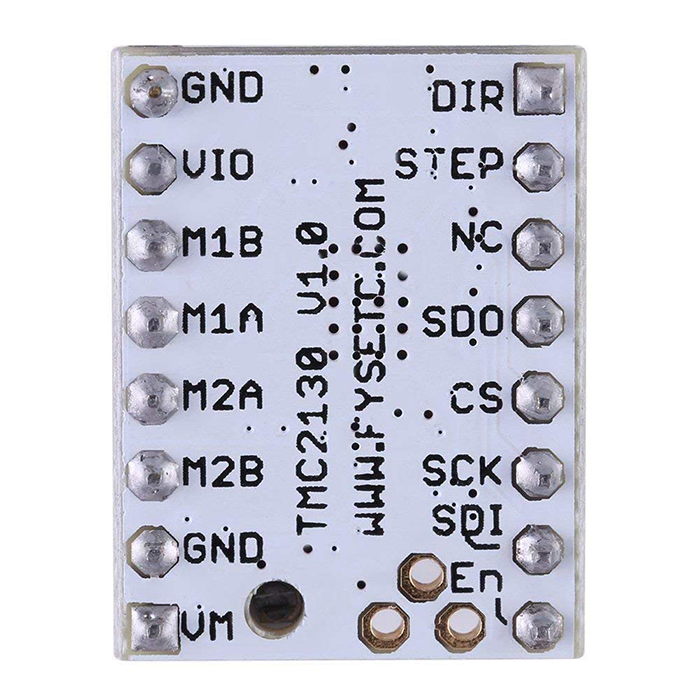

Interface: Step/Dir or SPI
Configuration: CFG Pins or SPI
Native Microsteps: up to 1/256
Motor Phase Current: 1.2A RMS, 2.5A Peak

Specification

VM always needed: enabled
RDSon: >=0.5 Ohm
stealthChop (quiet): yes spreadCycle: yes
coolStep: yes
stallGuard: yes
dcStep: yes

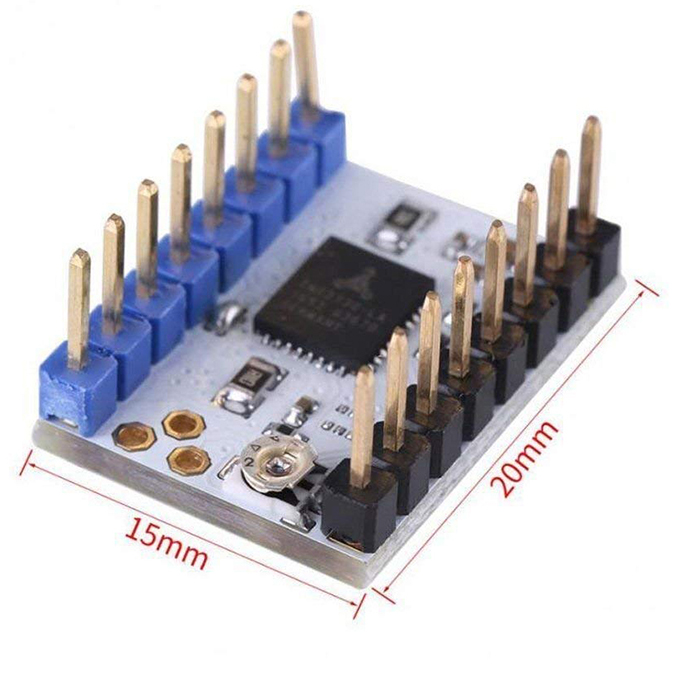

TMC2130 Driver Size: 0.79in x 0.59in x 0.43in / 20mm x 15mm x 11mm

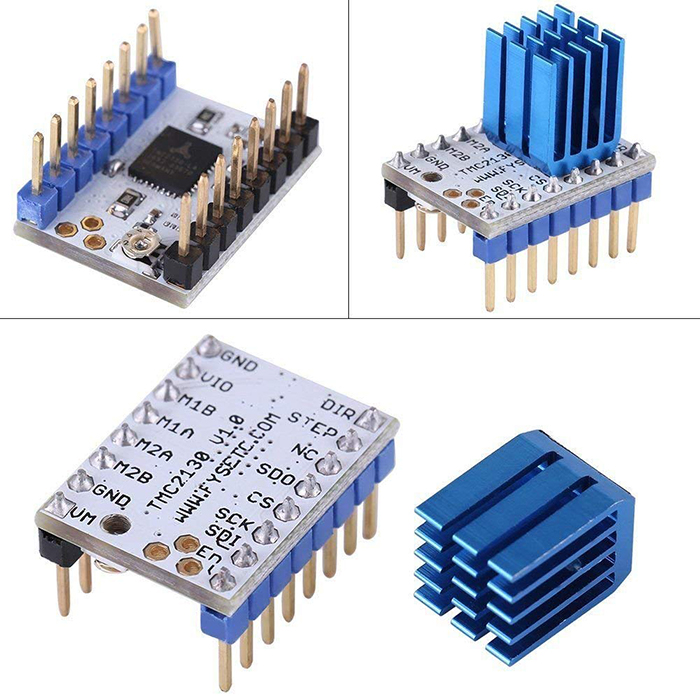

Heat Sink Size: 0.47in x 0.5in x 0.35in / 12mm x 9mm x 9mm
Net weight: 0.1oz / 3g
