/ TLP781-GB DIP-4

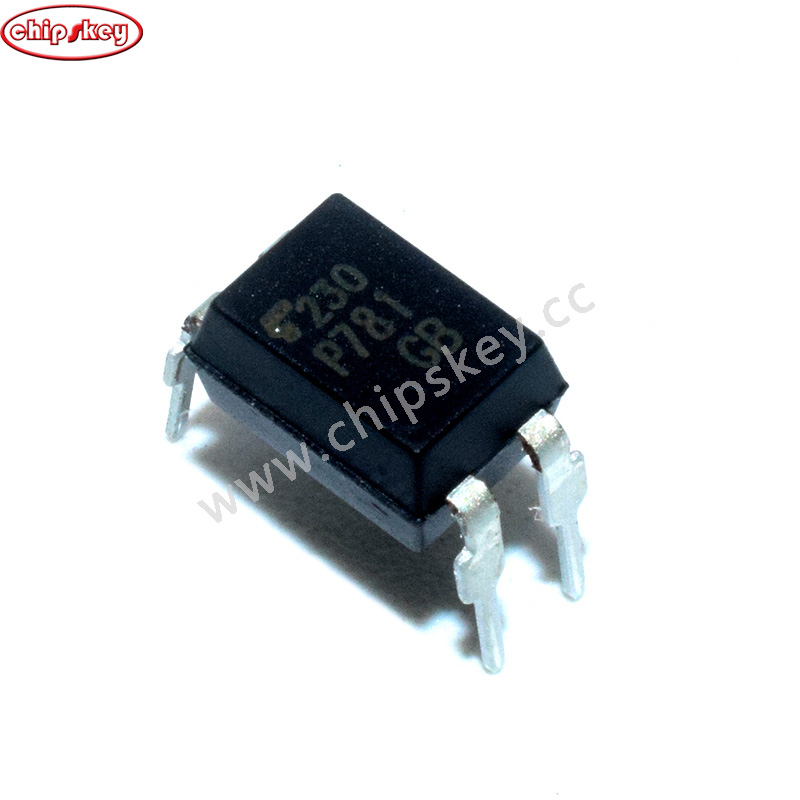

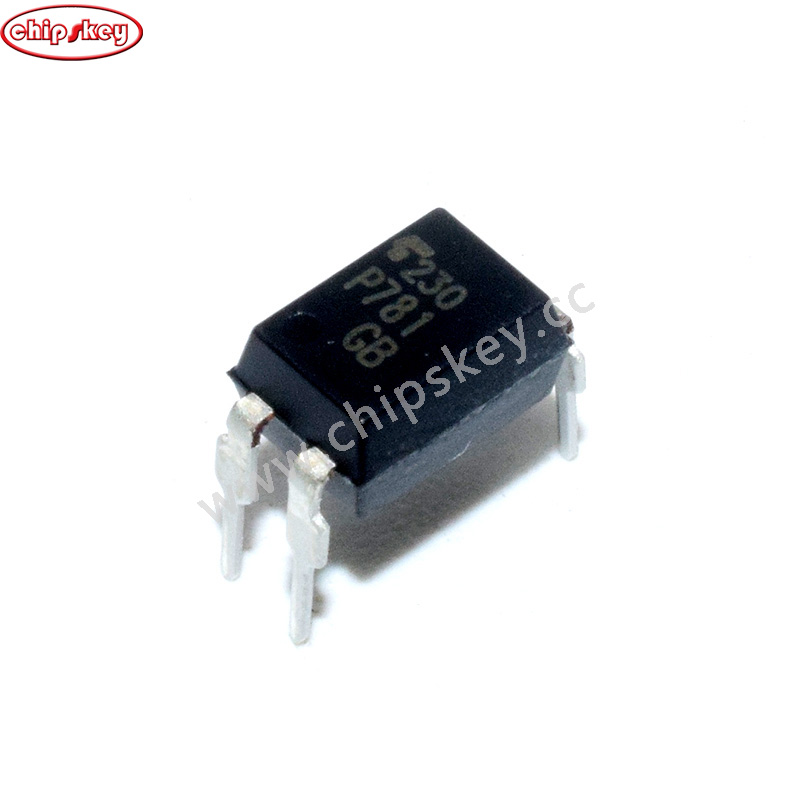

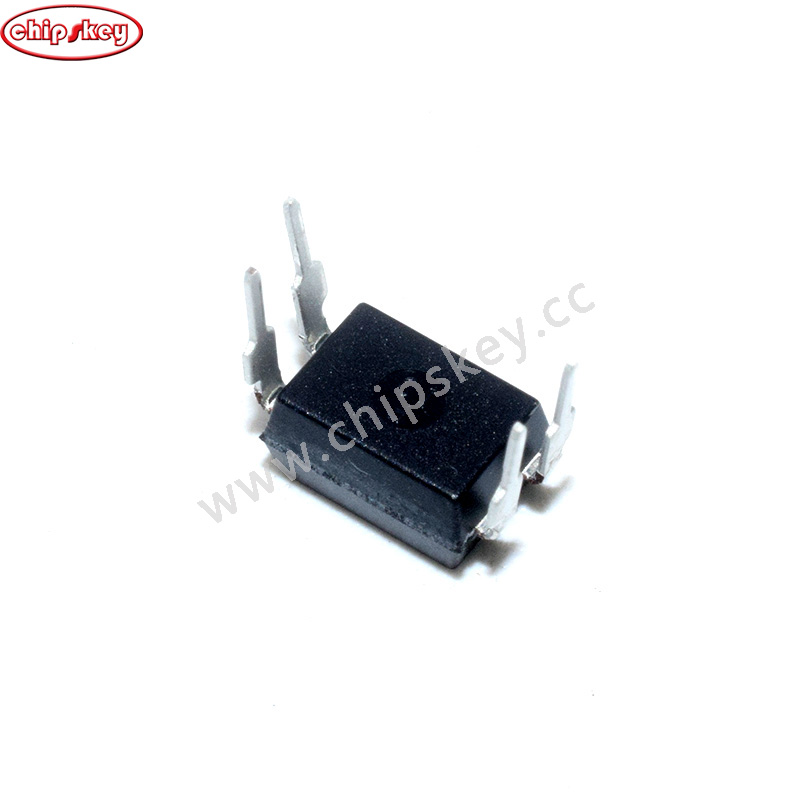

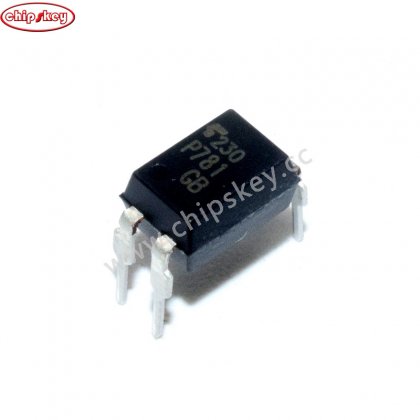

TLP781-GB DIP-4
SKU:
25163
1054:viewed
US$0.08
-
+
(10000 Pieces available)
Send Email
Chat Online
Call on Whatsapp
Telegram
Add to Wishlist
Hot Products
DB3 DO-35 Blue trigger tube
US$0.02
LM339N DIP14
US$0.10
20*20 TEC1-03108 3V8A 17.5W semiconductor refrigeration
US$2.90
IC chip classification 150 operational amplifiers Oscillator PC817 NE555 LM358 LM324 JRC4558 LM393 LM339 NE5532 LM386 TDA2822D PT2399 UC3842AN UC3843AN ULN2003AN ULN2803APG
US$15.00
Description
Customer Reviews
Payment & Shipping
Part Status
Not For New Designs
Number of Channels
1
Voltage - Isolation
5000Vrms
Current Transfer Ratio (Min)
100% @ 5mA
Current Transfer Ratio (Max)
600% @ 5mA
Turn On / Turn Off Time (Typ)
3?s, 3?s
Rise / Fall Time (Typ)
2?s, 3?s
Input Type
DC
Output Type
Transistor
Voltage - Output (Max)
80V
Current - Output / Channel
50mA
Voltage - Forward (Vf) (Typ)
1.15V
Current - DC Forward (If) (Max)
60mA
Vce Saturation (Max)
400mV
Operating Temperature
-55°C ~ 110°C
Mounting Type
Through Hole
Package / Case
4-DIP (0.300", 7.62mm)
Supplier Device Package
4-DIP
