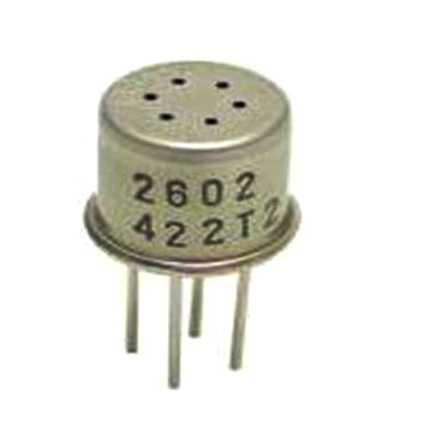

TGS2602

description
The sensing element includes a metal oxide semiconductor layer formed on an alumina substrate of the sensing chip together with an integrated heater. In the presence of detectable gas, the conductivity of the sensor will follow
The concentration of air in the air increases. A simple circuit converts the conductivity change into an output signal that corresponds to the gas concentration. TGS 2602 pair
Low concentrations of malodorous gases such as ammonia and hydrogen sulfide generated from wastes in office and home environments are highly sensitive. The sensor also has high sensitivity to low concentrations of volatile organic compounds such as toluene emitted from wood finishing and building products. Due to the miniaturization of the sensing chip, the TGS 2602 requires only 56mA of heater current and is available in a standard TO-5 package.
?
feature:
* High sensitivity to VOCs and odorous gases
* Low power consumption
* For gaseous air
Contaminants have high sensitivity
*long lasting
* The circuit is simple
*small volume
?
application:
*air purifier
* Ventilation control
* Air quality monitor
* VOC monitor
* Odor monitor
