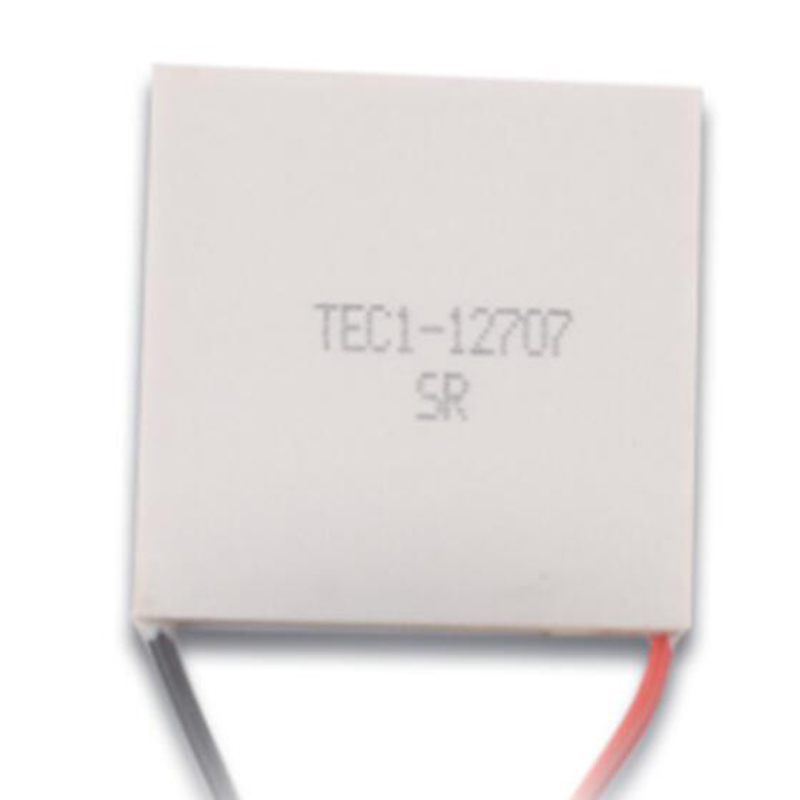

Chip model: TEC1-12707
External dimensions: 40*40*3.6mm
Number of components: one hundred and twenty-seven
Dimensions: 40 * 40 * 3.6 mm
Wire specification: Lead length 300 ± 5mm RV standard wire single head 5mm tin plated
Internal resistance: 1.8~2.00 (ambient temperature 23 ± 1 ° C, 1kHz Ac test)
Maximum temperature difference: △ Tmax (Qc=0) above 62 ° C
Working current: Imax=7A
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 67W
Assembly pressure: 85N/cm2
Working environment: Temperature range -55 ° C~83 ° C (excessively high ambient temperature will directly affect refrigeration efficiency)
Packaging process: standard 704 silicone rubber seal on all sides
Packaging standard: foam box packaging, storage conditions, ambient temperature -10 ° C~40 ° C
Storage conditions:- 40~60°C
