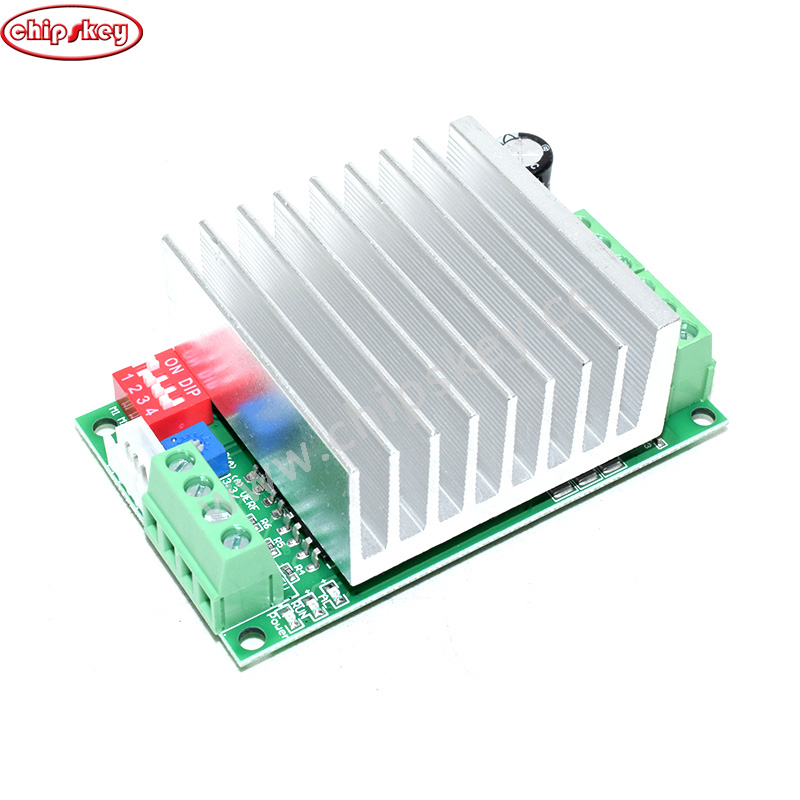

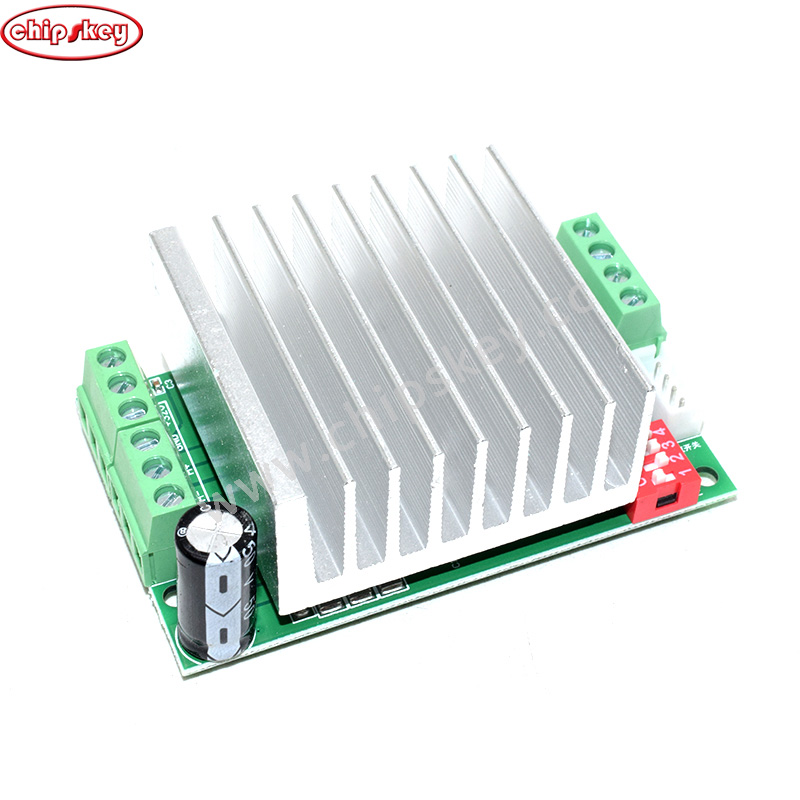

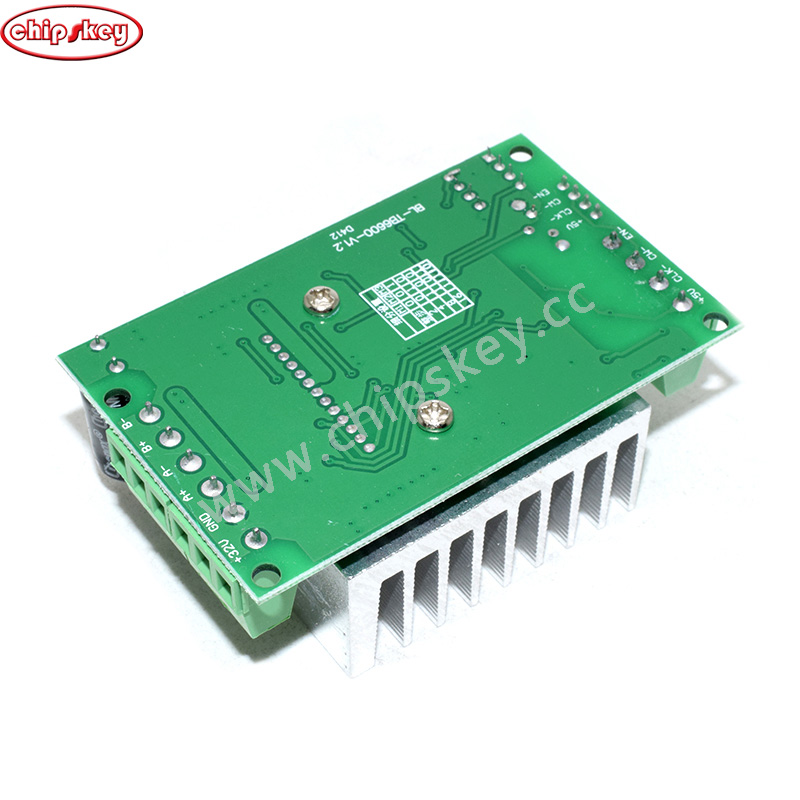

TB6600 4.5A Stepper motor drives Driver Board Controller Single axis controller

Product description Material: Meatal and plastic. Size: 50*82*35 mm (W*L*H). Color: green and white. Operating voltage DC 10V-45V. DC32V switching power supply is recommended. high-speed optical coupling 6N137, ensure high speed without losing step. Toshibas new high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560. Rated maximum output reached: ± 4.5A. For 4.2A 42,57,86 within the two-phase / four-phase / four-wire / six-wire stepper motor. Automatic half current function. Subdivision: full step, half step, 1/4-step, 1/8-step, 1/16-step, up to 16 segments. Package included: 1 *TB6600 4.5A Stepper motor drives Driver Board Controller Single axis controller Product information Technical Details Package Dimensions 8.3 x 3.1 x 0.7 inches
