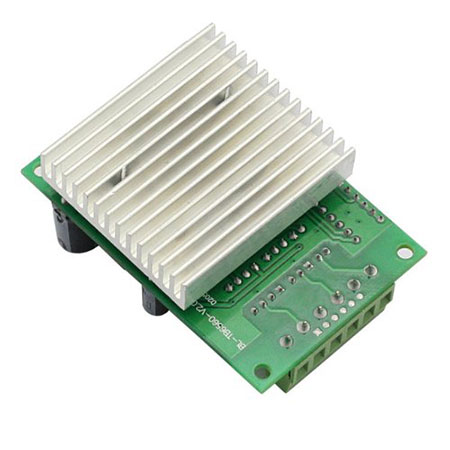

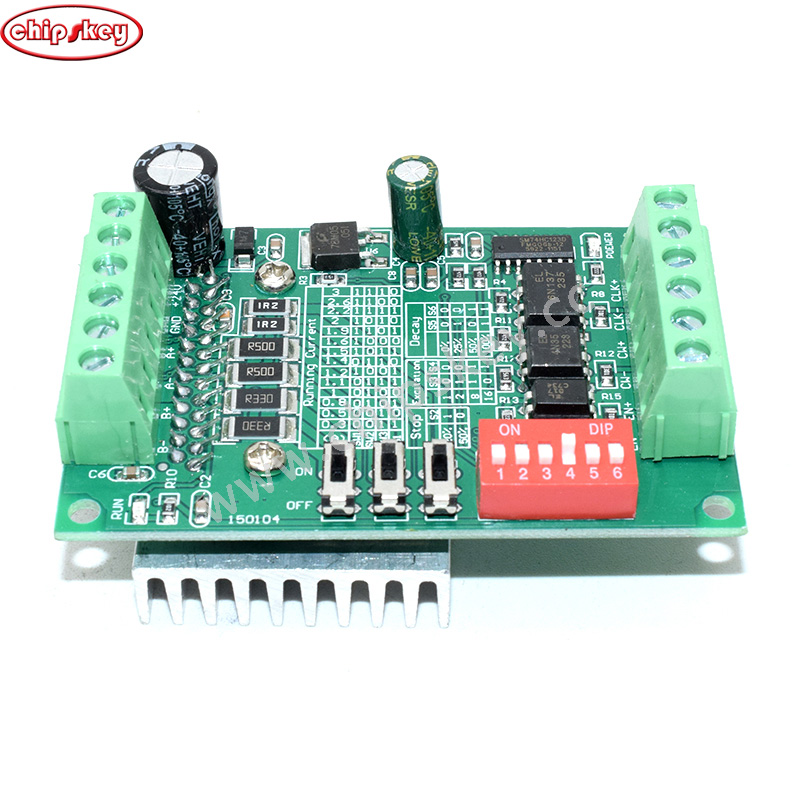

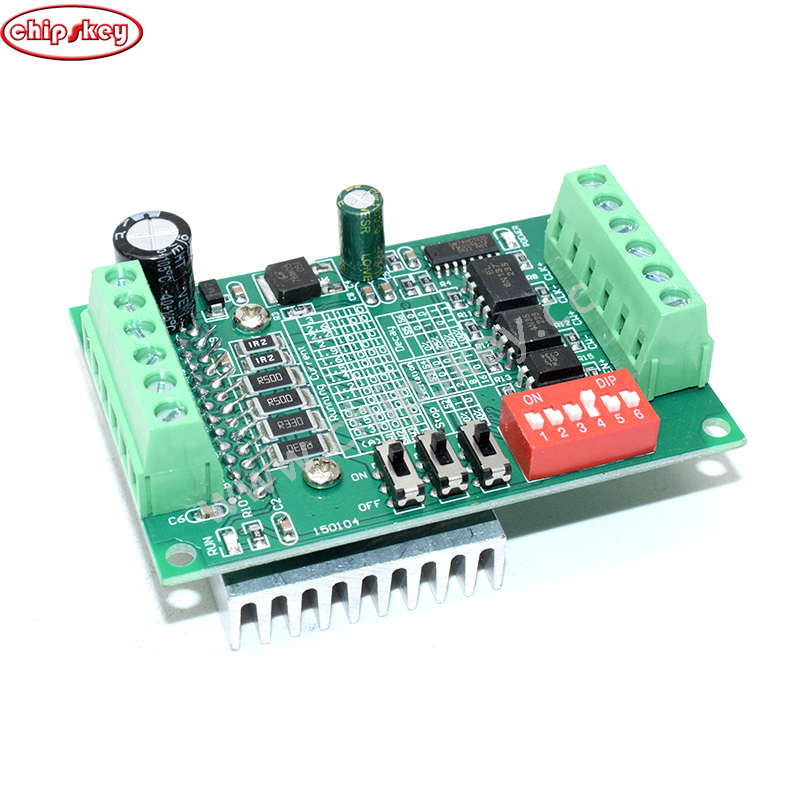

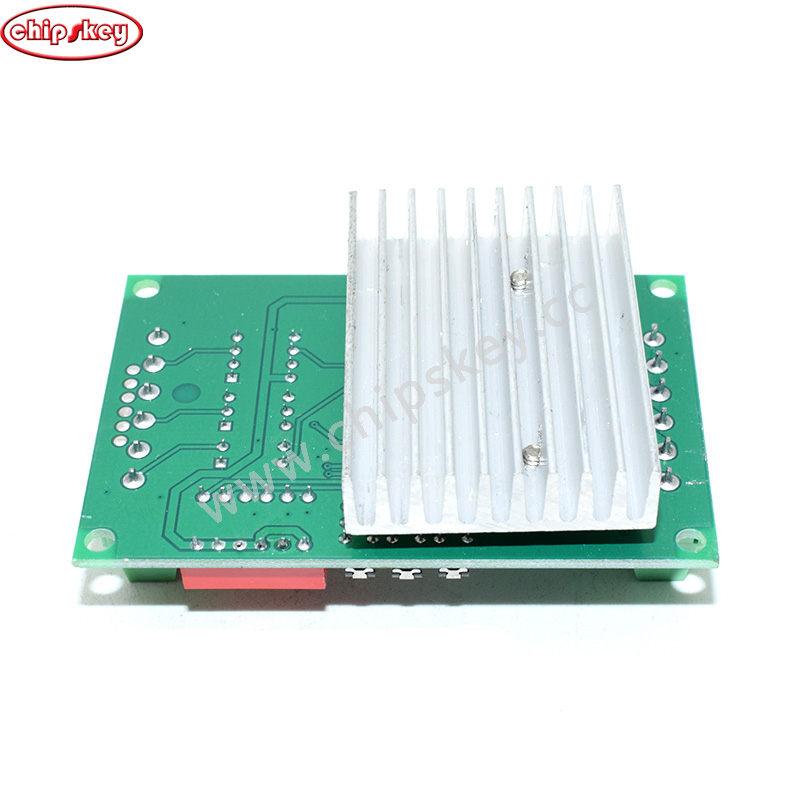

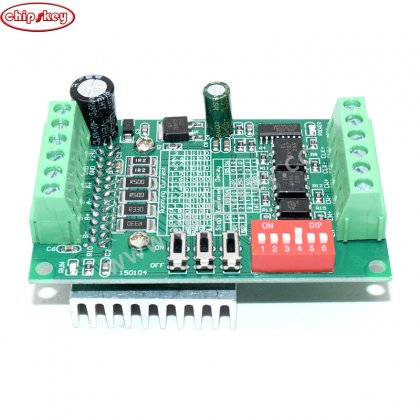

TB6560 3A stepper motor driver，Single axis controller，10 files current

Working voltage DC 10V-35V. Recommended to use a switching power supply 24 VDC power supply; 6N137 high-speed optical coupling to ensure high-speed without losing step; Toshiba TB6560AHQ new original chip, with low pressure off, overheating parking and over-current protection circuit to ensure optimal performance; Specification Rated maximum output as: ± 3A, peak 3.5A; Suitable for 42,57 stepping 3A within two / four-phase / line / six-wire stepper motor, and is not suitable for more than 3A stepper motor; Automatic half current function; Segments: full step, half step, 1/8, 1/16 step, a maximum of 16 broken down.
