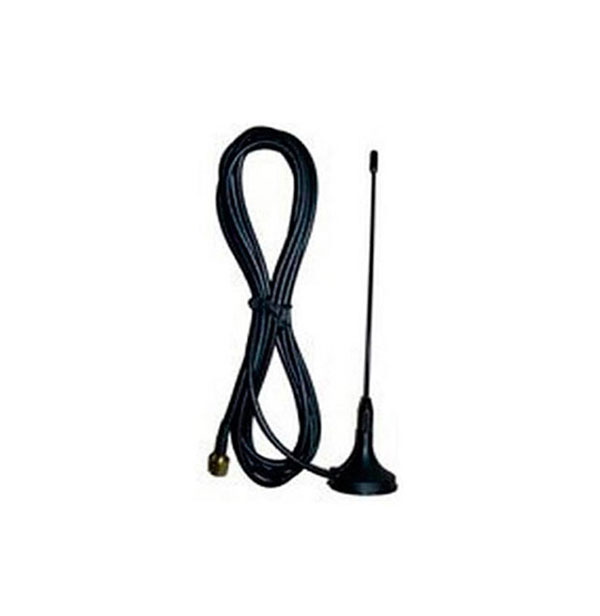

SW433-XP1M 433MHZ Antenna

SW433-XP1M sucker antenna 433M antenna communication antenna
?
The SW433-XP1M Sucker Antenna is a dedicated antenna for 433MHz wireless data transmission / meter reading communication system design. Antenna VSWR good performance, small size, clever structure, easy installation, stable performance, anti-vibration and aging ability.
?
The main technical parameters >>
?
Frequency Range: 433 MHz (+ / -10)
VSWR: <= 1.5
Input impedance: 50
Maximum power: 10 watts
Gain: 2.0 ~ 3.0 dBi
Weight: 40g ~ 80g
?
Height: 126mm (Mast length: 96mm)
?
Cause the cable: 100 cm
?
Antenna color: black
?
Interface form: SMA-J or customer requirements
?
VSWR >>
Frequency: 434MHz
RL: 26.13dB
VSWR: 1.161
