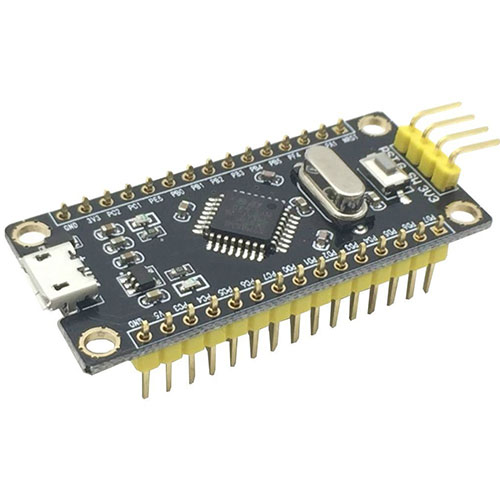

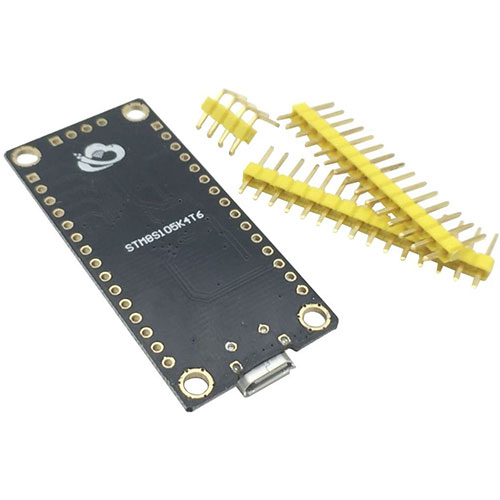

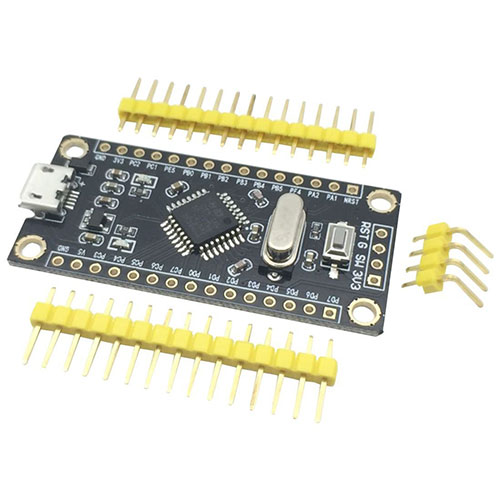

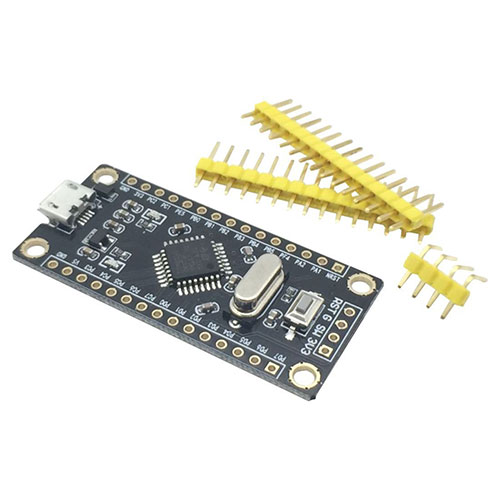

product description STM8S Development Board STM8S105K4T6 Core Board Microcontroller Learning Board Small System Board Gold Edition Nested interrupt controller with 32 interrupts 6 external interrupt vectors, up to 37 external interrupts Timer Two 16-bit general-purpose timers with 2 + 3 CAPCOM channels (IC, OC or PWM) Advanced Control Timer: 16-bit CAPCOM channel, 3 complementary outputs, dead-zone insertion and flexible synchronization 8-bit prescaler 8-bit basic timer Automatic wake-up timer 2 watchdog timer: window watchdog and independent house dog Communication Interface UART with synchronous clock output, smart card, infrared IrDA, LIN interface SPI interface up to 8Mbit / s I 2 C Interface Up to 400Kbit / s Analog-to-Digital Converter Analog-to-Digital Converter (ADC) 10-Bit, +/- 1LSB ADC Provides Up to 10 Channels, Scan Mode and Analog Watchdog Functionality I / O port 48-pin package up to 38 I / O chips, including 16 high sink current output, Very powerful I / O design, the reverse current has a very strong capacity Development support Single Wire Interface Module (SWIM) and Debug Module (DM) for online programming and non-intrusive debugging Pin is not soldered Package Contents: 1 STM8S105K4T6 core board Note: Light photography and different displays may cause items in the picture to differ in color from the real thing. Measurement tolerance is +/- 1-3cm.
