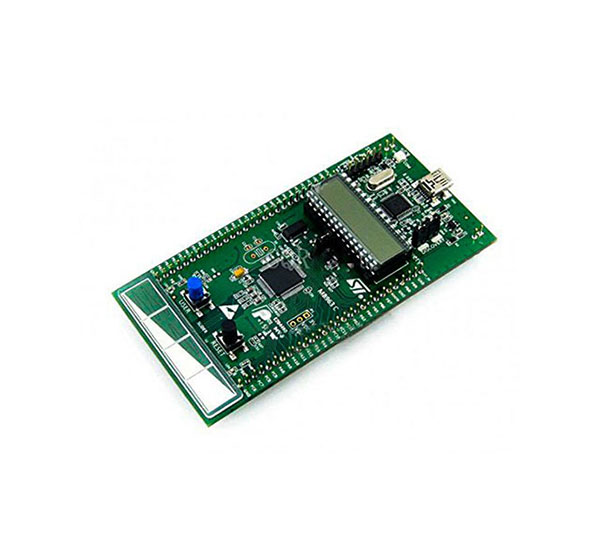

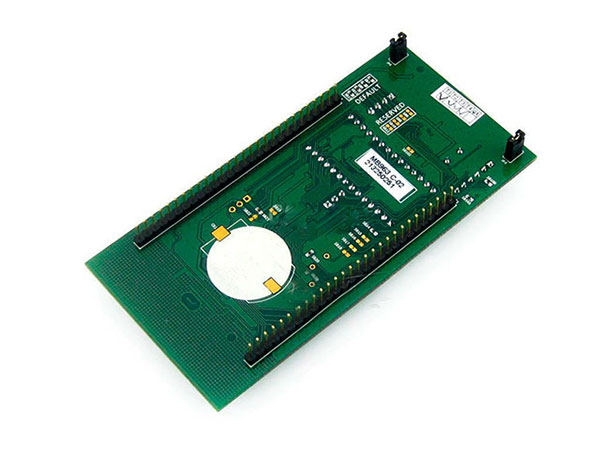

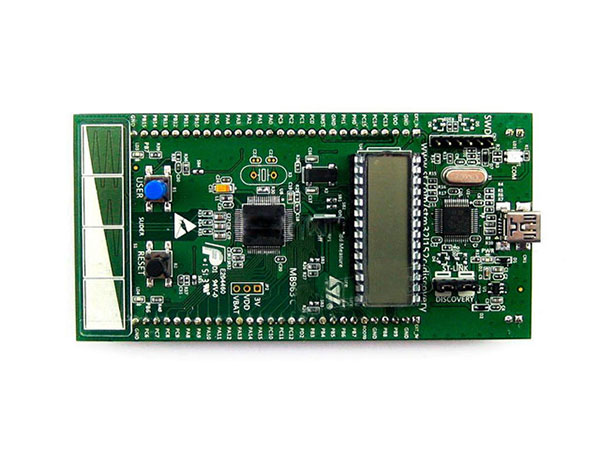

STM32L152C-DISCO, STM32L Discovery Kit

product description
description:

The STM32L152C-DISCO and 32L152CDISCOVERY kits help you discover the STM32L ultra-low power features and develop and share your applications.

They are based on STM32L152RBT6 and STM32L152RCT6 respectively; include an ST-Link / V2 embedded debug tool interface, an LCD (24 segments, 4 commons), LEDs, pushbuttons, linear touch sensors or touch keys.

feature:

STM32L152RCT6 in LQFP64 (256 KB Flash, 32 KB RAM, 8 KB EEPROM) Microcontroller
On-board ST-Link / V2 with Select Mode Switch The kit can be used as a stand-alone ST-Link / V2 (with SWD connector for programming and debugging)
Board power supply: via USB bus or external 3.3 or 5 V supply voltage
External application power: 3 V and 5 V.
IDD current measurement
LCD
DIP28 package
24 segments, 4 common
Four LEDs:
LD1 for USB communication (red / green)
LD2 (red) for 3.3 V supply
Two user LEDs, LD3 (green) and LD4 (blue)
Two buttons (user and reset)
A linear touch sensor or four touch keys
Expansion header for LQFP64 I / O for fast prototyping and easy probing
