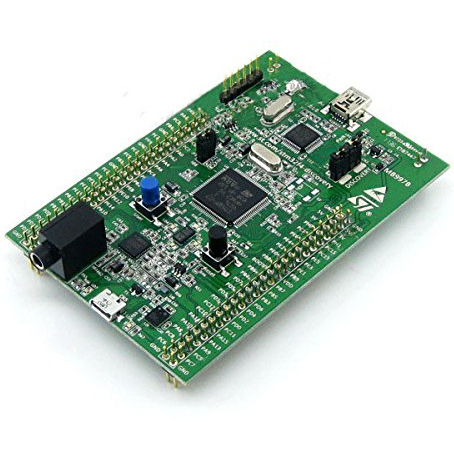

product description QX Electronics 1PCS Advanced STM32F407G-DISC1 STM32F407 Discovery STM32F4 Development Board Product Details Product Size: 0.2 x 0.2 x 0.2 inch; 0.16 oz
STM32F4Discovery helps you discover STM32F407/417 line features and develop applications easily. It includes everything beginners and experienced users need to get started quickly.
Based on the STM32F407VGT6, it includes an ST-Link/V2 embedded debug tool, two ST MEMS, digital accelerometers and digital microphones, an audio DAC with integrated class-D speaker drivers, LEDs and buttons, and a USB OTG Micro AB connection device.
Key Features:
--stm32f407vgt6 microcontroller, 32-bit ARM Cortex-M4F core, 1MB flash, 192kb RAM, LQFP100 package
--In-vehicle ST-Link/V2 with select mode switch to use kit as standalone
--ST-Link/V2 (with SWD connector for programming and debugging)
--Board power supply: via USB bus or external 5 V supply voltage
--External application power supply: 3 V and 5 V
--lis302dl or lis3dsh st mems triaxial accelerometer
--MP45DT02, ST MEMS audio sensor, digital microphone
--CS43L22, Audio DAC with Integrated Class D Speaker Driver
Eight LEDs:
a) LD1 (red/green) for USB communication
b) LD2 (red) for 3.3 V power up
c) Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
d) 2 USB OTG LEDs LD7 (green) VBU and LD8 (red) over current
-- two buttons (user and reset)
--USB OTG FS with micro AB connector
-- Expansion headers for all LQFP100 I/Os for quick connection to prototype boards and easy probing
