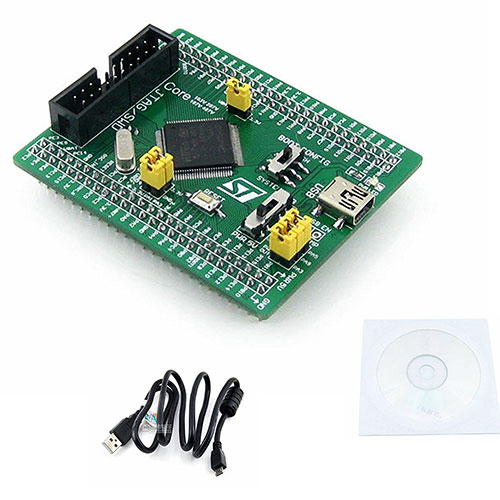

STM32 Core Board STM32F107VCT6 STM32F107 ARM Cortex-M3 STM32 Development Board Kit

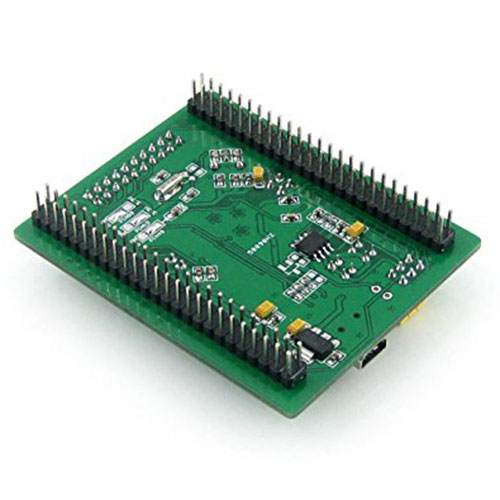

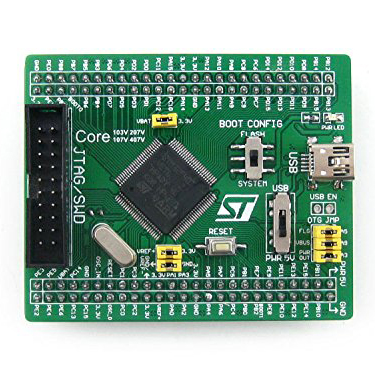

Product description DESCRIPTION: Core107V is a small STM32 development board that FEATURES an STM32F107VCT6 device as the microcontroller, supports further expansion. It is ideal for starting APPLICATIONS development with STM32F family. As a minimal ready-to-run system, the Core107V integrates USB communication interface, JTAG/SWD programming/debugging interface, clock circuit, USB power management, boot mode selection, and so on. Furthermore, pin headers on the backside allow the Core107V to be plugged-in your APPLICATIONS board and act as the MCU core circuit in your system. All the I/O ports are accessible on the pin headers, and the header pitch is designed as 2.54mm. SPECIFICATION: STM32F107VCT6:the high performance STM32 MCU which FEATURES: Core: Cortex to M3 32 to bit RISC Operating Frequency: 72MHz, 1.25 DMIPS/MHz Operating Voltage: 2 to 3.6V Package: LQFP100 I/Os: 80 Memories: 256kB Flash, 64kB RAM MCU communication Interfaces Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP AMS1117 to 3.3 (on bottom side): 3.3V voltage regulator MIC2075 (on bottom side): onboard USB power management device Power supply switch, powered from 5Vin or USB connection Boot mode switch, for configuring BOOT0 pin Power indicator Reset button 25M crystal oscillator 32.768K crystal (on bottom side), for internal RTC with calibration JTAG/SWD interface: for debugging/programming USB connector, used for establishing USB communication between PC and the STM32 development board IO expander (including VCC/GND), all the MCU pins are accessible on expansion connectors for further expansion Product information Shipping Weight 6.7 ounces (View shipping rates and policies)
