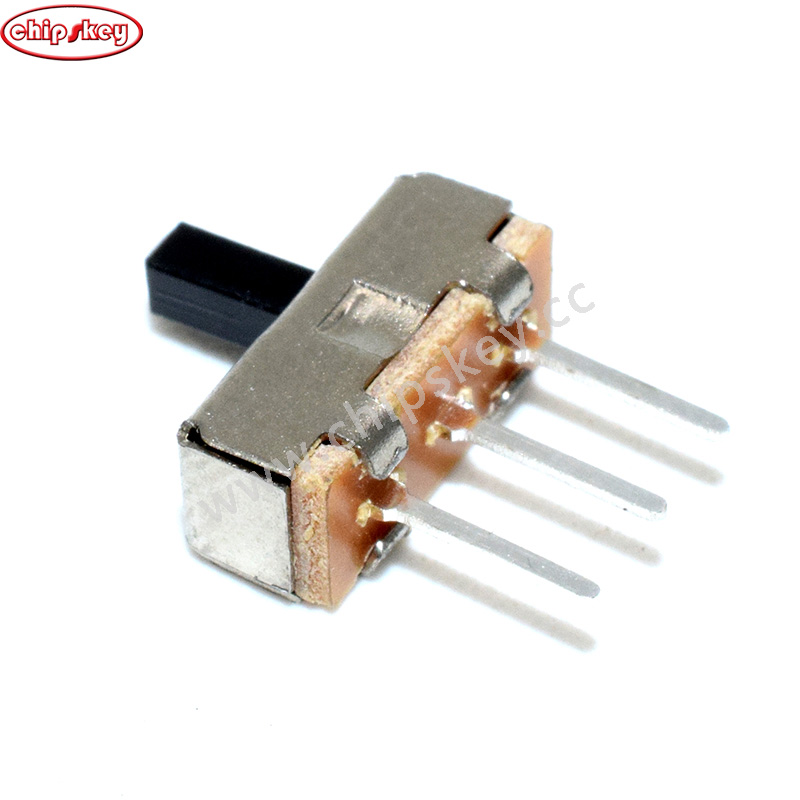

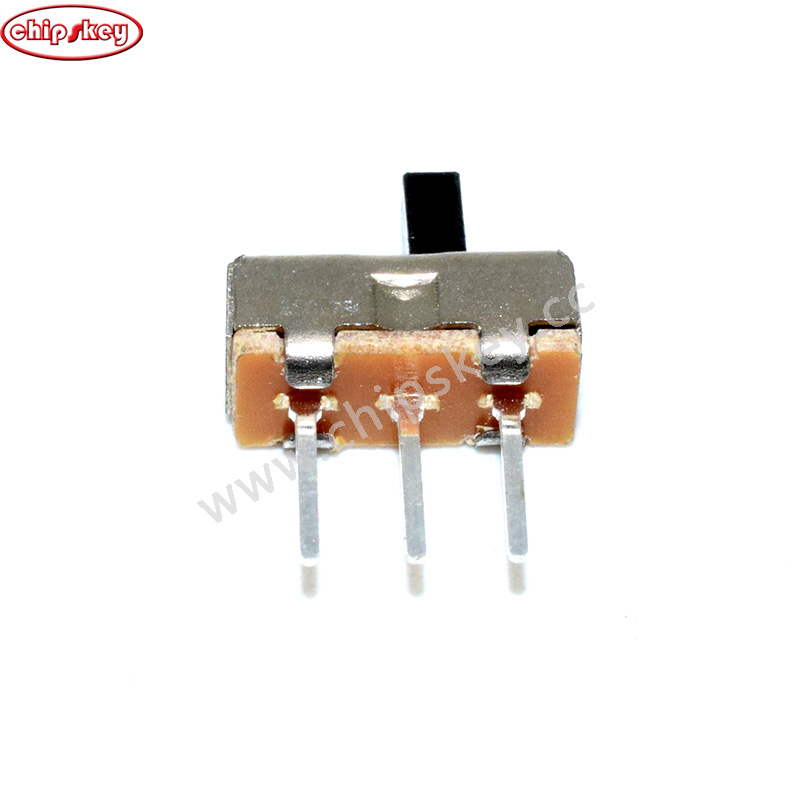

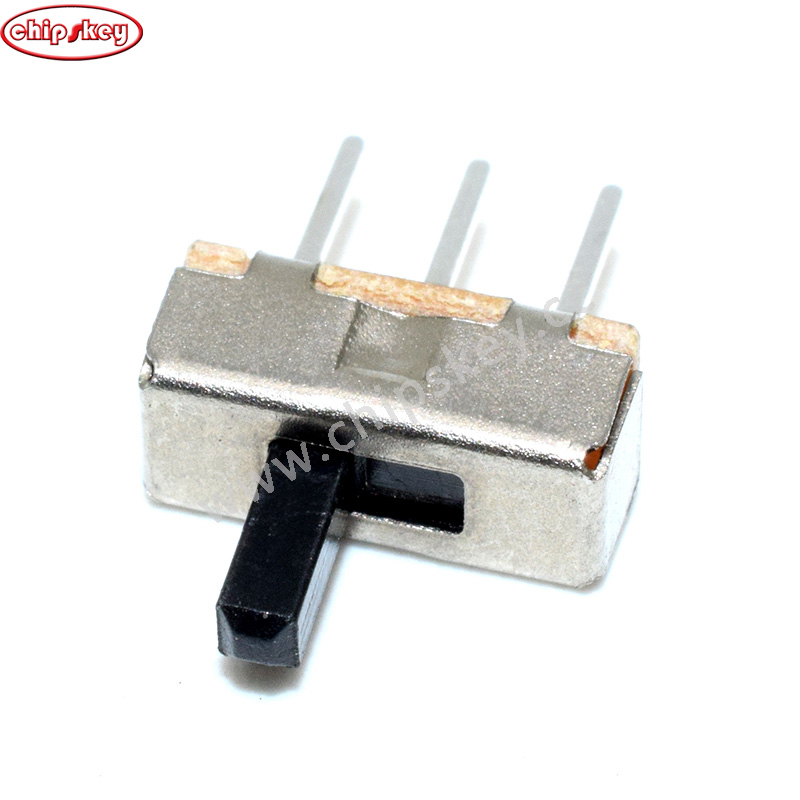

SS-12D00G3 2 Position SPDT 1P2T 3 Pin PCB Panel Vertical Slide Switch For Breadboard

Product description Contact Resistance: 30mΩ Max; Insulation Resistance: 100mΩ Min at 500V DC; Withstand Voltage: AC 500V for 1 min; Working Power: 0. 5A 50V DC; Terminal Length: 3mm/ 0. 12"; Pin Pitch: 2. 54mm / 1"; Main Body Size(not include Pins & Knob): 8 x 4 x 3. 8mm/ 0. 31" x 0. 16" x 0. 15"(L*W*H) Switch Total Size: 8 x 4 x 10mm/ 0. 31" x 0. 16" x 0. 39"(L*W*H); Knob Size: 1. 5 x 1. 5 x 3mm/ 0. 06" x 0. 06" x 0. 12"(L*W*H);
