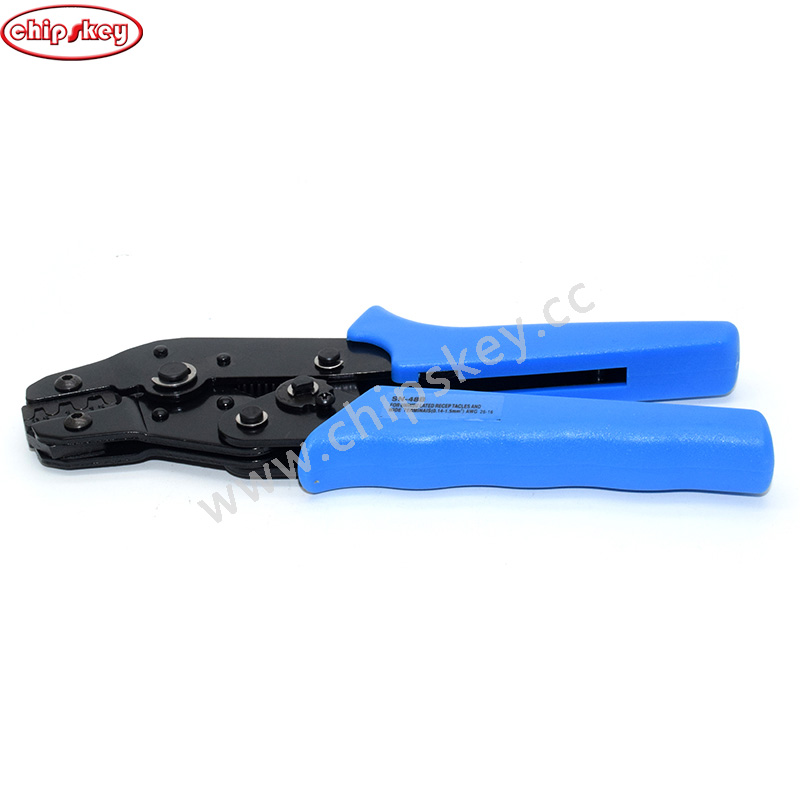

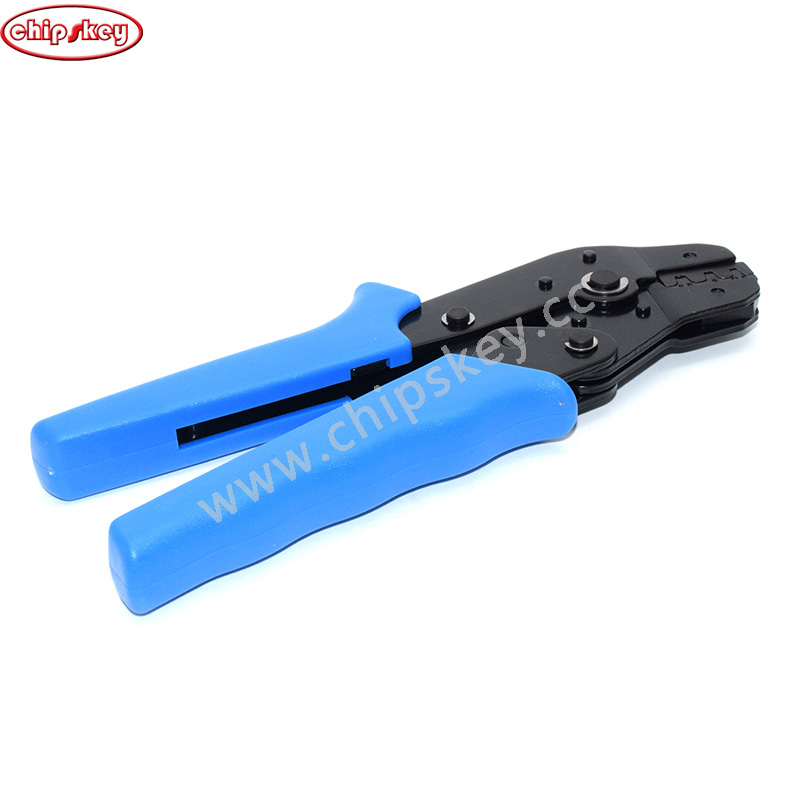

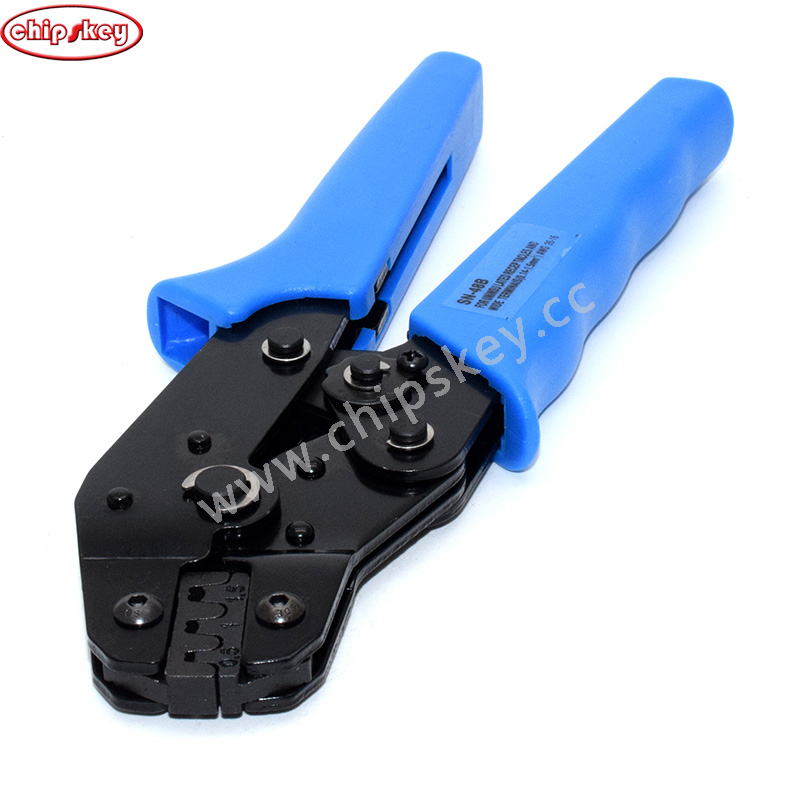

product description Due to the photography and your own computer, the colors of the items may be slightly different. High-precision ratchet mechanism for crimping. Interchangeable high-precision crimp module. Interchangeable positioner for precise terminal positioning. Using pliers is easy to do, just insert the top into its place and press it.
Model: SN-48B
Suitable for: male and female spring terminal TAB
2.8/4.8/6.3mm
Crimp wire diameter specification: 26-16 (AWG)
Crimp specifications: 0.5mm2, 1.0mm2, 1.5mm2
The width (pitch) of the plug spring TAB terminal is: 2.8 / 4.8 / 6.6mm
Thickness of crimping module: 8mm
Length: 190mm
Net weight: 0.35KG
Detailed crimping specifications:
First jaw: crimping wire diameter: (AWG 26-24 / 0.5mm2, pin terminal pitch: 2.8mm)
Second jaw: crimping wire diameter: (AWG 22-20 / 1.0mm2, pin terminal pitch: 4.8mm)
Third jaw: crimping wire diameter: (AWG 18-16 / 1.5mm2, pin terminal pitch: 6.3mm)
