Sma Female To Sma Female Header

Product description
100% BeElion brand new ;
Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

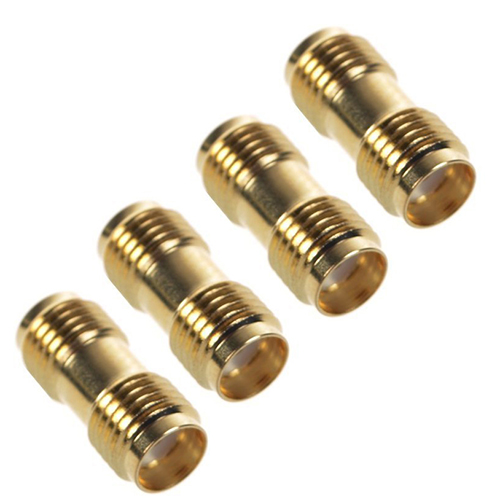

SMA Female to SMA Female Jack in Series RF adapter ,Gold-Plated Machined Brass Construction
Durable Cycles: 500 Cycles
Type: SMA female to SMA female straight adapter
Insulation material: PTFe
Material: Brass, Nickel-Plated
Color: Silver, Golden

TECHNICAL CHARACTERISTICS:

* Temp.range -65_+165℃ (PE Cable -40_+85℃)
* Vibration MIL-STD-202,Method 213
* Impedance 50Ω,
* Frequency Range DC_6GHz
* Working Voltage 335V max (valid values)
* Withstand Voltage 1000V rms
* Contact resistance:
- Center Contact < = 3 MΩ,
- Outer Contact < = 2 MΩ,
* Insulation resistance >= 5000 MΩ?
* Insertion loss < = 0.15 dB/6GHz


Package Content:
1 x 4pairs male female SMA Connectors
