Serial Bluetooth Attitude Measurement Sensor MPU6050

Product Features
(1) the use of high-performance microprocessors to quickly solve the modules current real-time gesture.
(2) embedded Kalman filter, to achieve high-precision angle output
(3) Internal voltage regulator circuit module, voltage 3.3v-5v, pin-compatible 3.3V / 5V embedded system, convenient
(4) Bluetooth serial communication wireless, you can also connect the cable
(5) provide PC software, APP and 51 STM32 arduino sample code
product description

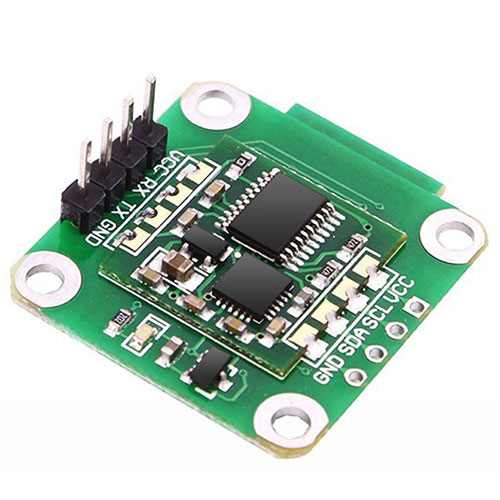

(1) The BJY-61 gyroscope is the ideal solution for angle measurement, acceleration measurement and angular velocity measurement, including three-axis gyroscopes and triaxial accelerometers.
(2) Kalman filter with gyroscope and accelerometer to obtain high-precision angle measurement can be used for four-axis flight control and self-balancing robot, etc.,
Angle measurement and depth measurement.
(3) The module can obtain the accurate attitude under the dynamic environment. Attitude measurement accuracy of 0.05 degrees, high stability.
(4) Using high-precision gyroscopic acceleration sensor MPU6050, read the measurement data through the serial port, without having to learn the complex I2C protocol MPU6050.
Adopt advanced digital filtering technology to reduce measurement noise and improve measurement accuracy.
(5) Bluetooth serial communication wireless, you can also use the cable to connect to other devices.
Main features:
1 input voltage: 3.3V-5V
2 Current consumption: 15mA typical

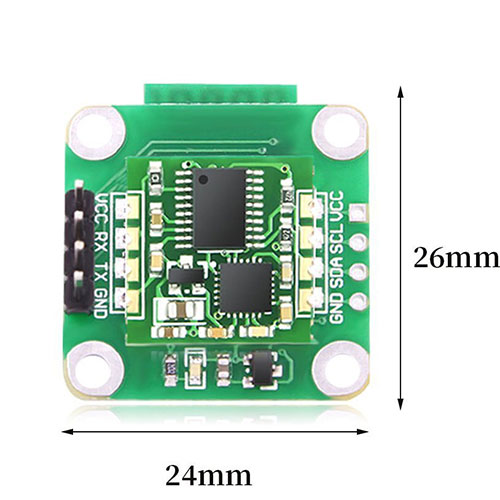

3 Volume: 25.4mm X 25.4mm
4 Measurement: attitude angle: 3-axis acceleration: 3-axis angular velocity: 3-axis
5 Range: Acceleration: ± 16g, angular velocity: ± 2000 ° / s.
6 Data output frequency 100Hz (baud rate 115200).
7 Data Interface: Serial (TTL level),
8 baud rate 115200kps.
9 provides APP PC software and monolithic analysis sample code.
Note: Because there is no magnetic field correction, there is a cumulative error in the Z axis angle
Packing list
(1) BJY61 module 1 PCS

Product Details
Product Size: 7.9 x 3.9 x 2 inches
Shipping Weight: 0.3 oz
