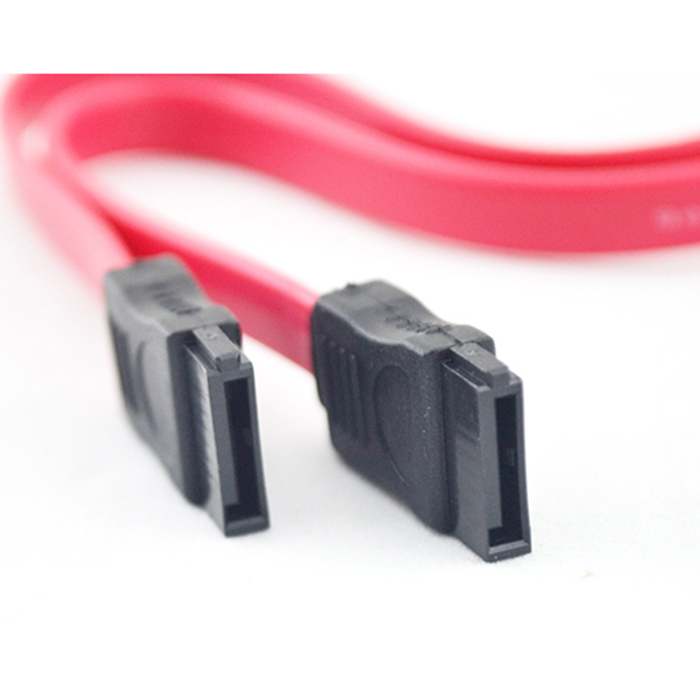

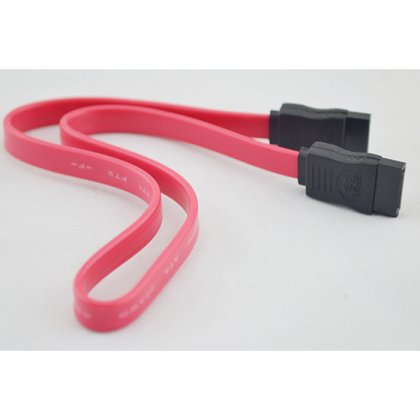

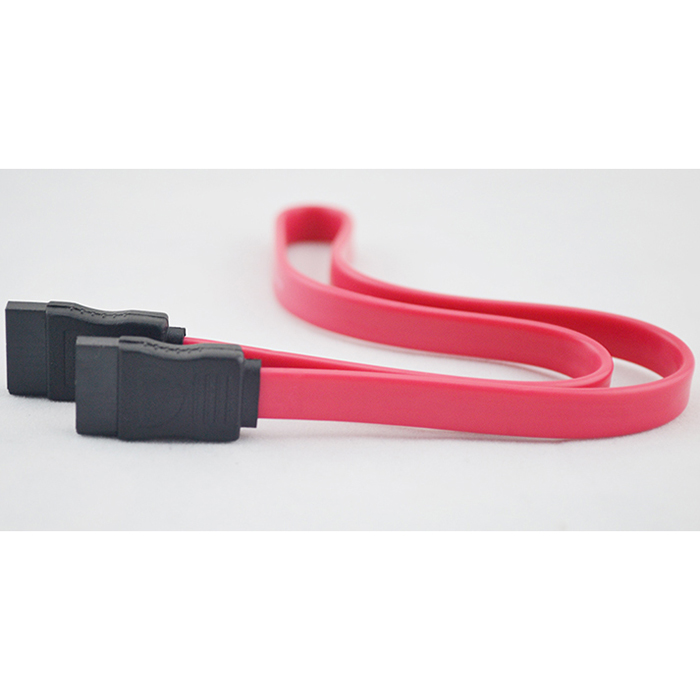

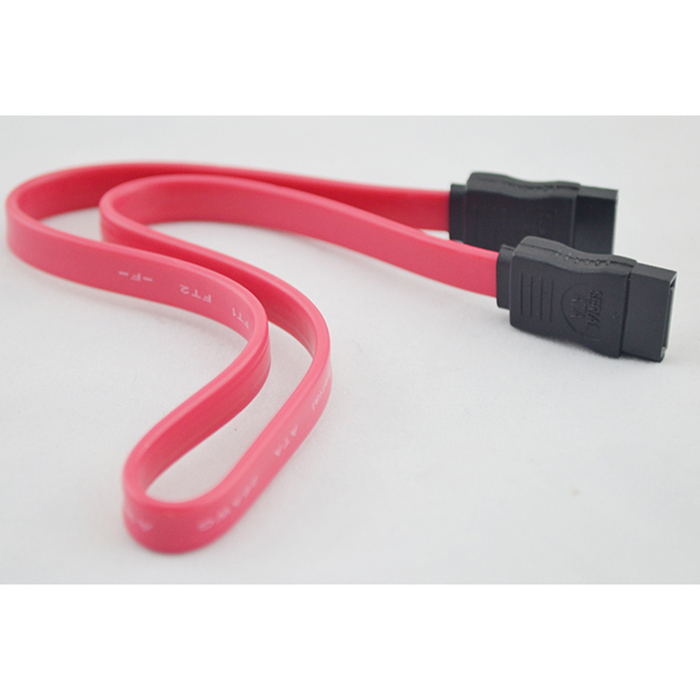

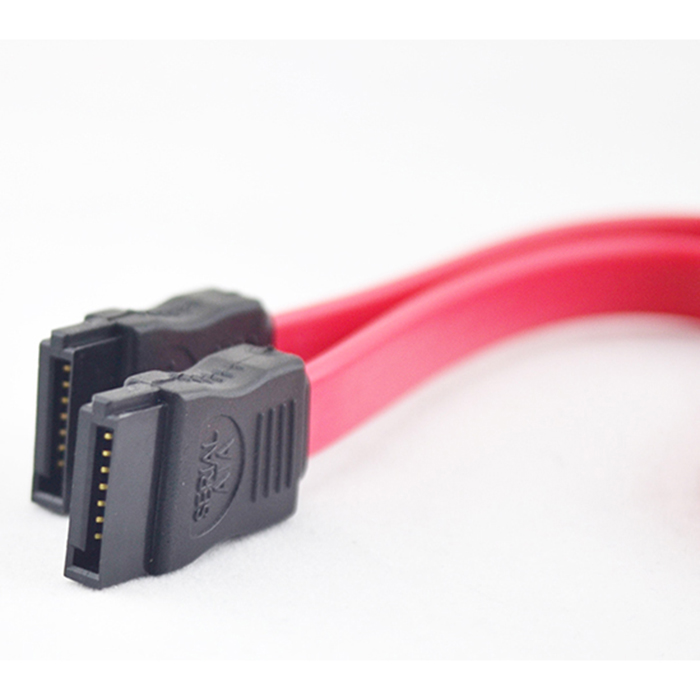

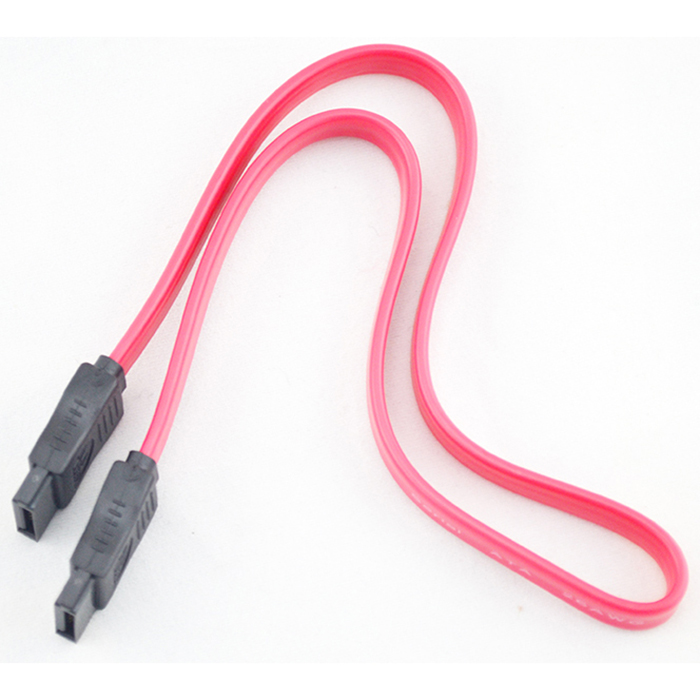

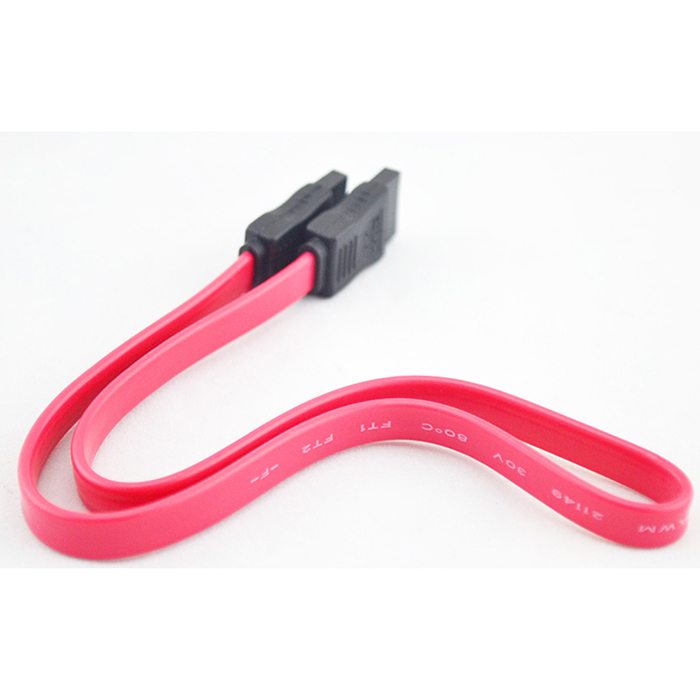

SATA cable, SATA serial port high-speed drive data

Application introduction:

?Double-headed shrapnel with flat layer, is a high-performance accessory for DIY installation, high speed, stable connection! Good workmanship, good SATA cable on the market, you can use it to connect SATA main disk, or as Server hard drive connection is very good!

Hard disk, as an important accessory that affects the performance of the whole machine, has been stagnant in speed in recent years. The hard disk we use now basically maintains the same level of speed as it did three years ago. From 2002 to the present, although the hard disk interface has changed from PATA to SATA, the speed has not been improved. When SATA failed to bring much improvement to the speed of the hard disk, SATA2 came to us.

SATA technology must be familiar to everyone, SATA is the abbreviation of "Serial ATA", popularly speaking, is the serial data transmission interface, and its main difference with the parallel data transmission interface (PATA) we often talk about is transmission Different ways: Serial ATA transmits data in a serial serial mode, with only 1 bit of data per transfer, which makes the number of connection cables less and more efficient; while PATA data transmission is a parallel transmission of data. Multiple bits of data are simultaneously transmitted in one clock cycle. To give an example, let's say that a movie theater has eight side-by-side entrances (which can be seen as the PATA interface of the hard disk). Then, the cinema will allow 8 people to pass at the same time (that is, transfer multiple bits of data in one clock cycle). This is parallel; when the cinema has only one entry, then it can only allow one person to pass at the same time (ie, transfer 1 bit of data in 1 clock cycle), which we can understand as serial. In fact, to put it more simply, parallelism and serialization are actually the difference between "side by side" and "single go".

Currently supporting SATA2 chips: Intel ICH7 series South Bridge, VIA VT8251 South Bridge, NVIDIA nForce4 Ultra, SLI chip, C51 series, ULi M1573 South Bridge. In terms of add-on chips, Silicon Image, which has been working hard for SATA, has 3124 chips supporting SATA2.
