Robot Disc Base/Metal Disc/1 Degree of Freedom PTZ/Robot Intelligent PTZ Camera Accessories

product manual

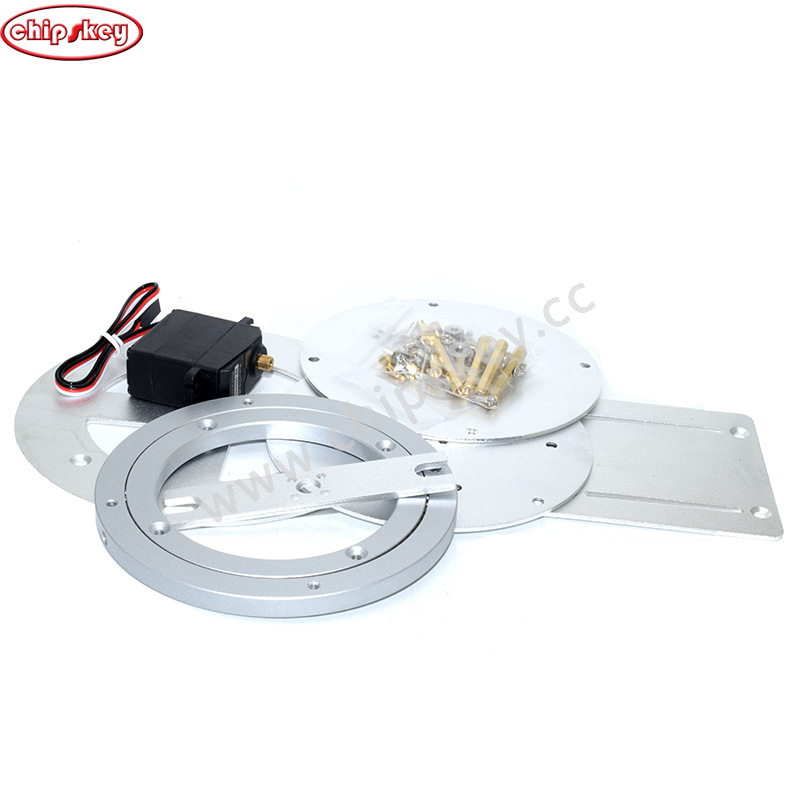

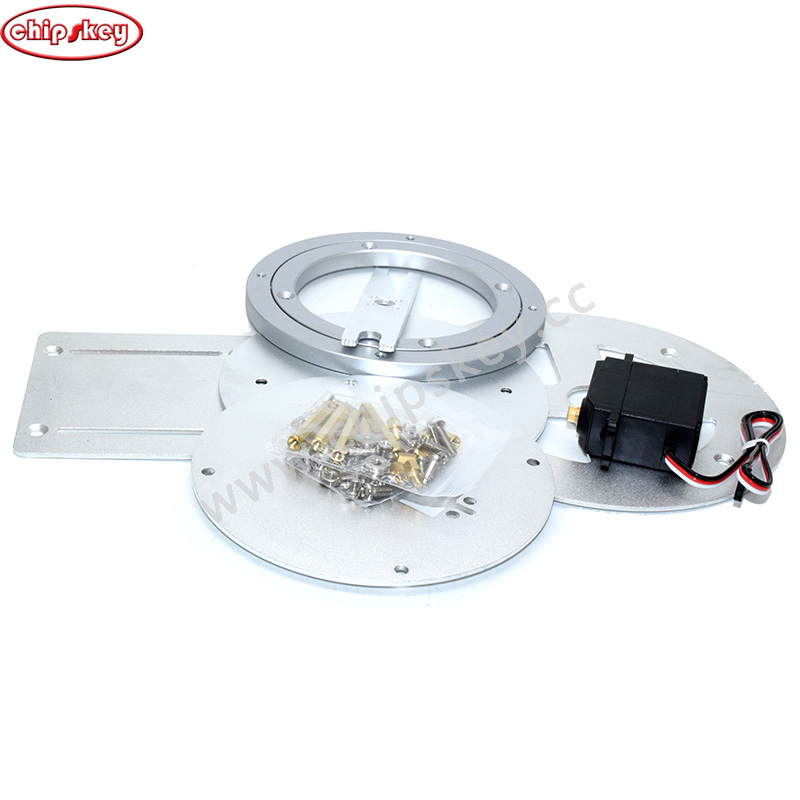

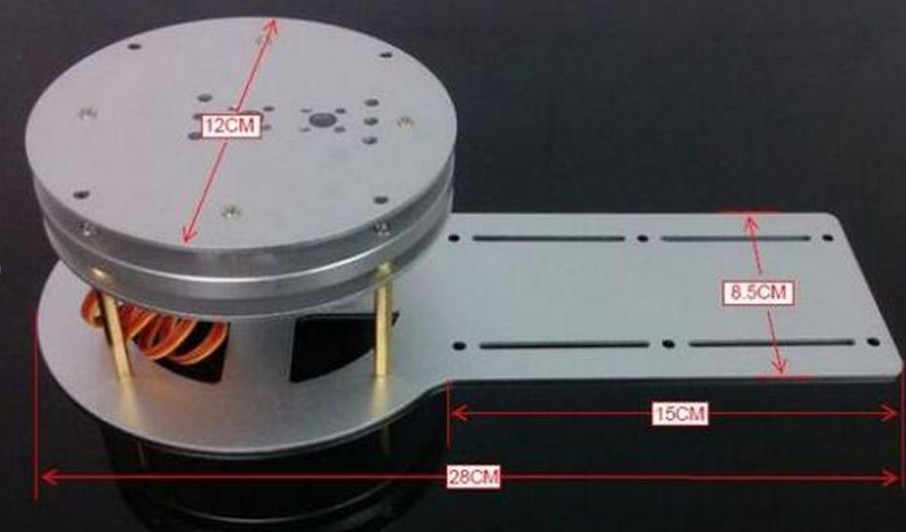

The round metal chassis has a diameter of 12CM. The bottom is driven by a servo motor driven by about 55G-60G. For the sake of product beauty, a rectangular metal base plate is specially equipped to place some electronic control equipment and power supply equipment. It is fixed on the top to facilitate the handling and movement of the system. The metal base plate is detachable, so that the upper half of the rotating disc can be applied to other devices as a rotating bracket, a rotating pan/tilt, such as other sensors such as a camera. The complete structure is made of 2mm thick hard aluminum alloy mold-opening, no plastic structural parts, the whole set of equipment is firm in structure, small and light in shape, can be used for mechanical and electronic DIY enthusiasts to study and study, educational teaching experimental platform kit, school creative interest technology Activities, etc., the circular base flexible installation is used in a variety of college students and young people's technology competition products, adding functionality to your work, creativity!



The metal disc base adopts a ball bearing method with low friction force to disperse the weight of the whole robot arm on the bearing, and the lower torque motor drives the bearing to rotate, the friction is small, and the structure is simple and compact.
