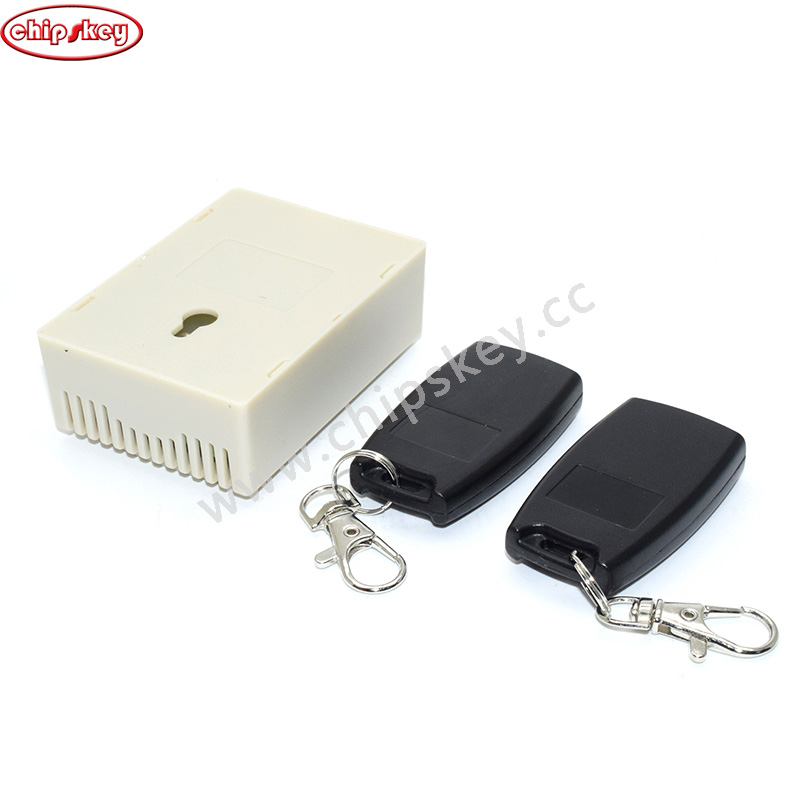

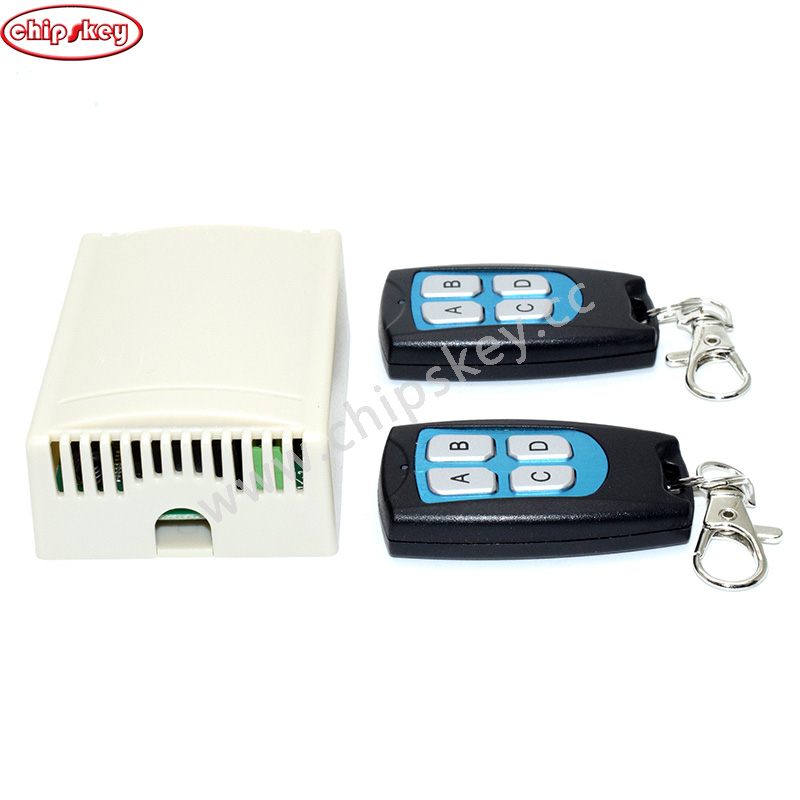

Remote Control 12V 4CH Channel 433Mhz Switch Integrated Circuit With 2 Transmitter DIY Replace Parts Tool Kit
Product parameters
1. Input voltage: DC 6V~30V
2. Receiving frequency: 433MHz
3. Standby current: 5mA
4. Compatible chip: EV1527
5. Receiving sensitivity: -108dbm
6. Remote control distance: 20-50m
7. Working mode: Inching, interlocking, self-locking, two-way inching+two-way self-locking, two-way self-locking+two-way interlocking,
Two way jog+two way interlock. (All methods are selected through the controller buttons)
8. Wiring terminals: NO (normally open), COM (common terminal), NC (normally closed)
9. Extreme working temperature: -15~75 ° C
10. Modulation method: ASK
Functional Description of Wiring Terminals
1. (+V - positive input of power supply)
2. (GND - Negative input of power supply)
3. (1 relay normally open end) (2 relay common end) (3 relay normally closed end)
4. (4 Relay Normally Open) (5 Relay Common) (6 Relay Normally Closed)
5. (7 Relay Normally Open) (8 Relay Common) (9 Relay Normally Closed)
6. (10 Relay Normally Open) (11 Relay Common) (12 Relay Normally Closed)
