product description

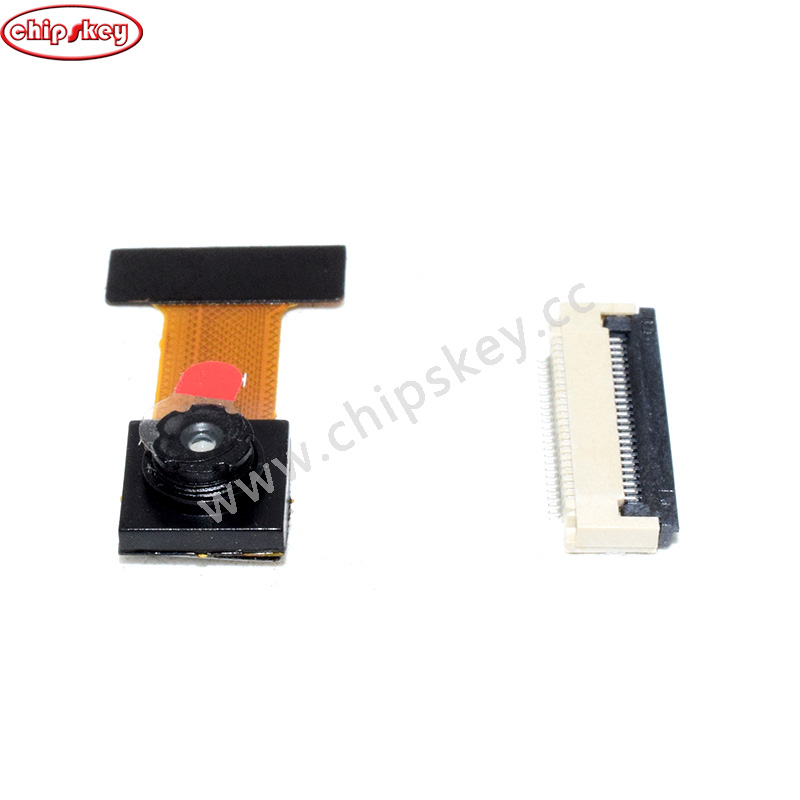

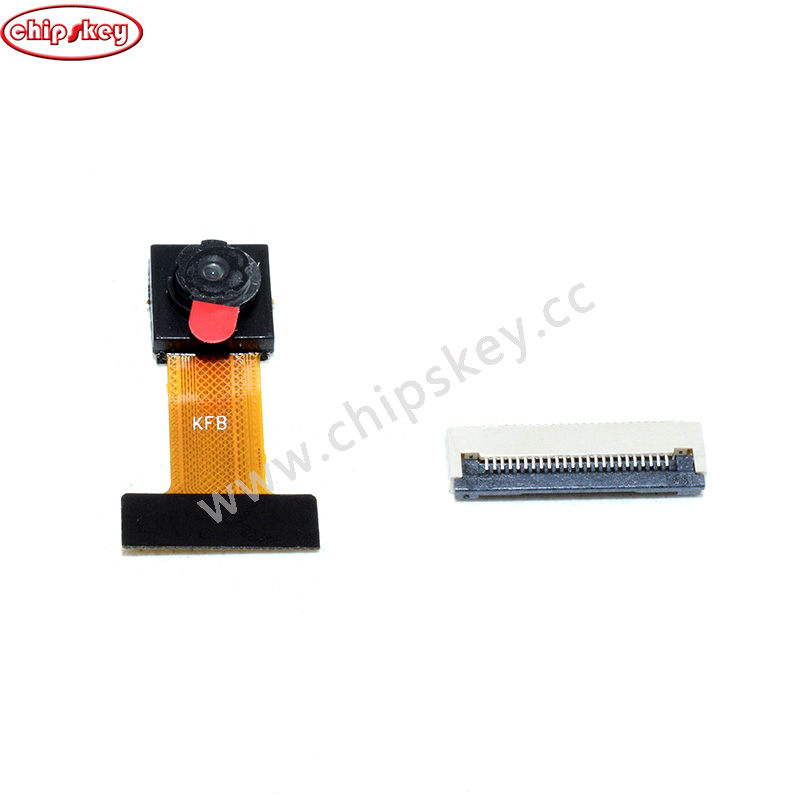

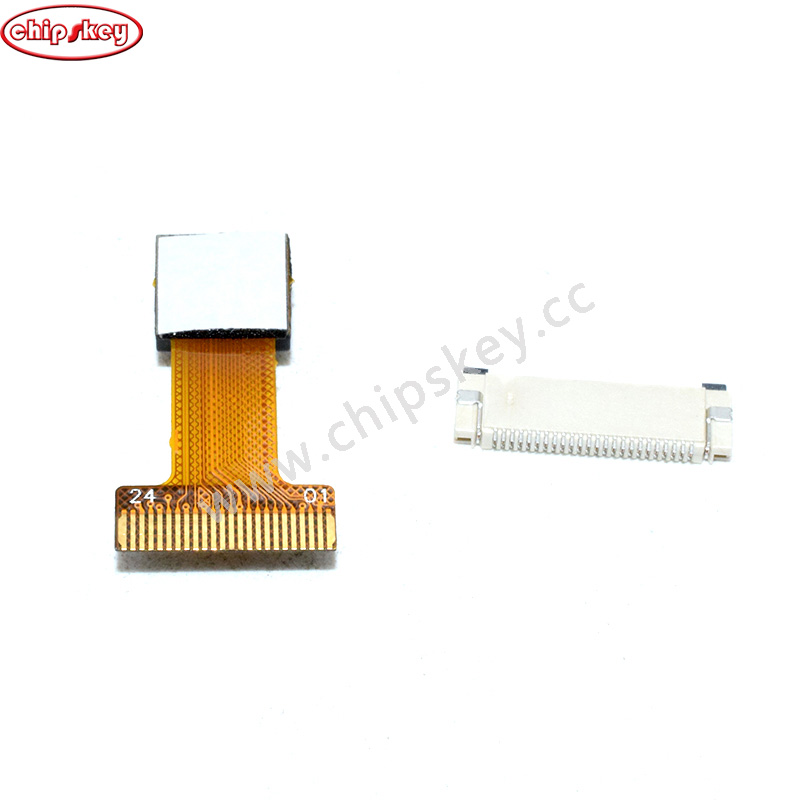

Sensitive array 640X480 IO Voltage 2.5V to 3.0V (Internal LDO to Nuclear Power 1.8V) Power consumption 60mW / 15fpsVGAYUV Sleep less than 20μA Temperature Operation -30 ° C to 70 ° C Output Format (8 bit) YUV / YCbCr4: 2: 2 RGB565 / 555/444 GRB4: 2: 2 RAW RGB Data Output Format SODIAL (R) 30W pixels OV7670 camera module with line (30W pixels) Steady Operation 0 ° C to 50 ° C Optical Dimensions 1/6 inch Viewing Angle 67 ° 30fps Maximum Rate VGA Sensitivity 1.3V / (Lux-sec) SNR 46 dB Dynamic Range 52 dB Progressive Browsing Mode Electronic Exposure 1 Line to 510 lines of pixel area 3.6μm x 3.6μm dark current at 60 degrees Celsius for 12 mV / s
