description

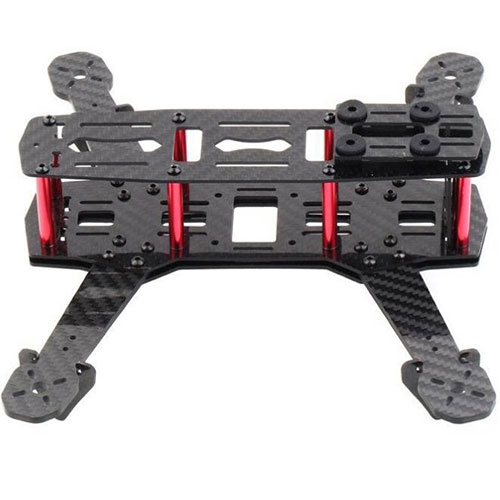

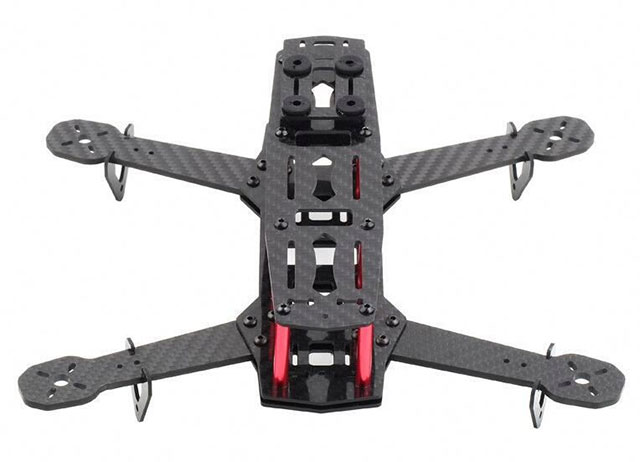

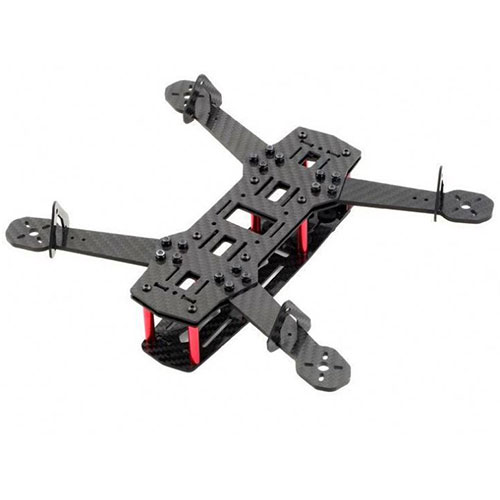

Mini Quartet is a low weight mini sports FPV Quadcopter frame. ? It is designed to use the standard size of electronic equipment commonly used in RC. This allows the quadcopter to compete with the larger quadcopters, while being more compact and flexible! The use of miniature 4-axis robots requires extensive welding, wire shortening and power distribution system creation. This product requires good RC system knowledge and is not recommended for beginners. Product specifications ??? Material: Carbon fiber ???? Fasteners: stainless steel and red metal 8/8 ???? Dimensions: 220mm diagonal, 175mm wide and 130mm long motor-to-motor; about half the size of a conventional quadcopter ???? Maximum propeller: 5 " ???? Motor Mounting: M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv) ?? Flight Controller Installation: 30.5mm x 30.5mm Motherboard Camera Installation: 32mm x 32mm Suggested components Motor: 1806 "Power 3S" 2300kv motor Propeller: 5x3 ESC: 12amp SimonK ESC Battery: 3S 1300mah Flight Controller: MW, KK, Naze32, Flip Pro
