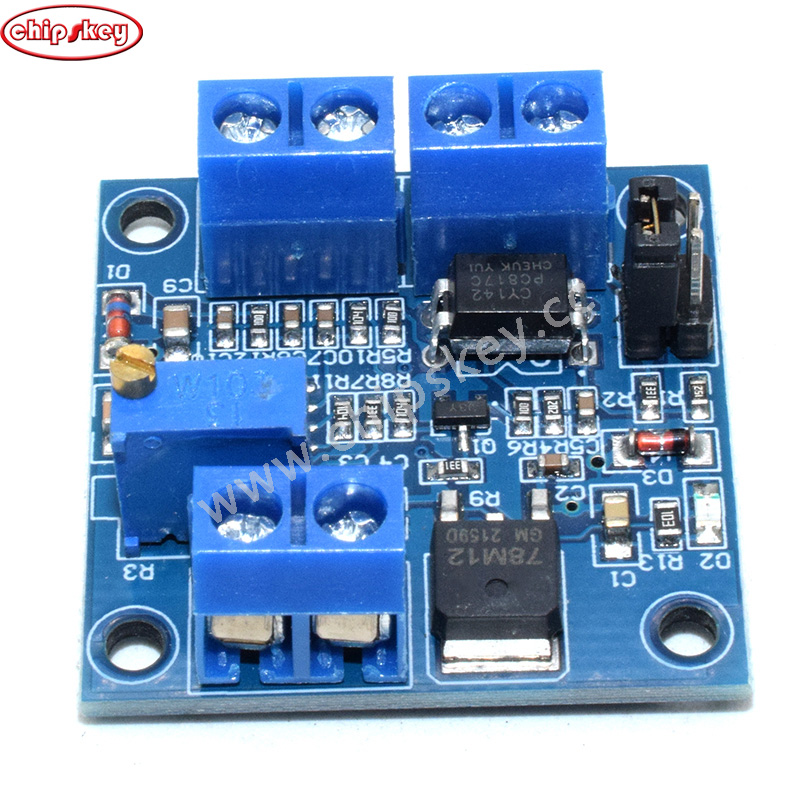

PWM to Voltage Converter Module 0%-100% to 0-10V for PLC MCU Digital to Analog Signal PWM Adjustabl Converter Power Module

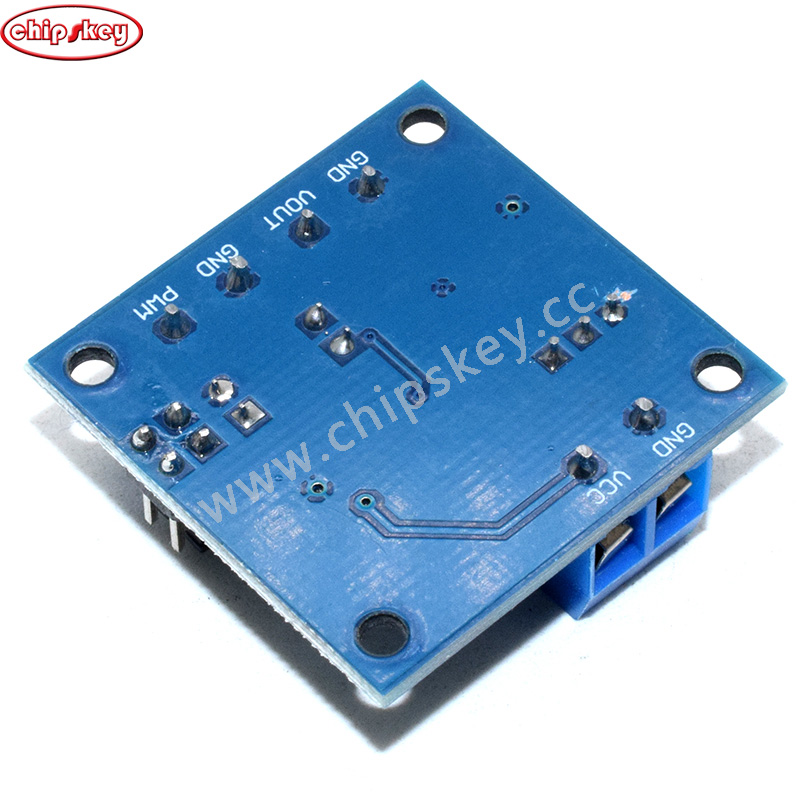

VCC: working power 12V-30V

GND: working power supply ground

PWM: input PWM signal positive terminal

GND: input signal negative terminal

VOUT: output voltage 0-10V

GND: output voltage ground



instructions:



It can be used for signal interface switching of PLC or other industrial control boards. Adjust the output voltage by adjusting the duty cycle of PwM.

The module is small in size and easy to apply in different places.



The embedded technology of single chip microcomputer is adopted, which is easy to operate. The potentiometer can be used to fine tune, and the PWM signal input level range can be selected through short circuit. The module is small, easy to carry and use.


Technical parameters:


(1) Working voltage of module: DC 12V-30V; (Power requirement: more than 100MA)

(2) PWM signal receiving frequency range: 1KHZ-3KHZ;

(3) PWM signal input level range:

(4) The peak to peak value is 4.5V to 10V, and the jumper pin is inserted at 5V. This kind of level signal is mainly aimed at the interface of conventional industrial control card (such as MACH3 card) and 5V CPU;

(5) The peak to peak value is 12 to 24V, and the jumper pin is inserted at 24V. This kind of level signal is mainly used for conventional PLC interface.

(6) Conversion range: 0% - 100% PVM conversion to 0-10V voltage
