PWM to PPM Encoder for Pixhawk/PPZ/MK/MWC Pirate PPM Encoder

Pixhawk PPM Encoder PPZ MK MWC MegaPirate APM Multiwii Flight Controller
?
The PPM encoder plugs into the PWM servo output port of any R / C receiver and encodes it into a PPM pulse suitable for many autopilots such as Pixhawk. Modifications to the R / C receiver are not necessary.
?
The entire project is based on the ATMEL Atmel168 AVR processor and all timing is done within the downtime, so accuracy and stability are optimized.
?
The firmware is free, created by John Arne and Olivier Adler.
?
PPM encoder design is based on Paperazzi PPM encoder.
?
Important: The firmware is preconfigured to read 8 channels. If you want to change the PPM encoder settings to reverse the PPM signal and change the failsafe predefined value, you need the AVR ISP programmer to reprogram it.
?
Board jumpers are not soldered by default. In this case, FC-powered boards

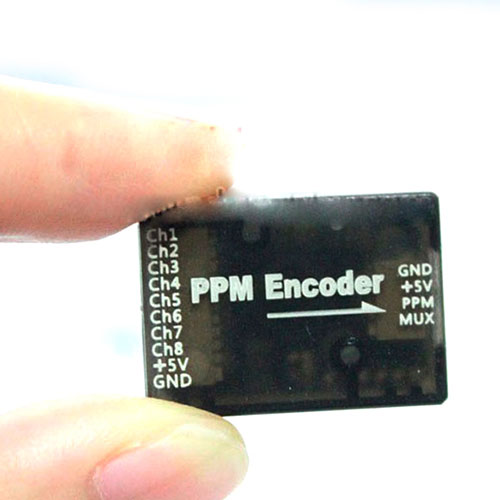

· Size (mm): 28 x 19 x 5
· Weight (g): 9 (including all wires)
?

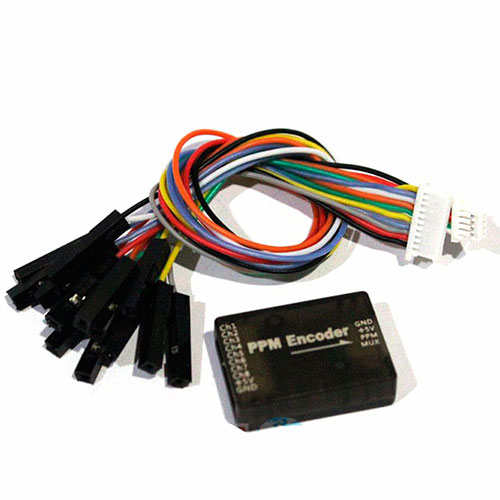

Package Included:

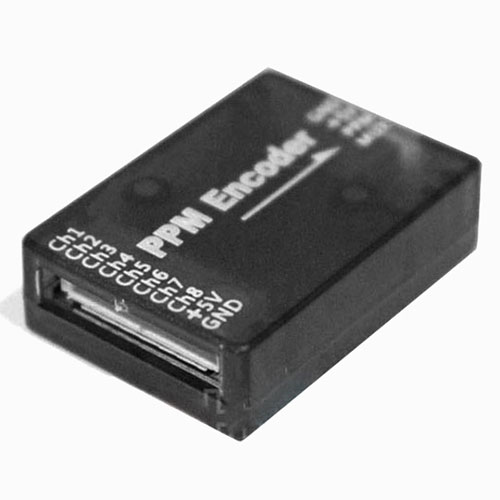

PPM encoder (black) x 1
10-pin input cable 60mm X 1

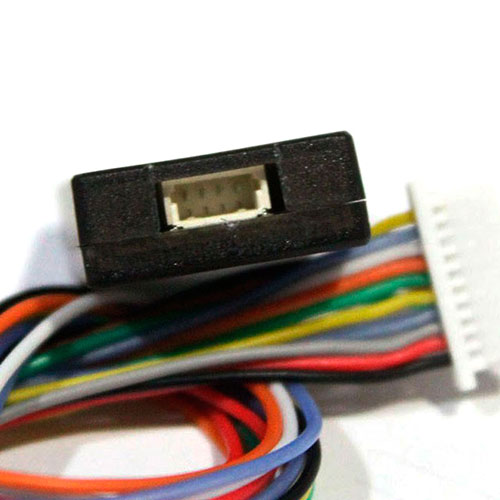

4 pin output cable 100mm X 1
