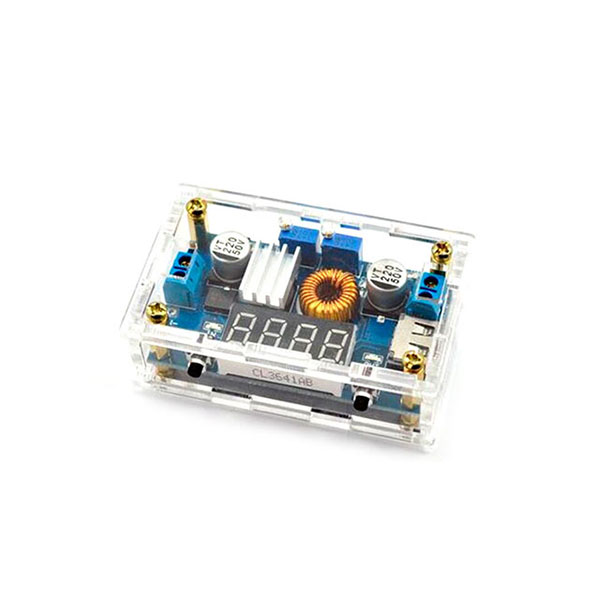

Power adjustable DC 24V / 12V turn 5V buck module / step-down constant current power supply chip 3V6V

Power adjustable DC 24V / 12V turn 5V step-down module / step-down constant current power supply chip 3V6V product description ?Power adjustable DC 24V / 12V turn 5V step-down module / step-down constant current power supply chip 3V6V Input voltage: DC 5-36V Output voltage: DC 1.25-32V (continuously adjustable) Output Current: Adjustable, 5A Max (Please use within 4.5A) Output power: 75W maximum (please use within 50W, if the pressure is large, please reduce the power) Working frequency: 180KHz Conversion efficiency: up to 96% Operating temperature: -40 ° C - + 85 ° C Installation: 4 3mm screws Module Size: L 68.2mm * W 38.8mm * H 15mm Description: Short circuit protection: yes Over-temperature protection: Yes (automatic shutdown output after over-temperature) Input Reverse Polarity Protection: None (Input high current diode at input if necessary) Wiring: Terminals or soldered terminals, V-IN is input, V-OUT output Uses: Used as a battery charger For high-power constant current LED driver module. Used as a common over-voltage protection step-down module. Note: 1. Since the factory default output voltage is 17V. If the module can not be adjusted, the output voltage is always equal to the input voltage. When this problem is encountered, the potentiometer is rotated 10 turns or more counterclockwise so that the output voltage can be adjusted. 2. As the module output terminal string current sampling resistor, connected to the load will appear 0-0.2V voltage drop of the normal phenomenon. 3. Output power greater than 3A / 35W, please strengthen the heat! Package includes: 1 buck converter
