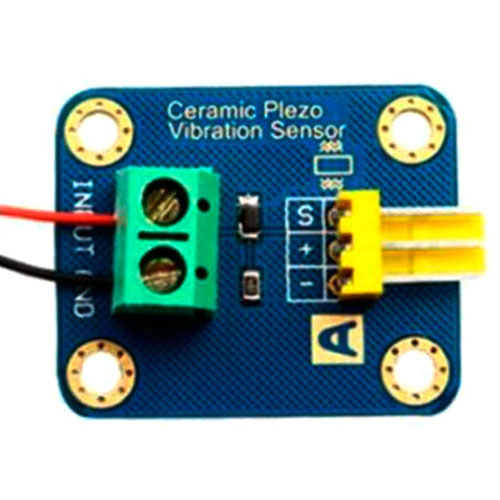

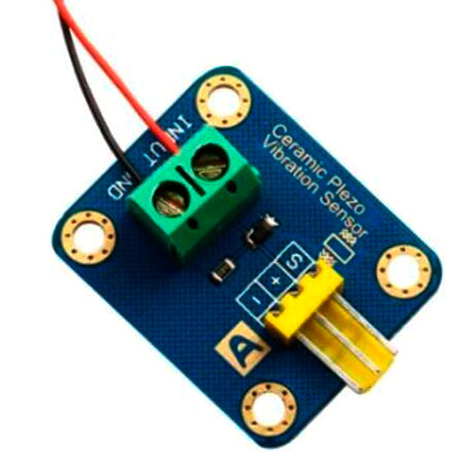

The new piezoelectric vibration sensor, the product is the use of piezoelectric ceramic on the vibration generated by the reverse process, when the piezoelectric ceramic vibration will produce electrical signals, and when combined sensor expansion board v5.0, Ard simulation interface Can sense the weak vibration signal, can interact with the electronic drum and other vibration-related work interaction.
? Performance Description: 1. Working voltage: 3.3 V or 5 V. 2. Working current: <1 mA 3. Operating temperature range: -10 ℃ ~ +70 ℃ 4. Interface Type: Analog signal output 5. Dimensions: 30 mm x 23 mm Size 6. Weight: 5 g 7. Pin Definitions: S Signal Output, + Power (VCC), - Ground (GND) 8. Enter: Anode Piezoelectric ceramic sheet 9. Ground: Piezoelectric ceramic sheet cathode
