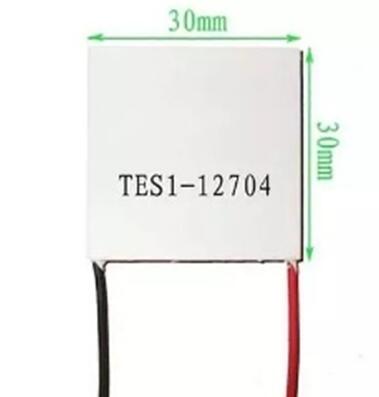

Peltier Tes1-12704 30x30
Product standards: international standard
Operating temperature range: -50-150 degred
Maximum current: 4A
Maximum voltage: 15V
Maximum cooling power: 33W+0.2

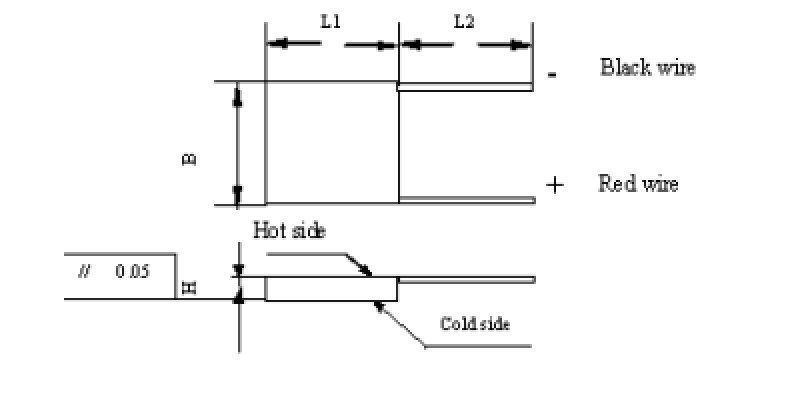

Overall dimensions : 30x30x3.2+0.05mm
Porcelain specification: 30x30x0.75+0.03mm alumina ceramic tile
Component number : 30127
Number of component pairs: 127
Temperature difference range: ≥ 65 degrees
Resistance range: 3.2-3.7OHM
Solder standards: 180 degrees
Leader standard: Soft state environmental protection standard for conductors 0.4mm2, with a length of 150mm
Leader standards: 5m dipped in 180C lead tin
Sealing standard: White 704 glue
Typing standards: Printing Cold Face TES1-12704
