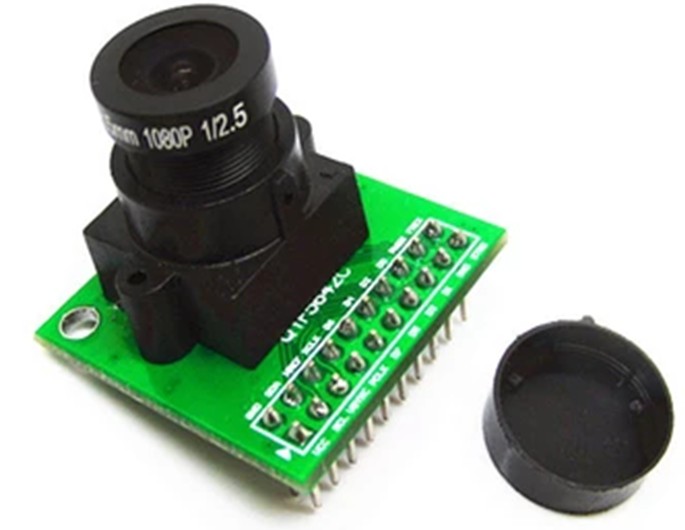

OV5640/OV5642 5 million camera module image sensor JPEG output high pixel
OV5642 5 million camera module with JPEG high-pixel camera module manual fine-tuning focusing
Sensor name: OV5642.
Sensor pixel: 5 million pixels 2592*1944.
Support sensor comes with JPEG/MJPEG compression.
Provide the SCCB JPEG configuration reference for this module.
Camera module, interface compatible with official brother.
Parameter characteristics
Support RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV422, JPEG and other formats of image data output.
The module integrates 24MHZ active crystal oscillator, which is more convenient to use.
Supports up to 2592*1944 size image output.
Mega Pixel: 2592*1944 15FPS
1080P: 1920*1080 30FPS
720P: 1280*720 60FPS
VGA: 640*480 60FPS
Q VGA: 320*240 120FPS.
Optical size 1/4", pixel area 1.4 μm x 1.4 μm, sensitivity up to 600mV/Lux-sec.
Single power supply: 3.3V--5.0V.
The lens is made of high quality and high light transmittance. 1080P 2.5MM 1/4 wide-angle glass lens plus full magnesium alloy lens.
Module size 3cm x 3cm (+/- 0.5mm), 2*10 interface / 2.54 pitch pin header.
