nRF24L01 PA + LNA wireless module 2.4G remote data transmission industrial serial high power wireless transceiver module

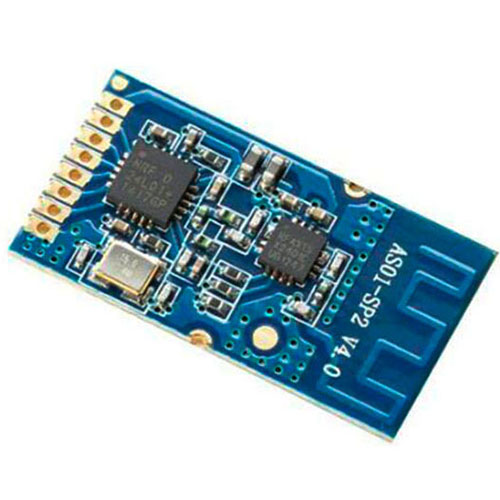

product description ? ???AS01-ML01SP2 is a 2.4GHz, 100mW, high speed (maximum air speed up to 2Mbps), high stability of the industrial wireless transceiver data transmission module. ???Module comes with high performance PCB antenna, accurate impedance matching, using the original nRF24L01P NORDIC RF chip and RFX2401C amplifier chip, built-in LNA, receiver sensitivity increased by 10dBm, working in the 2.4GHz ~ 2.5GHz ISM band. ???The module transmits enough power, spectral characteristics, small harmonics, small-channel crosstalk, small size, and all Murata raw materials, industry-standard models. ? ? feature It is equipped with high performance PCB antenna, the limit up to 1500 meters Small size 25x13mm, 1.27mm single-chip package Operating frequency range: 2.400GHz ~ 2.525GHz Wide voltage range: 1.8V ~ 3.6V Operating temperature range: -40 ℃ ℃ ~ +70 ℃ Four adjustable transmit power Data transfer rate support 250Kbps, 1Mbps, 2Mbps Receive current 23mA, 20dBm power emission current of 130mA, power-down mode only 1uA 6 data channels, 126 communication channels, 1MHz steps CRC checksum and multipoint address enhancement "ShockBurst" mode, control hardware Each packet can be transmitted 1 ~ 32Byte data 4-wire SPI communication port, communication speed up to 10Mbps, suitable for connection with a variety of MCU, programming simple Software can set the working frequency, mailing address, transfer rate and packet length Module IRQ interrupt output indication ? ? application Hotel electronic locks, biometric access control system Intelligent teaching equipment, infant care, medical ward call system Household appliances and lighting intelligent control Water, electricity, gas, warm automatic meter reading or reactive compensation system and network monitoring LED screen wireless transmission of text, pictures and radio control Wireless crane scale, vehicle monitoring, equipment aging test wireless mouse, keyboard, joystick game console UAV long-range communication Wireless access Wireless data communication Security system Remote control device telemetry Intelligent sports equipment Industrial sensor toy
