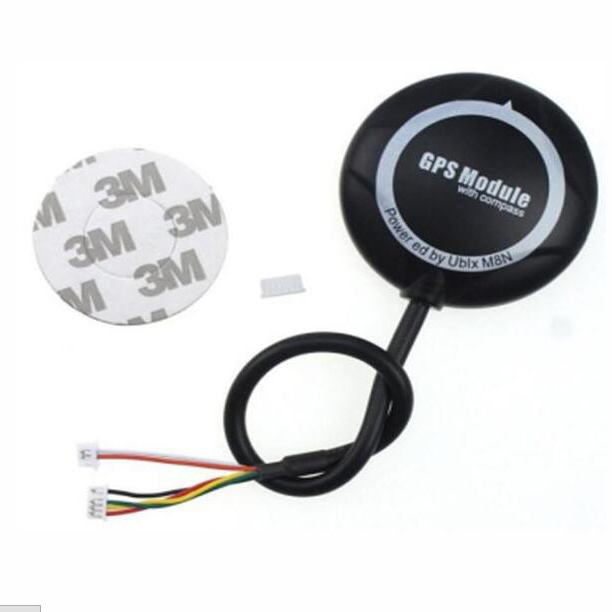

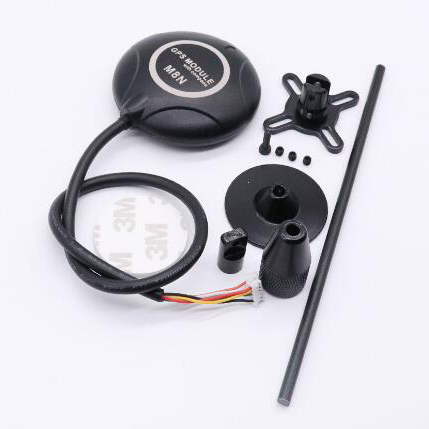

NEO-8N PIXHAWK GPS

Features: Receiver type 72-channel  M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N) Nav. update rate1 Single GNSS: up to 18 HZ Concurrent GNSS: up to 10 Hz Position accuracy2 2.0 m CEP Acquisition2 Cold starts: 26 s Aided starts: 2 s Reacquisition: 1.5 s Sensitivity2 Tracking & Nav: ¨C167 dBm Cold starts: ¨C148 dBm Hot starts: ¨C156 dBm Assistance AssistNow GNSS Online AssistNow GNSS Offline (up to 35 days)3 AssistNow Autonomous (up to 6 days) OMA SUPL & 3GPP compliant Oscillator TCXO (NEO-M8N/Q), Crystal (NEO-M8M) RTC crystal Built-In Noise figure On-chip LNA (NEO-M8M). Extra LNA for lowest noise figure (NEO-M8N/Q) Anti jamming Active CW detection and removal. Extra onboard SAW band pass filter (NEO-M8N/Q) Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N) Supported antennas Active and passive Odometer Travelled distance Data-logger For position, velocity, and time (NEO-M8N) Specifications: - tracking sensitivity:-161dBm - Capture sensitivity:-148dBm - cold start time:38s average - Warm start time:35s average - hot start time:1s average - Capture time:0.1s Average - Temperature:40 to +80 - wide power supply voltage:+3.5V~+5.5V GPS Module V2.0 Color: black Size: approx. 53mm/2.1 inch(D) Net weight: approx. 31g Package Included: 1 x NEO-M8N GPS Module(other installation accessories are included) 1 x sticker (Retail package is not included)
