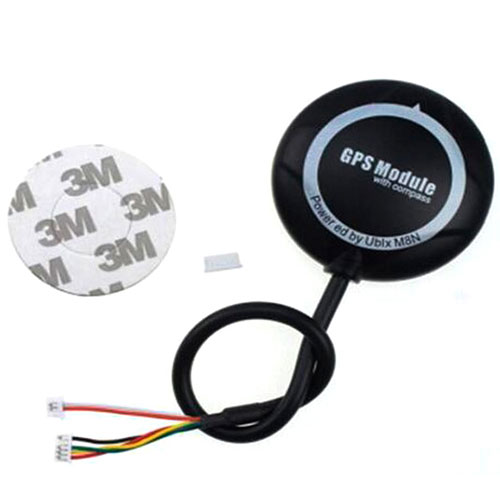

NEO-8N APM GPS

Features: Low power, high precision Ultimate accuracy: 0.6 meters, greater than the previous generation (NEO-7N accuracy 1.4 ~ 1.6 meters) support GPS / QZSS L1 C / A, GLONASS L10F, Beidou B1 protocols. Product Specifications: Receiver Type: 72-channel  M8 engine GPS / QZSS L1 C / A, GLONASS L10F, Compass B1 agreement SBAS L1 C / A: WAAS, EGNOS, MSAS Galileo Ready E1B / C (NEO-M8N) Acquisition2 Cold Start: 26 seconds Auxiliary start: 2 seconds Re-capture: 1.5 seconds Sensitivity 2 Tracking and Navigation: 167 dBm Cold start: 148 dBm Hot start: 156 dBm AssistNow GNSS Assist online GNSS offline (up to 35 days) AssistNow Autonomous (up to 6 days) OMA SUPL and 3GPP standards Oscillator TCXO (NEO-M8N / Q), Crystal (NEO-M8M) RTC crystal built-in Noise figure on-chip LNA (NEO-M8M). Extra LNA The lowest noise figure (NEO-M8N / Q) Anti-interference active CW detection and removal. additional Onboard SAW bandpass filter (NEO-M8N / Q) Memory ROM (NEO-M8M / Q) or Flash Memory (NEO-M8N) Antennas Supported: Active and Passive Odometer: Driving distance Data logger: For position, speed, and time (NEO-M8N) Operating temperature: -40 to 85C Storage temperature: -40 to 85C (NEO-M8N / Q) / -40 to 85C (NEO-M8M) RoHS compliant (lead-free) Qualified to ISO 16750 Manufactured and fully tested at ISO / TS 16949 certified production sites According to AEC-Q100 qualified M8 chip Supply voltage: 1.65 V to 3.6 V (NEO-M8M) / 2.7 V to 3.6 V (NEO-M8N / Q) Power Consumption: 4 23 mA @ 3.0 V (continuous) / 5 mA @ 3.0 V Power Saving Mode (1 Hz, GPS Mode Only) Standby power supply: 1.4 to 3.6 V. NEO-M8N-0 M8 Concurrent GNSS LCC Module, TCXO, Flash, SAW, LNA, Time Pulse configuration: 0.25 Hz to 10 MHz
