Nano V3.0 ATmega168 CH340 CH340G Mini USB Microcontroller Module Development Board for Arduinos

Brand new arduino nano v3, mini usb interface, atmega328p main control chip, 32k flash memory, support Misic mixly graphical programming

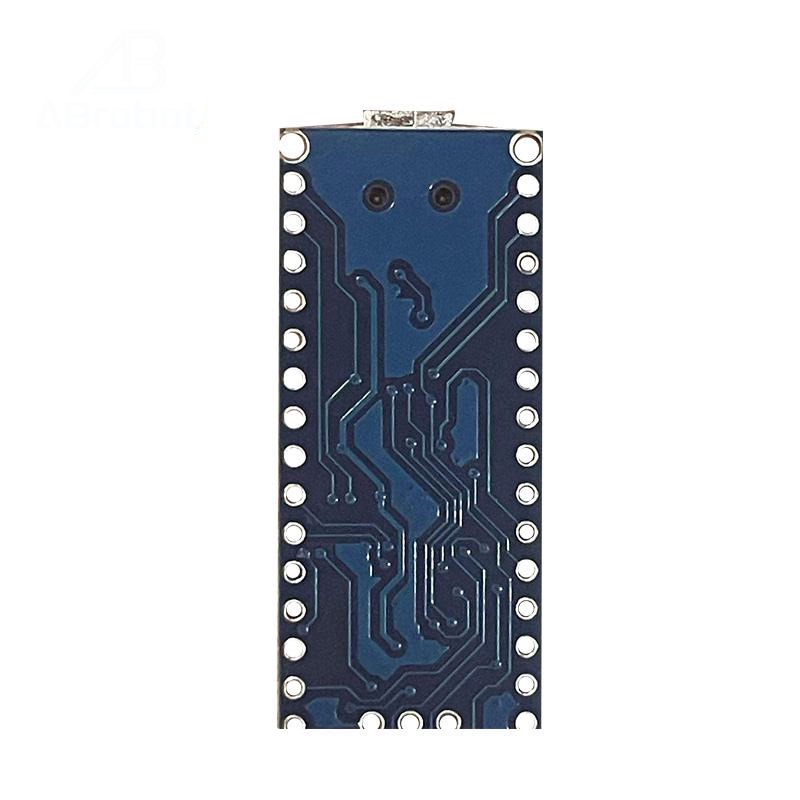

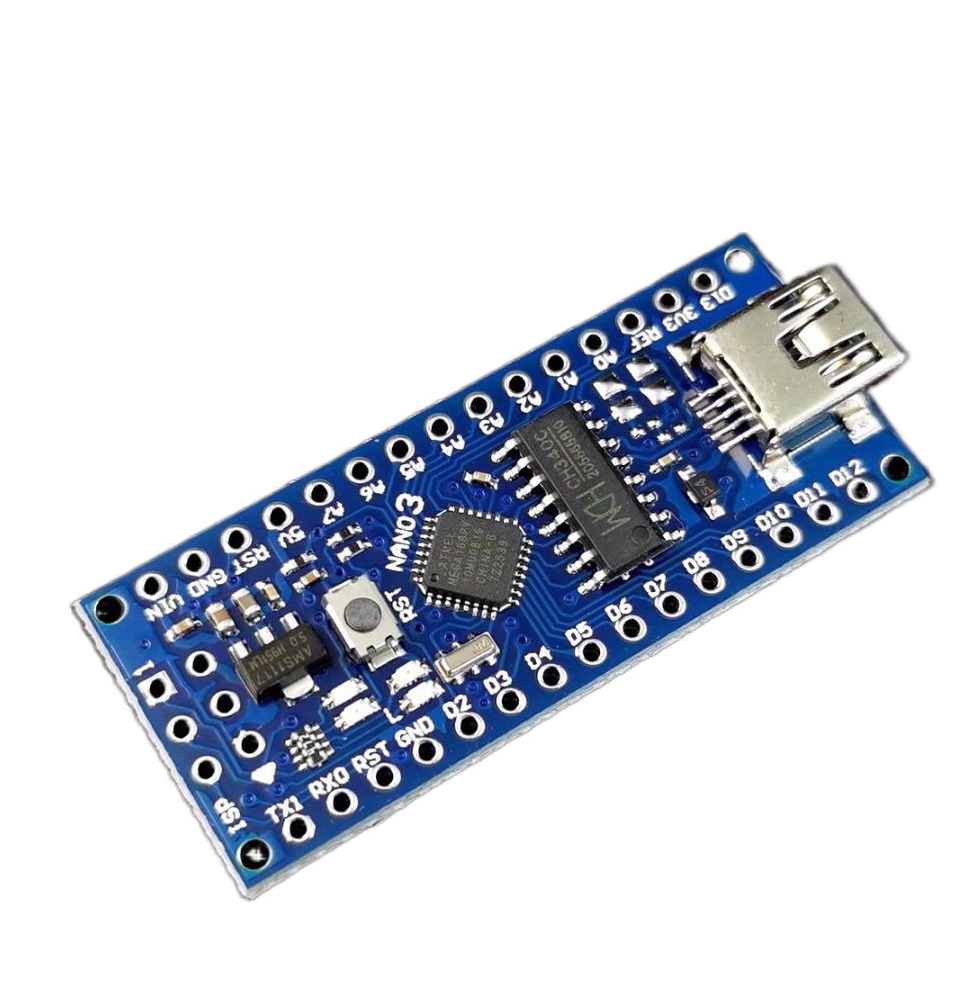

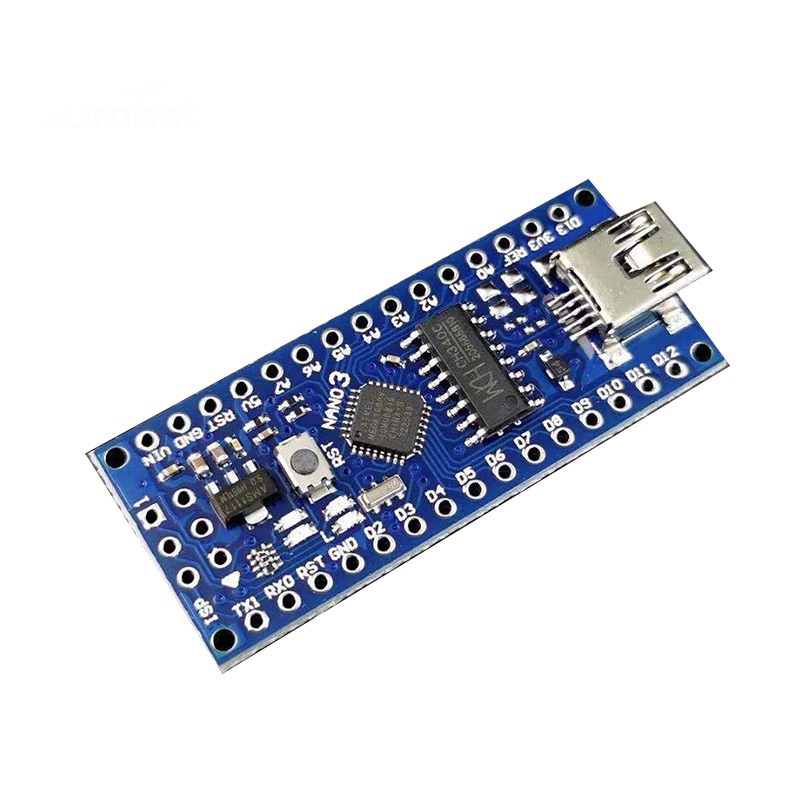

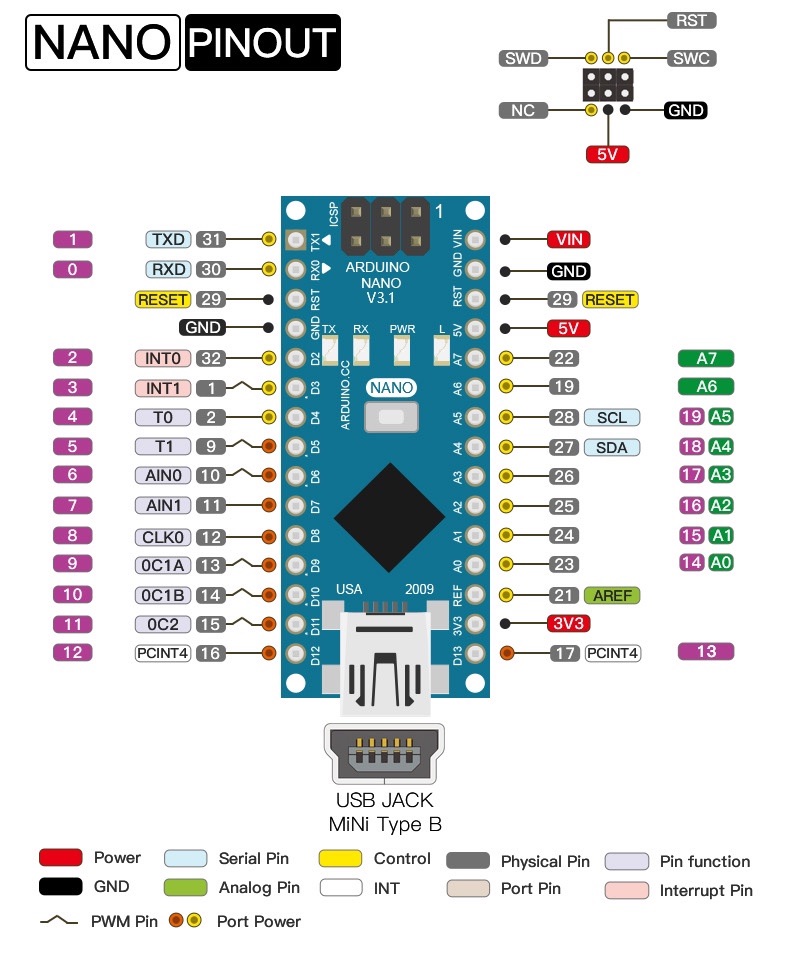

Description: New version - Nano V3 built on ATmega328 minicontroller (16MHz) with small form factor for use with mock-up boards for solderless wiring (breadboard). It has a similar construction to Diecimila/Duemilanove, but differs in size. To reduce size, components are mounted on both sides of the PCB. The board uses CH340G chip as converter UART-USB. Chip CH340G - is a budget solution. Under the operating frequency of 12Mhz, stable data exchange results can be obtained (follow the instructions on the computer to install the driver correctly). The Nano V3 can be powered via the miniUSB port (up to 500mA). External power supply 6-12V unregulated output VIN or 5V external power supply regulated output 5V. The power supply automatically selects the voltage value. *This Nano ATmega328 has PinOut for V3, not V2. Technical details: Nano V3 form factor ATmega328 (16Mhz) minicontroller CH340G - USB-UART interface Input voltage 6-12V Output voltage 5V/800mA, 3.3V/180mA (new product only) MiniUSB - connection socket USB port on 500mA resettable fuse
