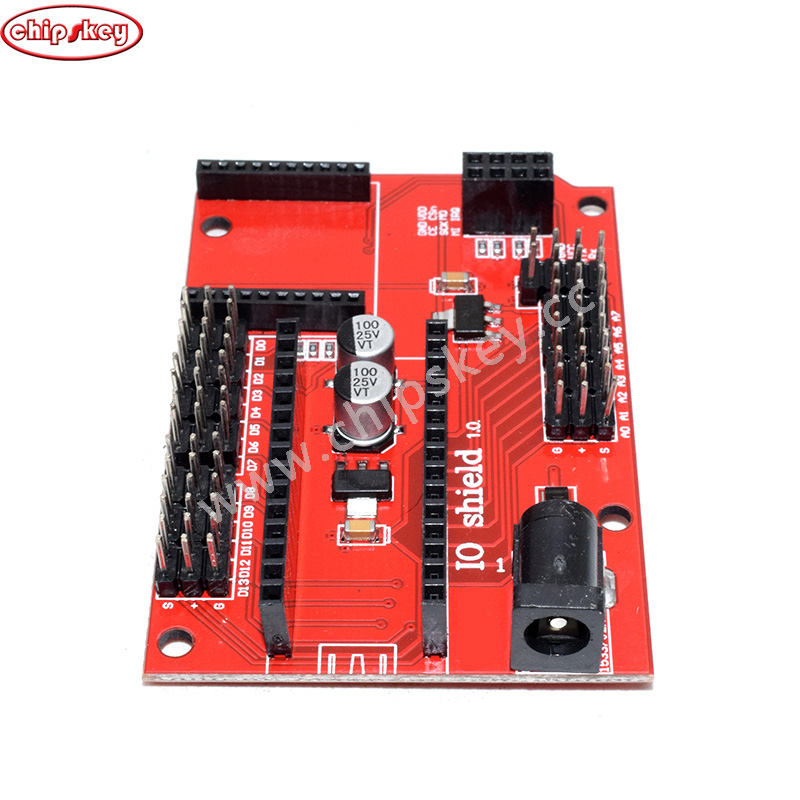

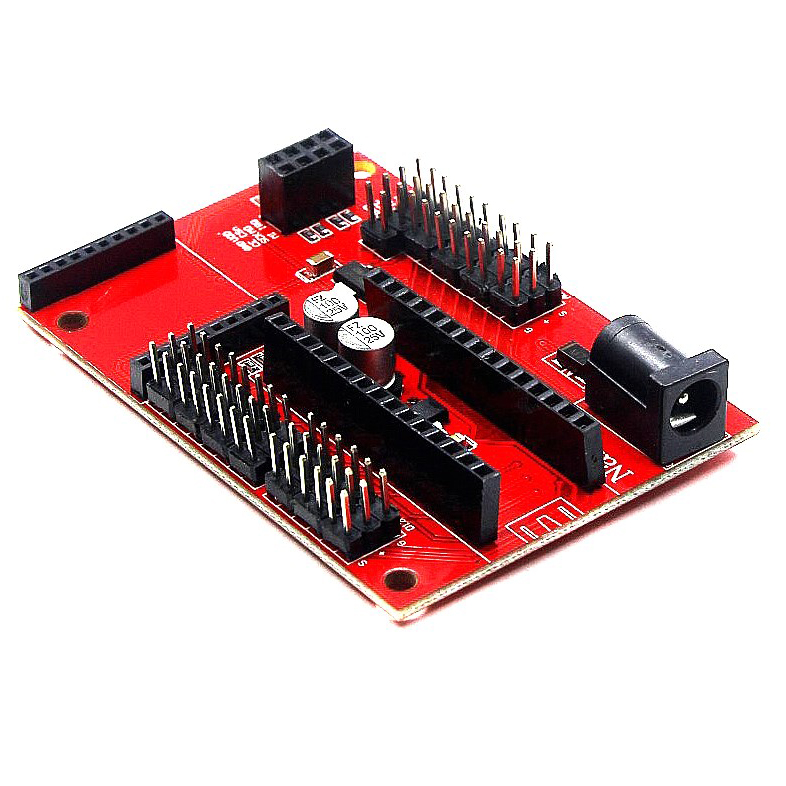

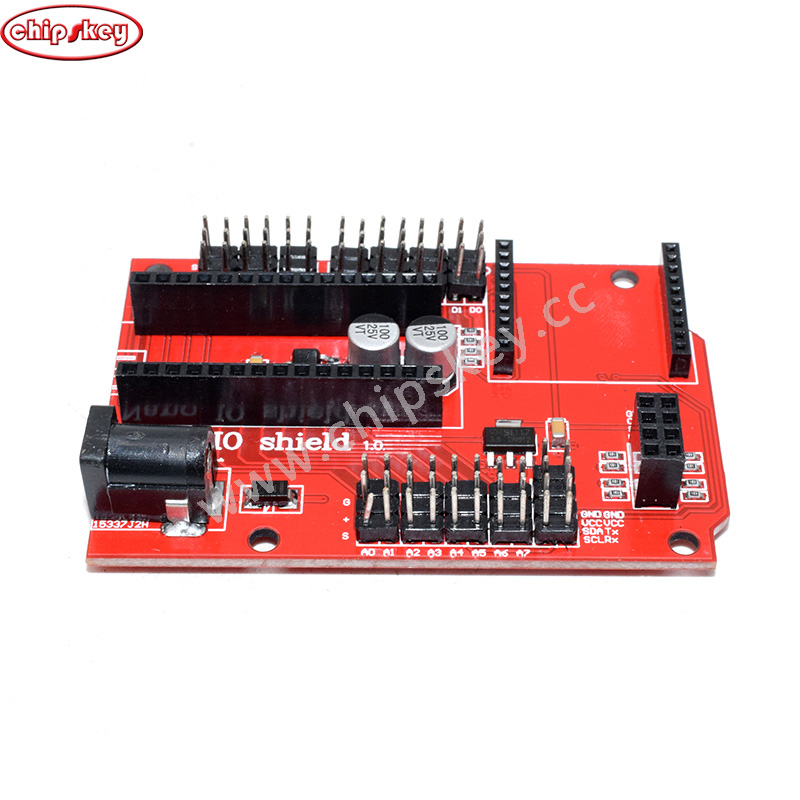

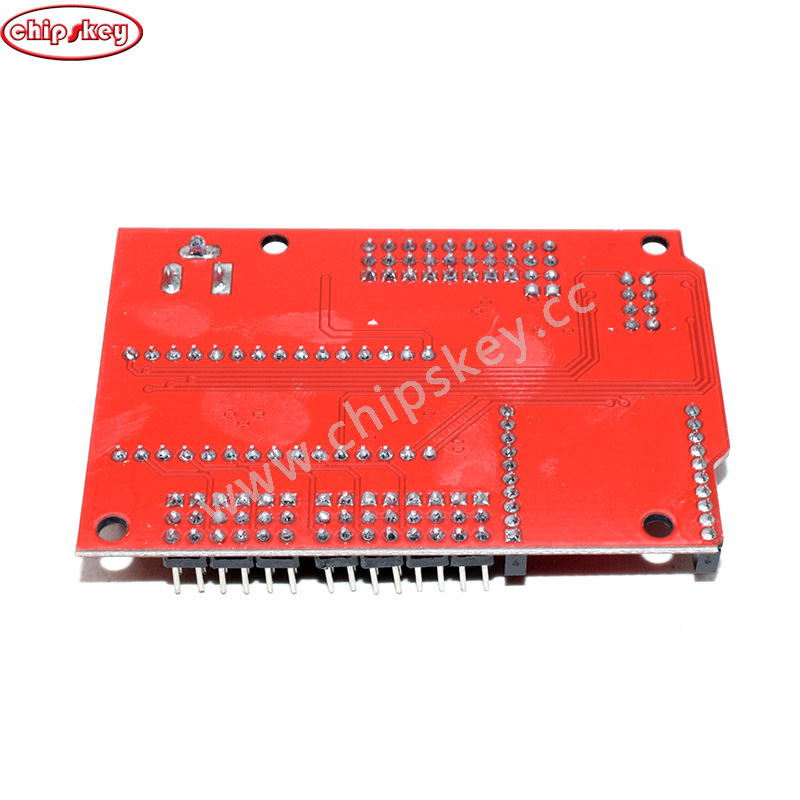

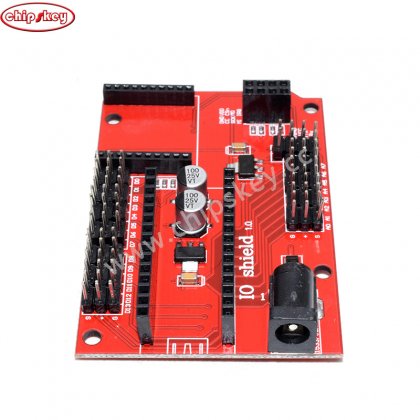

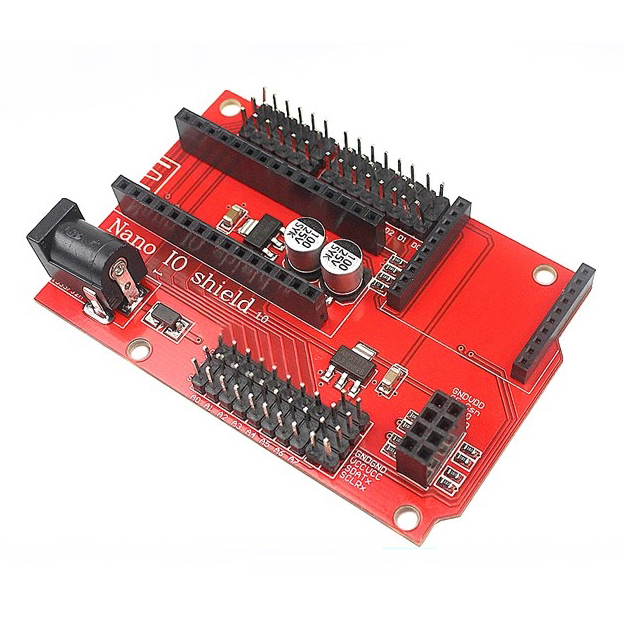

NANO IO expansion board

This expansion board provides all IO outlets for the Arduino Nano 328P. Lead out the electronic building block/sensor interface of 3pin. In addition, external power input terminals are provided to support external 7-12V input. With XBee socket and 24L01 socket, it extends the wireless function of Arduino Nano.







The Nano IO expansion board is a distribution board of Arduino Nano. It leads out the so-called 3PIN interface for all pins as electronic building blocks, Zigbee XBee series modules and nRF24L01 wireless interface. Support 7-12V external power supply
