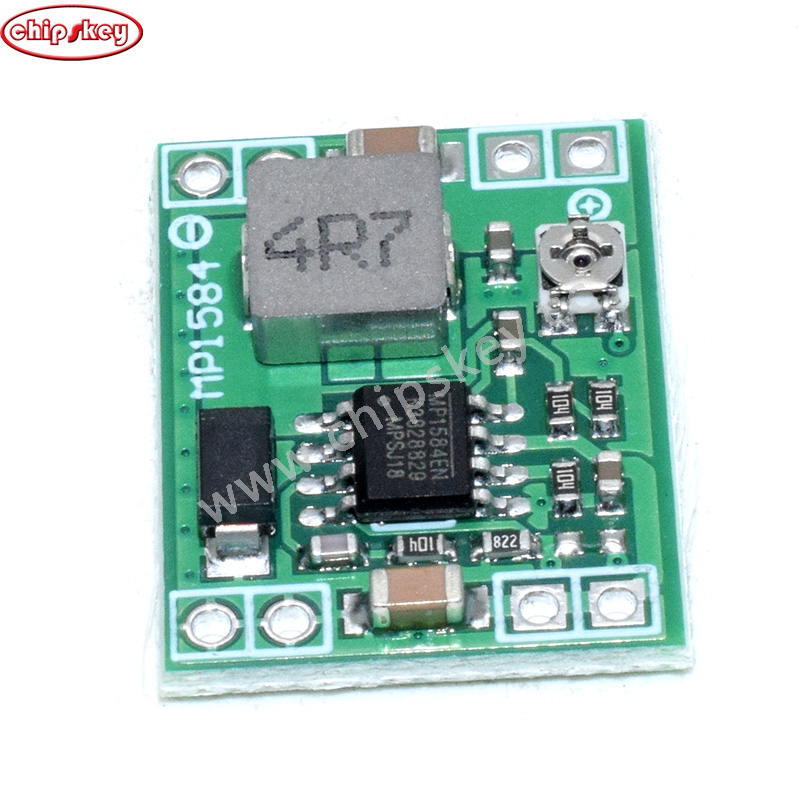

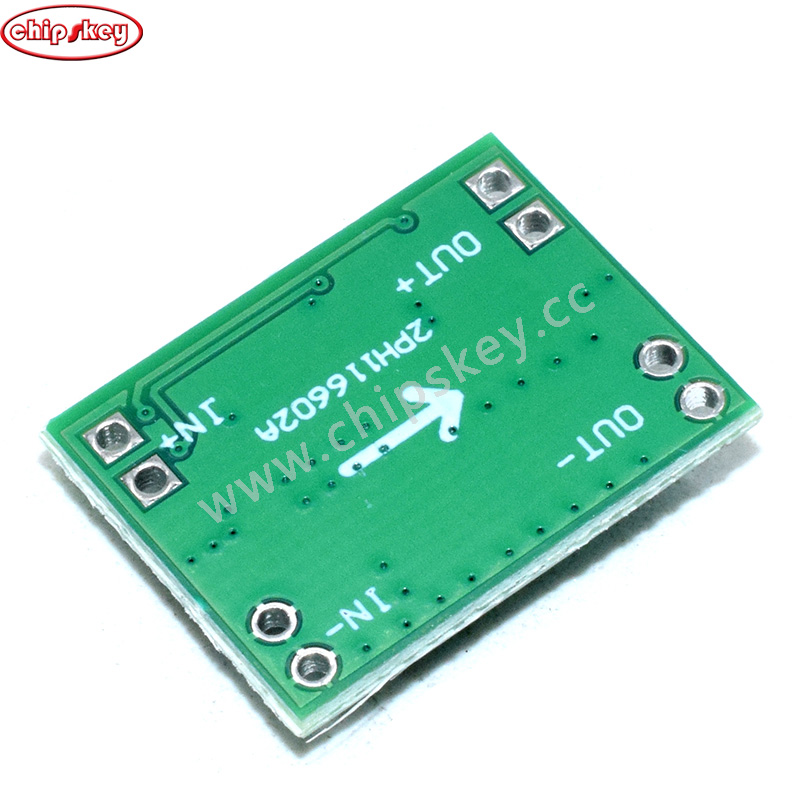

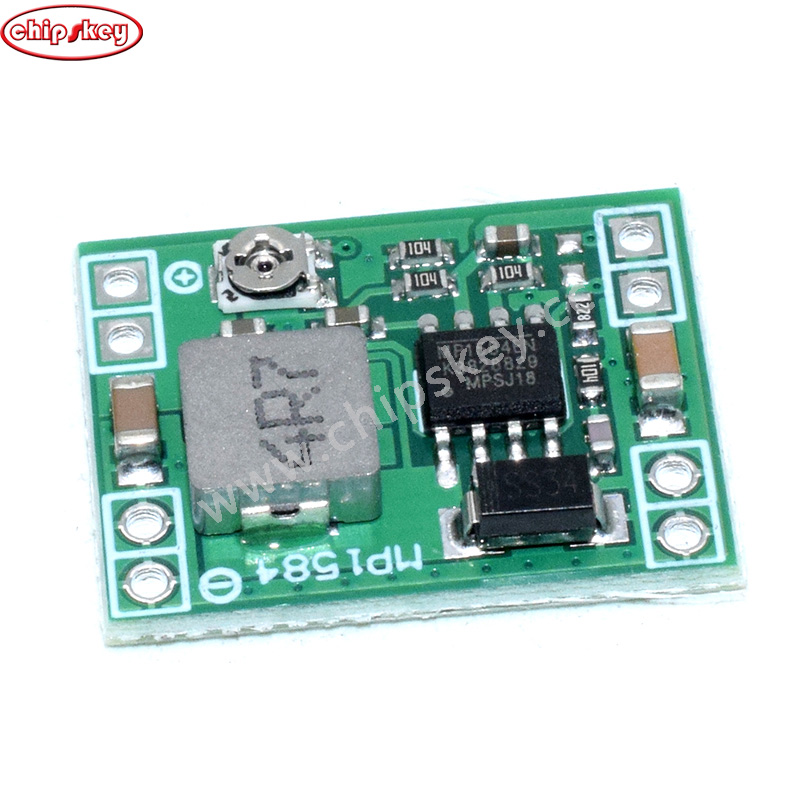

MP1584EN 3A DC to DCStep-down Voltage Regulator Buck Converter M

product description:
IC chip: Monolithic Power System (MPS) MP1584EN
Input voltage: 4.5V to 28V
Output voltage: 0.8V to 20V
Output current: 1.8A typical (3.0 maximum)
Output ripple frequency: 340KHz
Ripple voltage: 30mV
Output accuracy: +/- 0.5%
Size: 1.7 x 1.7 x 0.4 cm
Operating temperature: -50 ~ +85 ℃ C

product information
Product size 1 × 0.2 × 1 inch
Product weight 0.32 ounces
