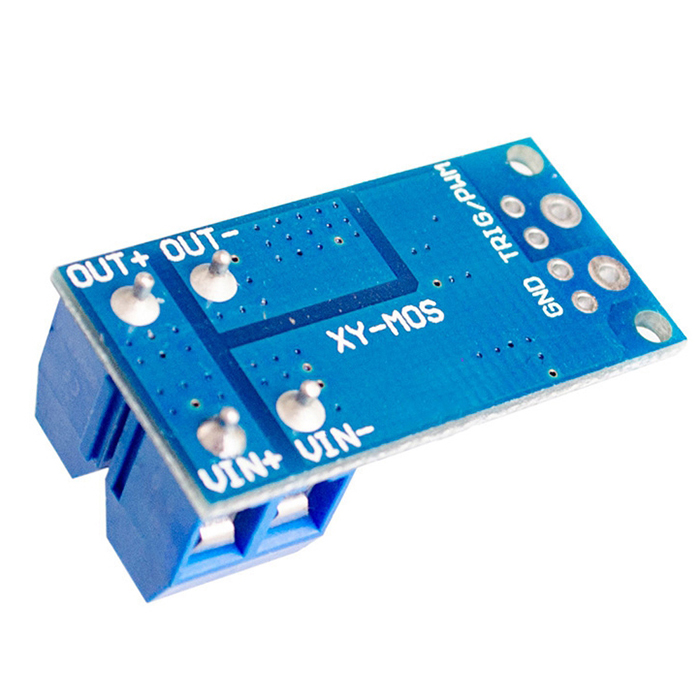

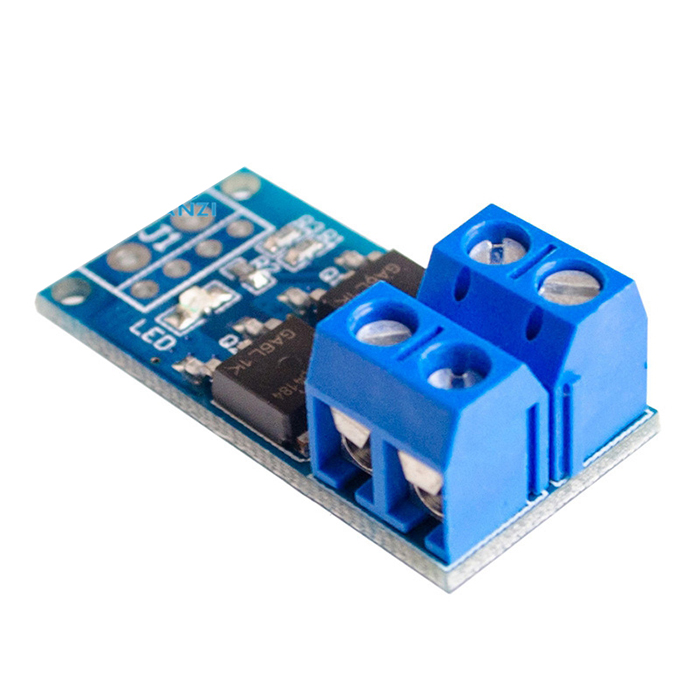

High-power MOS tube FET Trigger switch drive module PWM regulation electronic switch control board
Module highlights:

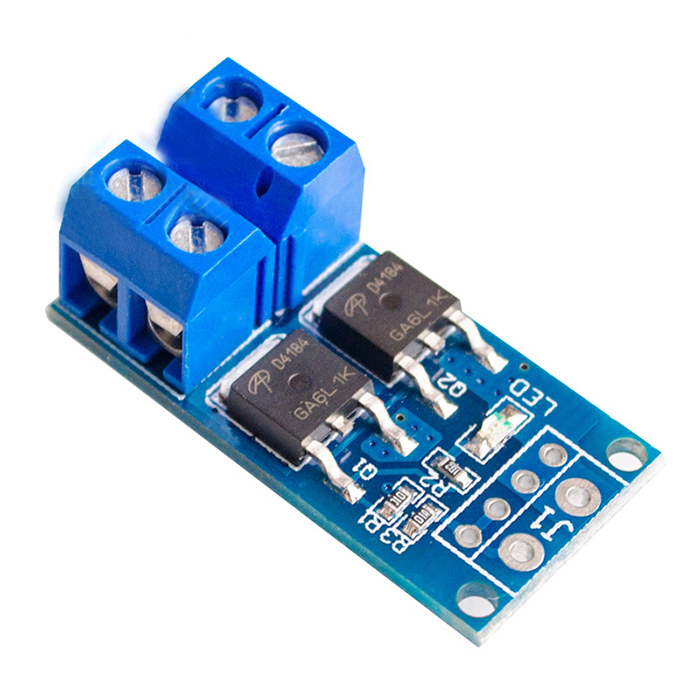

1. Dual MOS parallel active output, lower internal resistance, larger current, strong power, 15A, 400W at normal temperature, meeting the needs of most equipment;

2. Wide voltage, support PWM;

3. Easily control the high-power equipment.

Product parameters and applications:

1: Working voltage: DC 5V--36V;

2: Trigger signal source: digital high and low level (DC3.3V--20V), can be connected to single-chip IO port, PLC interface, DC power supply, etc., can be connected to PWM signal, signal frequency 0--20KHZ perfect support.

3: Output capacity: DC DC 5V--36V, continuous current 15A at normal temperature, power 400W! The maximum current can reach 30A under auxiliary cooling conditions.

4: Application: The output can control high-power equipment, motor, bulb, LED strip, DC motor, micro pump, solenoid valve, etc. It can input PWM, control motor speed, brightness of lamp and so on.

5: Service life: unlimited switch; working temperature: -40-85 ° C; size: 3.4 * 1.7 * 1.2 cm
