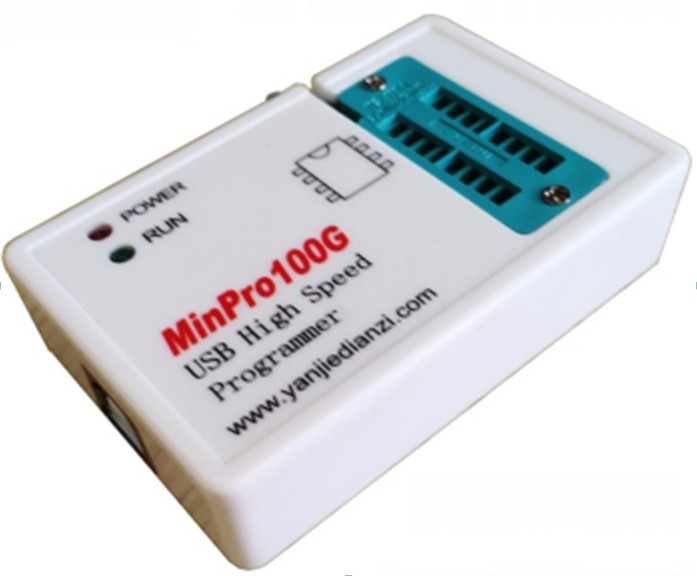

Minpro100G USB High Speed Programer
parameter:
1: Adopt enhanced E8051 core CPU;
2: Integrated USB2.0 transmission ensures the programming speed of the burner;
3: Support 25 SPI PLASH and 24 EEPROM chips;
4: Support 25 SPI FLASH chip automatic identification model;
5: Support data modification;
6: Support the specified address to burn;
7: Support batch burning mode, the batch is more worry-free;
8: Support large-capacity chips, supporting up to 512M chips;
9: Support Chinese simplified, Chinese traditional, English interface
10: Support XP WIN7 32/64 bit system;
Burning speed, we use GD25Q80 as the real test data, in order to ensure the fairness of the test, compare the same full data file on the same computer.
MinproI erase + burn + test Total time 20 seconds
CH341A Erase + Burn + Effect Total time 53 seconds
Burning speed far exceeds CH341A programmer
