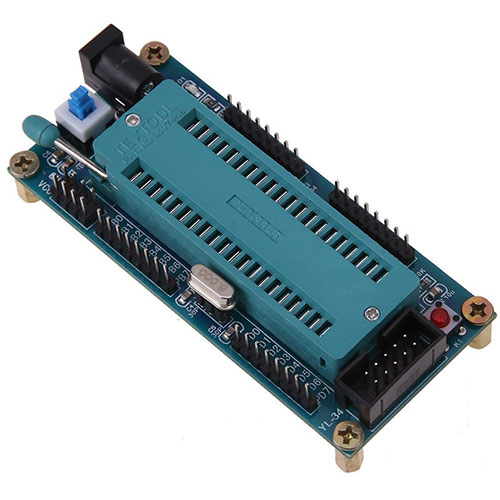

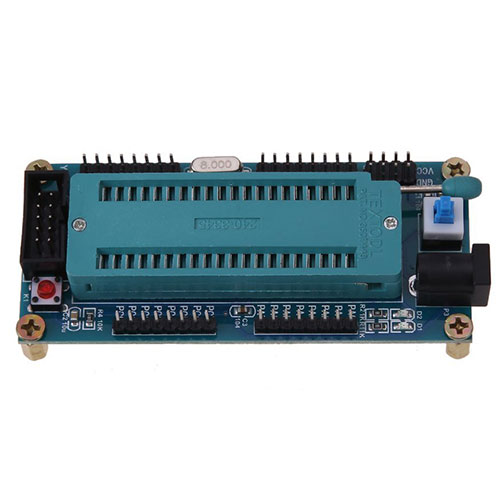

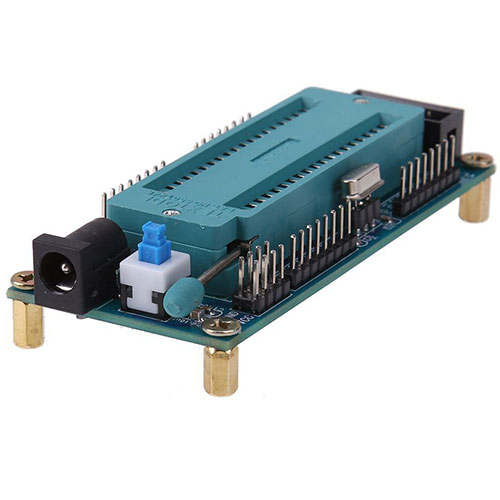

Minimum system board ATmega16, 32, 8535

product description
32 I / O pins all lead; Classic ATmega16 minimum system, eliminating the hassle of welding.
Crystal: Socket hole welding to facilitate buyers to replace the crystal, 8M crystal.
Support chip: ATmega16 / ATmega32 and pin compatible chip.
Power: Power adapter or external expansion pin power (does not support ISP download interface power)
DC-005 Power Block (support transposon 5.5 * 2.1mm).

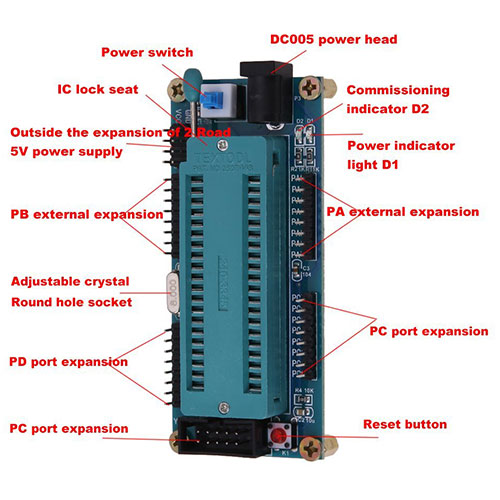

Features:
1. Expand 4-channel VCC, GND.
2. Reset: Power-on reset and reset button.
3. Power indicator (D1) and program run indicator (D2).
4. Standard ISP download interface.

specification:
PCB size: approx. 90 * 40 * 23mm / 3.54 * 1.57 * 0.9 "
Net weight: 46g
