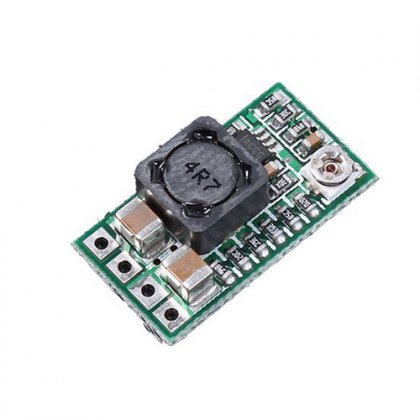

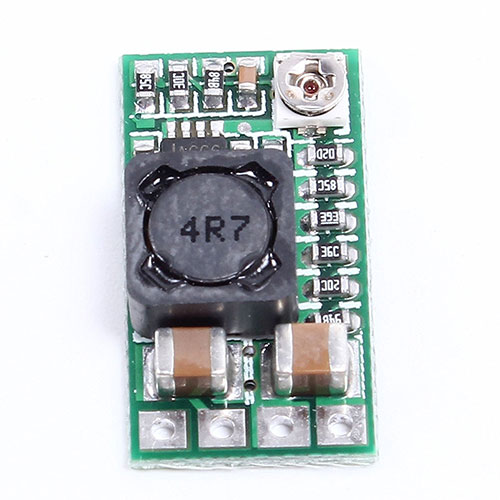

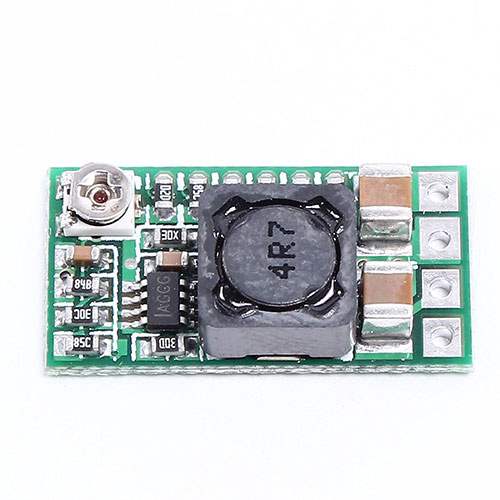

MINI Efficiency 97.5% ultra-small size DCDC buck module 424V12V24V to 5V3A For car

Product introduction: 1. Input voltage: DC 4.5-24V 2. Output voltage: adjustable integral, fixed output, the back of the output voltage can be selected 3. Adjustable range: 0.8-17V, fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V) 4. Output current: 3A (maximum), the actual test input 12V output 1.5A 5. Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A) 6. Switch Frequency: 500KHz 7. Output ripple: 20mV 12V to 5V 3A) 20m bandwidth 8. Working voltage: -40 degrees Celsius -85 degrees Celsius 9. Output over-voltage protection: None 10. Quiescent current: 0.85MA Load Regulation: ± 1% 12. Voltage regulation rate: ± 0.5% 13. Dynamic response speed: 5% 200uS 14. Output short circuit protection: yes 15. Input Conversion Protection: None 16. Start Control: Yes 17. Connection: welding 18. Input Method: Welding 19. Output Method: Welding / Pin 20. Welding pitch: 2.54mm
