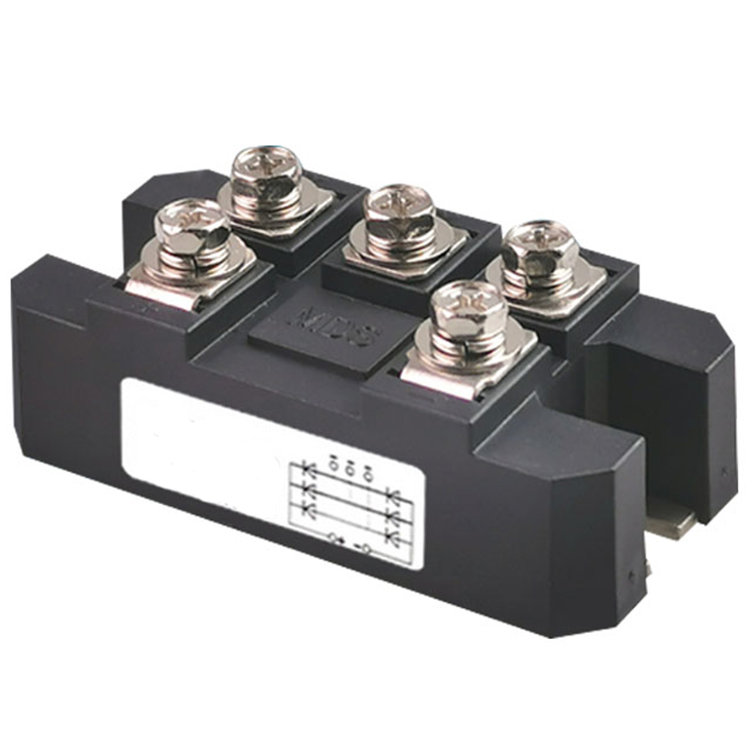

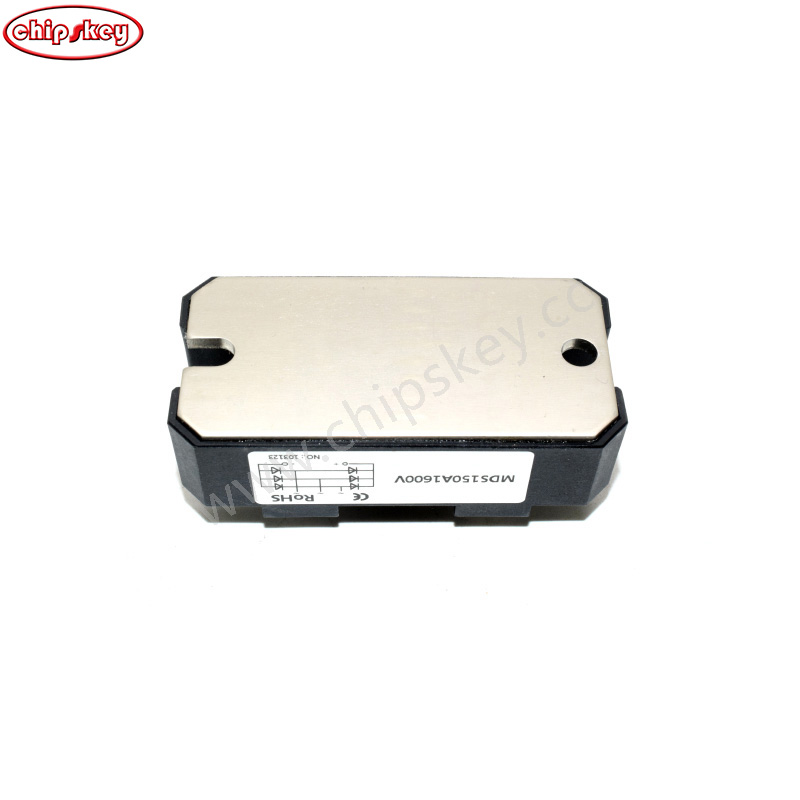

MDS150A1600V MDS150-16 Three-phase rectifier bridge
Product features:
● Chip and backplane electrical insulation, 2500V AC insulation
● DC power supply for instrument equipment
● Electrical drag and auxiliary current
● Excellent temperature characteristics and power cycling ability
● PWM frequency converter
● Pulse width modulation frequency converter
● DC motor excitation power supply
● Small size and light weight
● Battery charging DC power supply
● Inverter welding machine
● International standard packaging
● Switching power input rectification
The marked current of the rectifier bridge is the full wave peak current, not the actual current that operates for a long time.
When selecting models, sufficient margin should be left based on the working environment and conditions.
A. 2 times the residual current of resistive load, actual current (A) X 2=rectifier bridge device current (A)
B. Inductive load 6-7 times residual actual current (A) x7 (or 6)=rectifier bridge device current (A)
An additional heat sink is required for actual working currents above 5A, and suitable heat sinks and fan auxiliary heat dissipation are required for actual working currents above 40A
