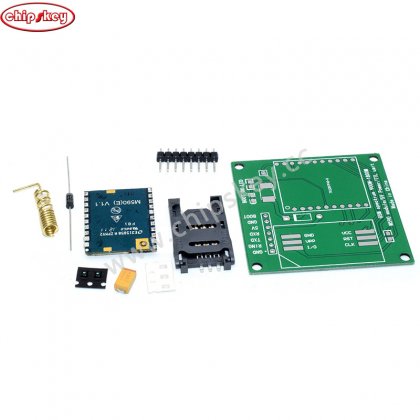

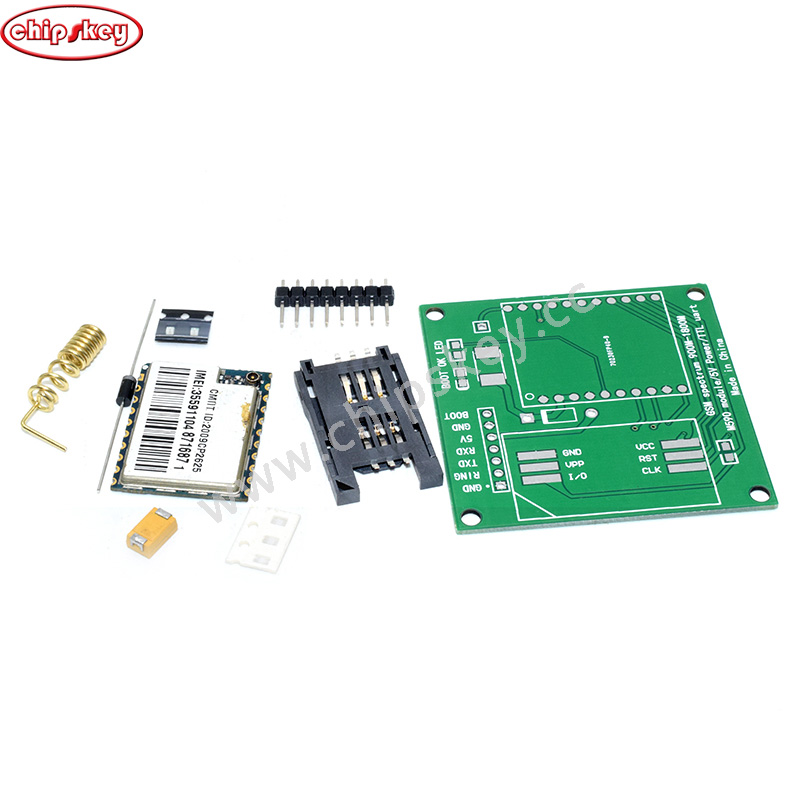

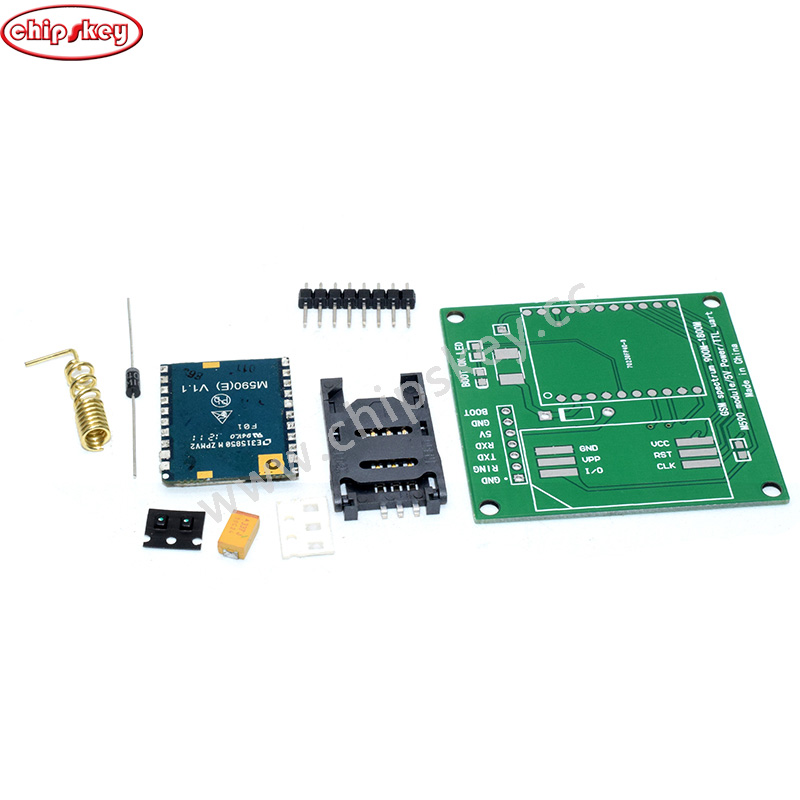

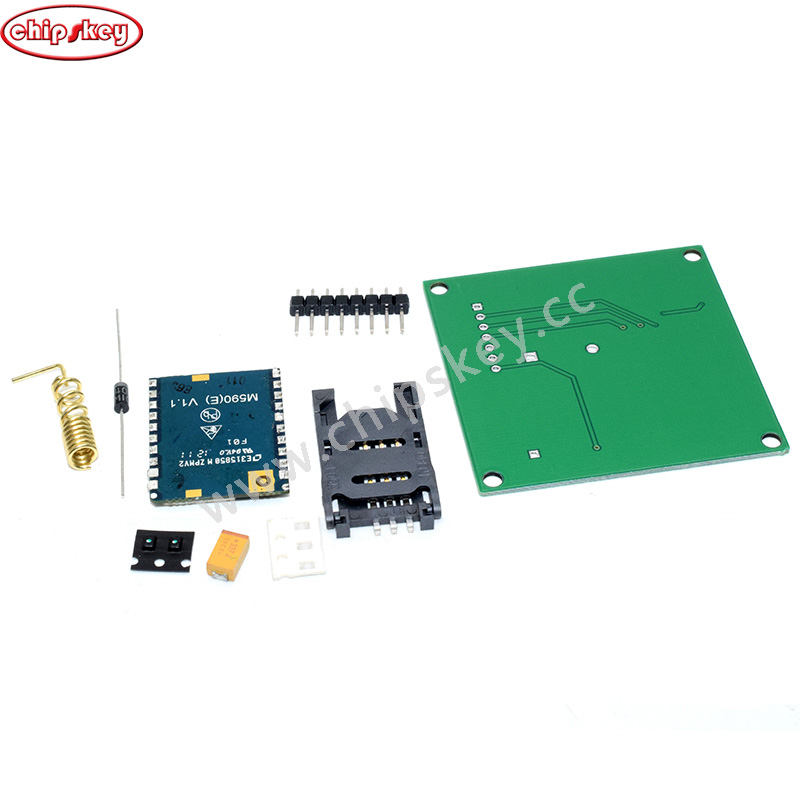

M590E GSM GPRS Function Module DIY Kits M590 GSM GPRS 900m-1800m SMS CPU MCU Test

Product Features 1. Dual-band: 900/1800 MHZ 2. GPRS multi-slot Class 10 3. GSM phase 2/2 + compliance 4. Category 4 (2 W) @ 900 MHz 5. Category 1 (1 W) @ 1800 MHz 6. RX Sensitivity: -107 dBm Compliant with 7.3 GPP Release 99 8. Control GSM 07.07, 07.05 with AT commands and Neoway boost AT command 10. Integrated TCP Clients and Servers, UDP, FTP, DNS 11. CMUX 3GPP TS 27.010 12. Supply Voltage: 3.5 to 4.3V (DC), Recommended 3.9V Package includes 1PCS M590E module product description Package includes 1PCS M590E module features 1. The module is a standard AT command set 2. Support 900M-1800M, GSM band 3. Can be connected: MCU TTL 4.GPRS Class 10: Max. 85.6 Kbit / s (DL) 5. Coding Scheme CS1~CS4 6. Mobile Station Class B 7. CSD / USSD 8. SMS: Text / PDU Specifications 1. Dual Frequency: 900/1800 MHZ 2. GPRS Multi-Slot Class 10 3 Class 4 (2 W) @ 900 MHz 5. Class 1 (1 W) @ 1800 MHz 6. RX Sensitivity: -107 dBm 7.3 GPP Release99 Standard 8. Via AT Command: GSM 07.07 , 07.05 and Neoway Enhanced AT Commands 9.27.007, 27.005 and ITU-T V.25 te
