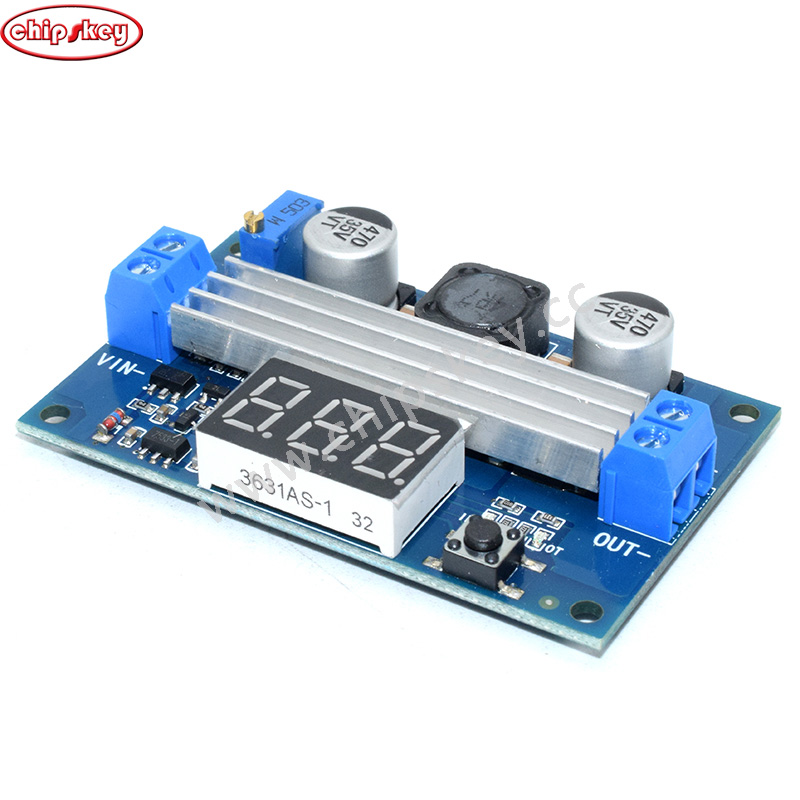

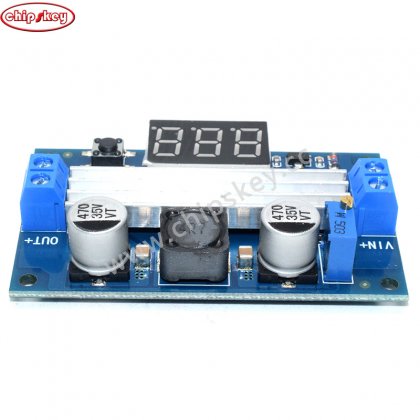

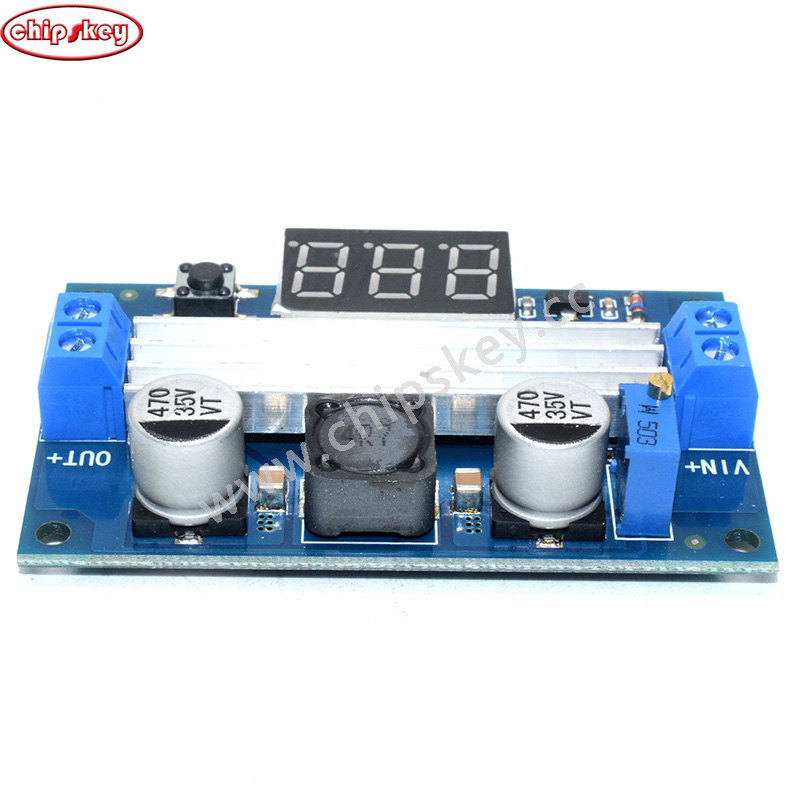

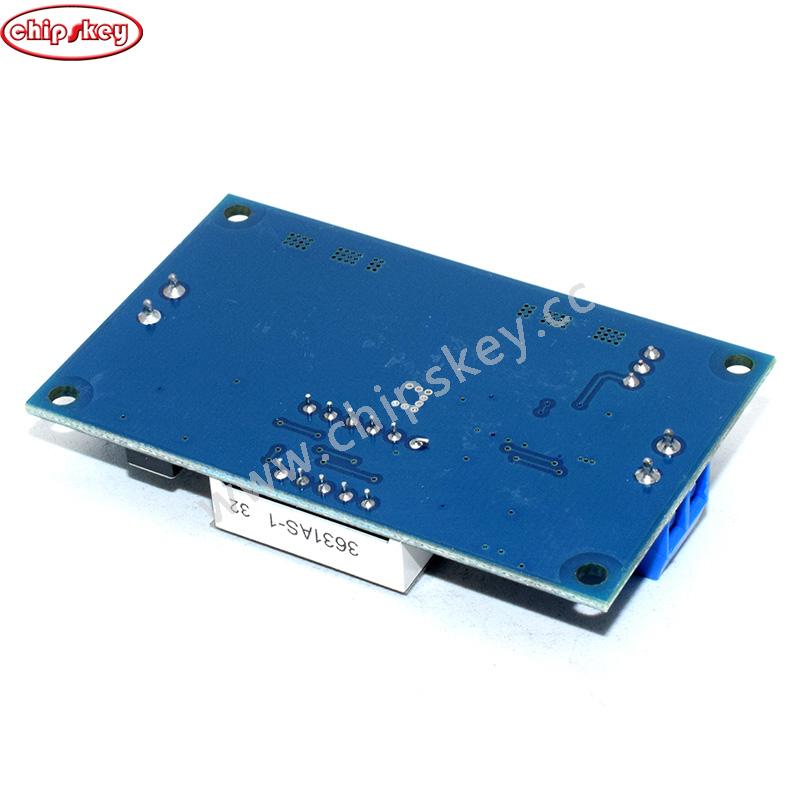

product description Weight: 28 g Color: As shown, Dimensions: 67.5mmx41.5mmx14mm / 2.66 "x1.63" x0.55 "(inch) (approx.) Performance parameters? 1. Input voltage: 3-35V DC: Input voltage Less than 4V, the on-board voltmeter does not work). 2. Input current: 9A (max). , 3. Output voltage: 3.5-35V DC (the board is the booster board, the output voltage> = input voltage). , 4. Output current: 6A (maximum). 5. Output power: 65W (when the input and output voltage is greater than 20V up to 100W). , 6. Conversion efficiency: 96% (highest). 7. Output ripple: 40mV (TYP). 8. On-board voltmeter range: 4-40V. 9. Error: +/- 0.1V. It is brand new, good quality and high performance.
